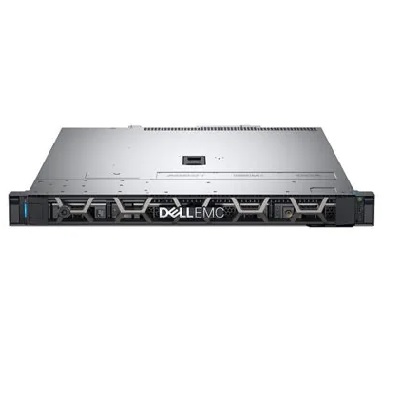

Dell Poweredge R240 E-2124

0 đ
    Mã sản phẩm: 1TB SATA 4x3,5 inch Cable

    Bảo hành: 36 tháng

  • CPU: Intel Xeon E-2124 Processor (8M Cache, 3.30 GHz)
  • RAM: 8GB 2666 DDR4 Ecc Unbuffered DIMMs
  • HDD/SSD: Dell 1TB 7.2K RPM SATA 6Gbps 3.5in Cabled Hard Drive
  • RAID: PERC S140
  • PCIe: 2 slots PCIe Gen 3.0 slots,iDRAC9
  • Network: On-Board Broadcom 5720 Dual Port 1Gb
  • Optical Drive: Option
  • Power Supply: 250W
  • Lượt xem: 1214
Số lượng

Máy chủ Dell EMC Poweredge R240 Cable

Form Factor:  Rack 1U

Processor: Intel® Xeon® E-2124 3.3GHz, 8M cache, 4C/4T, turbo (71W)

Memory: 8GB 2666 DDR4 Ecc Unbuffered DIMMs

Hard Drive: Dell 1TB 7.2K RPM SATA 6Gbps 3.5in Cabled Hard Drive

Chassis Support 4 x 3.5" cabled HDD

Raid Controller:Dell Controller PERC S140 Raid Onboard

Network Controller: On-Board Broadcom 5720 Dual Port 1Gb LOM

PCI-Express Slots: 2 x PCIe Gen 3.0 slots

Remote management : iDRAC9 Basic

Optical Drive:  Option

Power Supply: Single, Cabled Power Supply, 250W

Tech Specs & Customization ( Thông số kỹ thuật )

Processor

Up to one Intel® Xeon® E-2200 product family processor with up to 8 cores per processor

Up to one Intel® Pentium® G5420 processor up to 2 cores per processor

Up to one Intel® Core i3® 9100 processor up to 4 cores per processor

Up to one Intel® Celeron® G4930 processor up to 2 cores per processor

Operating System

Canonical® Ubuntu® Server LTS

Citrix® Hypervisor

Microsoft® Windows Server® LTSC with Hyper-V (2016 and 2019)

Red Hat® Enterprise Linux

SUSE® Linux Enterprise Server

VMware® ESXi®

Memory: DIMM Speed,Up to 2666MT/s

Memory Type UDIMMs

Memory Module Slots 4 DDR4 DIMM slots

Supports registered ECC DDR4 DIMMs only

Maximum RAM UDIMM 64GB

Storage

Front Bays

Up to 4 x 3.5 hot-plug SAS/ SATA/SSD

Up to 4 x 3.5 cabled SAS/ SATA/SSD

Up to 2 x 3.5 cabled SAS/SATA/ SSD

Max 56TB for 4 HDD configuration

Storage Controllers Internal Controllers PERC H330, H730p, HBA330

External Controllers 12 Gbps SAS HBA

Software RAID S140

Internal Boot Boot Optimized Storage Subsystem (BOSS):

2 x M.2 240GB (RAID 1 or No RAID)

1 x M.2 240GB (No RAID only)

Internal Dual SD Module (IDSDM):

2x microSD (16GB, 32GB or 64GB)

1x microSD (16GB, 32GB or 64GB)

Security

Cryptographically signed firmware

Silicon Root of Trust

Secure Boot

System Lockdown (requires OpenManage Enterprise)

Secure Erase

TPM 1.2/2.0, TCM 2.0 optional

Management

Embedded / At-the-Server

iDRAC9

iDRAC RESTful API with Redfish

iDRAC Direct

Consoles

OpenManage Enterprise

OpenManage Power Center

 Mobility

OpenManage Mobile

 Tools

Dell EMC RACADM CLI

Dell EMC Repository Manager

Dell EMC System Update

Dell EMC Server Update Utility

Dell EMC Update Catalogs

iDRAC Service Module

IPMI Tool

OpenManage Server Administrator

OpenManage Storage Services

OpenManage Integrations

BMC Truesight

Microsoft® System Center

RedHat® Ansible® Modules

VMware® vCenter

OpenManage Connections

IBM Tivoli® Netcool/OMNIbus

IBM Tivoli® Network Manager IP Edition

Micro Focus® Operations Manager I

Nagios® Core

Nagios® XI

Power Supplies: 250W Bronze,450W Platinumi

Ports: Network Options 2 x 1GbE LOM

Front Ports:1 x Dedicated iDRAC direct micro-USB,1 x USB 2.0

Rear Ports: 1 x Serial,2 x USB 3.0,1 x VGA

Internal Ports:1 x USB 3.0

Slots Pcle 2 x PCIe Gen3 slots

Bezel Optional security bezel

Form Factor 1U Rack Server

Dimensions & Weight

Height 42.8mm (17.1")

Width 434.0mm (17.1")

Depth 595.6mm (23.5") (3.5” HHD config)

Weight 12.2kg (29.9lbs.)

Dimensions do not include bezel
