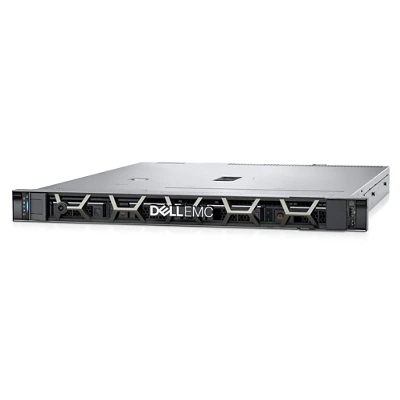

Máy chủ Dell EMC Poweredge R250 Hotplug
Form Factor: Rack 1U
Processor: Intel Xeon E-2334 3.4GHz 4C/8T 8M Cache Turbo (65W)
Memory: Dell 8GB 3200 DDR4 Ecc Unbuffered DIMMs
HDD/SSD: 2TB 7.2K RPM NLSAS 12Gbps 512n 3.5'' Hot-plug
Up to 4 x 3.5-inch hot swap SAS/SATA (HDD/SSD) max 30.72 TB
Raid Controller: PERC H755
PCI-Express Slots: 2 x PCIe Gen4 slots
Network Controller: BC5720DP 1GbE LOM
Remote management : iDRAC9 Express
Optical Drive: DVD-RW
Power Supply: Single, Cabled Power Supply, 450W
Tech Specs & Customization
Processor
One Intel® Xeon® E-2300 series processor with up to 8 cores per processor
One Intel® Xeon® Pentium® processor with up to 2 cores per processor
Operating System
Canonical® Ubuntu® Server LTS
Citrix® Hypervisor
Microsoft® Windows Server® with Hyper-V
RedHat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®
Chipset Intel® C256 series
Memory DIMM Speed
Up to 3200 MT/s
Note: For Pentium® processor, maximum memory speed supported is 2666 MT/s
Memory Type UDIMM
Memory Module Slots 4 DDR4 DIMM slots
Maximum RAM UDIMM 128 GB
Storage
Front Bays:
Up to 4 x 3.5-inch hot swap SAS/SATA (HDD/SSD) max 30.72 TB
Up to 2 x 3.5-inch cabled SAS/SATA (HDD/SSD) max 15.36 TB
Storage Controllers
Internal Controllers: PERC H345, PERC H755, HBA355i
External Controllers: HBA355e, 12 Gbps SAS Ext. HBA
Software RAID: S150
Internal Boot:
Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs 240 GB or 480 GB
Internal Dual SD Module or USB
Security
Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Management
Embedded / At-the-Server:
iDRAC9
iDRAC Service Module
iDRAC Direct
Consoles:
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage SupportAssist plugin
OpenManage Update Manager plugin
Mobility: OpenManage Mobile
Tools: iDRAC RESTful API with Redfish
IPMI
RACADM CLI
System Update Utility
Update Catalogs
OpenManage Integrations:
BMC Truesight
Microsoft® System Center
RedHat® Ansible® Modules
VMware® vCenter and vRealize Operations Manager
OpenManage connections:
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager
Nagios® Core
Nagios® XI
Power Supplies
450 W AC/100-240 V Bronze
450 W AC/100-240 V Platinum
Ports
Network Options 2 x 1 GbE LOM
Front Ports
1 x Dedicated iDRAC Direct micro-USB
1 x USB 2.0
Rear Ports
1 x USB 2.0
1 x USB 3.0
1 x VGA
Internal Ports 1 x USB 3.0 (optional)
Slots
PCIe 2 x PCIe Gen4 slots
Bezel Optional security bezel
Form Factor 1U rack server
Dimensions & Weight
Height 42.8 mm (1.68 inch)
Width 482 mm (18.97 inch)
Depth
598.64 mm (23.56 inch) with bezel
585 mm (23.02 inch) without bezel
Weight 12.48 kg (27.51 lbs.)
