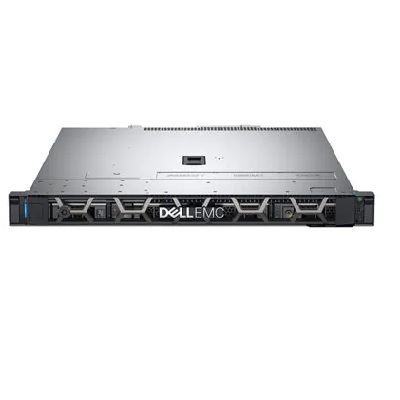

Máy chủ Dell EMC Poweredge R340
Form Factor: Rack 1U
Processor: Intel Xeon E-2236 3.3GHz, 8M cache, 4C/8T, turbo (71W)
Memory: 16GB 2666 DDR4 Ecc Unbuffered DIMMs
Hard Drive: 600GB 10K RPM SAS 12Gbps 512n 2.5in Hot-Plug Hard Drive
Up to 4 x 3.5 hot-plug SAS, SATA, or SSD
Raid Controller: Dell Perc H330 SAS 12Gbp/s Adapter PCI-Express
PCI-Express Slots: 2 x PCIe Gen 3.0 slots
Network Controller: On-Board Broadcom 5720 Dual Port 1Gb LOM
Remote management : iDRAC9 Basic
Optical Drive: DVD +/-RW, SATA
Power Supply: Single, Hot-plug Power Supply (1+0), 350
Tech Specs & Customization ( thông số kỹ thuật )
Processor
1 processor from the following:
Intel® Xeon® E-2100 product family,
Intel Pentium®,
Intel Core i3®,
Intel Celeron®
Bezel Optional security bezel
Chassis Form Factor: Rack (1U)
Dimensions:
Chassis width: 434.00mm (17.08")
Chassis depth: 595.63mm (23.45") (3.5" HHD config)
Chassis depth: 544.836mm (21.45") (2.5" HHD config)
Note: These dimensions do not include: bezel, redundant PSU
Chassis weight: 13.6 kg (29.98 lb)
Memory:
DIMM Speed: Up to 2666MT/s DDR4 DIMMs
Memory Type: UDIMMs
Memory Module Slots: 4
Maximum RAM: Up to 64GB
Hard Drive
Up to 8 x 2.5 hot-plug SAS, SATA, or SSD
Up to 4 x 3.5 hot-plug SAS, SATA, or SSD
Management Embedded / At-the-Server
iDRAC9 with Lifecycle Controller
iDRAC Direct
iDRAC RESTful API with Redfish
Consoles
OpenManage Enterprise
OpenManage Essentials
OpenManage Power Center
Mobility OpenManage Mobile
Tools
iDRAC Service Module
OpenManage Server Administrator
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs
Dell EMC RACADM CLI
IPMI Tool
OpenManage Integrations
Microsoft® System Center
VMware® vCenter™
BMC Truesight (available from BMC)
Red Hat Ansible
OpenManage Connections
Nagios Core & Nagios XI
Micro Focus Operations Manager i (OMi)
IBM Tivoli Netcool/OMNIbus
Network Controller 2 x 1GbE LOM Network Interface Controller (NIC) ports
Power Supplies
Single or dual 350W or 550W hot-plug redundant power supplies
Storage Controllers
Internal controllers: PERC H730P, H330, HBA330 (non-RAID)
Software RAID: PERC S140
External HBAs: 12Gbps SAS HBA (non-RAID)
Boot Optimized Storage Subsystem: 2x M.2 240GB (RAID 1 or No RAID), 1x M.2 240GB (No RAID only)
I/O Expansion Slots 2 x PCIe Gen 3.0 slots
One x8 slot low-profile, half length with x4 slot width
One x16 slot low-profile/full-height, half length with x8 bandwith
Ports
Front:
• One USB 2.0
• Micro USB 2.0 compliant for iDRAC Direct
Rear:
• Two USB 3.0
• VGA
• Serial connector
Internal port:
• One USB 3.0
Supported Operating Systems
Microsoft Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi
Citrix® XenServer®
Ubuntu Server
Certify XenServer
Rack Support ReadyRails™ sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks).
Recommended Support
Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region
Intel Xeon Silver 4410Y 2.0Ghz 12C/24T 30M Cache
Dell 32Gb 4800 DDR5 ECC RDIMM
Dell 1.2TB 10K RPM SAS 12Gbps 512n 2.5 in Hot-plug
1 CPU, Up to 2 PCIe slots
Dual Port 1GbE LOM, Broadcom 5720 Quad Port 1GbE , OCP
PERC H755 8Gb NV Cache
DVD Ext
Dual, Hot-plug, Redundant Power Supply (1+1), 800W
