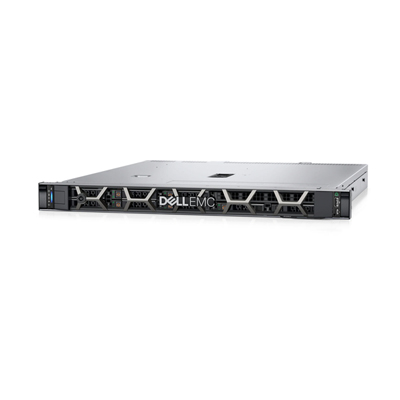

Máy chủ Dell EMC Poweredge R350 8x2.5"
Form Factor: Rack 1U
Processor: Intel Xeon E-2314 2.8GHz 4C/4T 8M Cache Turbo (65W)
Memory: Dell 16GB 3200 DDR4 Ecc Unbuffered DIMMs
Hard Drive: Dell 600GB 10K RPM SAS 12Gbps 512n 2.5in Hot-plug Hard Drive
Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 128 TB
Raid Controller: PERC H755
PCI-Express Slots: 3 x PCIe Gen4 slots
Network Controller: BC5720DP 1GbE LOM
Remote management : iDRAC9 Express
Optical Drive: DVD Ext
Power Supply: Single, Hot-Plug, Power Supply (1+0), 600W
Tech Specs & Customization
Processor
One Intel® Xeon® E-2300 series processors with up to 8 cores per processor
One Intel® Pentium® processor with up to 2 cores per processor
Operating System
Canonical® Ubuntu® Server LTS
Citrix® Hypervisor
Microsoft® Windows Server® with Hyper-V
RedHat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®i
Chipset Intel® C256 series chipset
Memory DIMM Speed
Up to 3200 MT/s
Note: For Pentium processor, maximum memory speed supported is 2666 MT/s
Memory Type UDIMM
Memory Module Slots 4 DDR4 DIMM slot
Maximum RAM UDIMM 128 GB
Storage
Front Bays
Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB
Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 128 TB
Storage Controllers
Internal Controllers PERC H345, PERC H755, HBA355i, PERC H345f, PERC H755f, HBA355f
External Controllers HBA355e
Software RAID S150
Internal Boot
Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs
Internal Dual SD Module or USB
Security
Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Management
Embedded / At-the-Server
iDRAC9
iDRAC Service Module
iDRAC Direct
Consoles
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage SupportAssist plugin
OpenManage Update Manager plugin
Mobility OpenManage Mobile
Tools
iDRAC RESTful API with Redfish
IPMI
RACADM CLI
System Update Utility
Update Catalogs
OpenManage Integrations
BMC® Truesight
Microsoft® System Center
RedHat® Ansible® Modules
VMware® vCenter and vRealize Operations Manager
OpenManage connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager
Nagios® Core
Nagios® XI
Power Supplies 600 W Platinum AC/100 - 240 V
Ports Network Options 2 x 1GbE LOM
Front Ports
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0
Rear Ports
1 x USB 2.0
1 x USB 3.0
2 x Ethernet
1 x VGA
Internal Ports 1 x USB 3.0 (optional)
Slots PCIe 3 x PCIe Gen4 slots
Video Card 1 x VGA
Chassis
Fans Up to 4 fans with full redundancy
Bezel Optional LCD bezel or security bezel
Form Factor 1U rack server
Dimensions & Weight
Height: 42.8 mm (1.7 in.)
Width: 434.0 mm (17.09 in.)
Depth with Bezel: 570.23 mm (22.44 in.)
Depth without Bezel: 556.59 mm (21.90 in.)
Weight: Max 13.6 kg (29.98 lbs.)
Intel Xeon Silver 4410Y 2.0Ghz 12C/24T 30M Cache
Dell 32Gb 4800 DDR5 ECC RDIMM
Dell 1.2TB 10K RPM SAS 12Gbps 512n 2.5 in Hot-plug
1 CPU, Up to 2 PCIe slots
Dual Port 1GbE LOM, Broadcom 5720 Quad Port 1GbE , OCP
PERC H755 8Gb NV Cache
DVD Ext
Dual, Hot-plug, Redundant Power Supply (1+1), 800W
