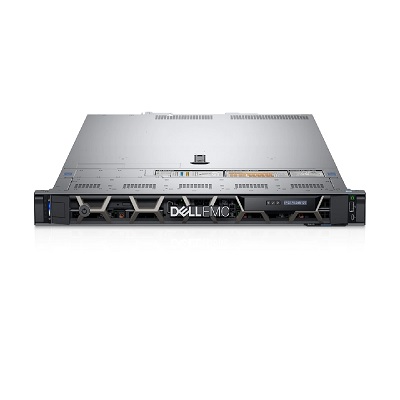

Máy chủ Dell EMC Poweredge R440 - 8 SFF
Form Factor: 1U rackmount
Processor: Intel Xeon Silver 4210R Processor (13.75M Cache, 2.40 GHz)
Memory: Dell 16GB RDIMM, 2666MT/s, Dual Rank,CK
Hard Drive: Dell 600GB 10K RPM SAS 12Gbps 512n 2.5in Hot-plug Hard Drive
Support Up to 8 x 2.5” HDD: SAS, SATA, nearline SAS SSD: SAS, SATA
Raid Controller: Dell Perc H330 SAS 12Gbp/s Adapter PCI-Express
PCI-Express Slots: Up to 2 x Gen 3 slots all x16
Network Controller: On-Board Broadcom 5720 Dual Port 1Gb LOM
Remote management : iDRAC9 Enterprise with Lifecycle Controller
Optical Drive: DVD+/-RW, SATA, Internal
Power Supply: Single, Hot-plug, Redundant Power Supply (0+1), 550W
PowerEdge R440 Tech Specs & Customization
Processor Up to two 2nd Generation Intel® Xeon® Scalable processors with up to 22 cores per processor
Bezel Optional LCD bezel or security bezel
Dimensions & Weight
Height 42.8mm (1.68")
Width 482mm (18.97")
Depth 728.2mm (28.7")
Weight 17.6kg (38.9lbs.)
Drive Bays Front drive bays: Up to 10 x 2.5” SAS/SATA (HDD/SSD) with up to 4 NVMe SSD max 48TB or up to 4 x 3.5 SAS/SATA HDD max 56TB
Optional DVD-ROM, DVD+RW
Embedded Management
IPMI 2.0 compliant
iDRAC9 with Lifecycle Controller (Basic, Express, Enterprise)
Quick Sync 2 wireless module optional
Fans Hot plug power supplies with full redundancy option
I/O and Ports Network Options
2 x 1GbE LOM
(optional) LOM Riser 2 x 1GE,
2 x 10GbE SFP, or
2 x 10GbE BaseT
Front Ports
1 x Dedicated iDRAC direct USB
1 x USB 2.0
1 x USB 3.0 (optional)
1 x Video
Rear Ports
1 x Dedicated iDRAC network port
1 x Serial
2 x USB 3.0
1 x Video
Memory DIMM Speed Up to 2666 MT/s
Memory Type RDIMM LRDIMM
Memory Module Slots 16 DDR4 DIMM slots
Supports registered ECC DDR4 DIMMs only
Maximum RAM RDIMM 512GB LRDIMM 1TB
Management Embedded / At-the-Server
iDRAC9 with Lifecycle Controller
iDRAC Direct
iDRAC RESTful API with Redfish
Quick Sync 2 BLE/wireless module
Consoles OpenManage Enterprise
OpenManage Power Center
Mobility OpenManage Mobile
Tools
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs
OpenManage Server Administrator
iDRAC Service Module
OpenManage Integrations
BMC Truesight
Microsoft® System Center
Red Hat® Ansible® Modules
VMware® vCenter
OpenManage Connections
IBM Tivoli® Netcool/OMNIbus
Micro Focus® Operations Manager I
Nagios® Core
Nagios® XI
OpenManage Software
OpenManage Enterprise
OpenManage Essentials
OpenManage Mobile
OpenManage Power Center
Power Supplies Bronze 450W, Platinum 550W
Recommended Support
Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.
Security
Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires OpenManage Enterprise)
TPM 1.2/2.0, TCM 2.0 optional
Supported Operating Systems
Canonical® Ubuntu® Server LTS
Citrix® Hypervisor ®
Microsoft® Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®
Storage Controllers Internal Controllers PERC H330, H730P, H740P, HBA330
Software RAID S140
External HBAs (non-RAID) 12Gbps SAS HBA
External PERC (RAID) H840
Boot Optimized Storage Subsystem
HWRAID 2 x M.2 SSDs 120GB or 240GB
Rack Support ReadyRails™ sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks).
450W Bronze
550W Platinum
Hot plug power supplies with full redundancy option,Up to six fans
Form Factor 1U Rack Server
Slots Pcie 2 x Gen 3 slots all x16
Intel® Xeon® Silver 4410Y 2G, 12C/24T, 16GT/s, 30M Cache, Turbo, HT (150W)
DDR5 32GB RDIMM, 4800MT/s Dual Rank
Options
Broadcom 57414 Dual Port 10GbE BASE-T Adapter, OCP NIC 3.0. Broadcom 5720 Dual Port 1GbE Optional LOM
PERC H755 with rear load Brackets
2x 1100W (100-240Vac) Hot-Plug Power Supply
