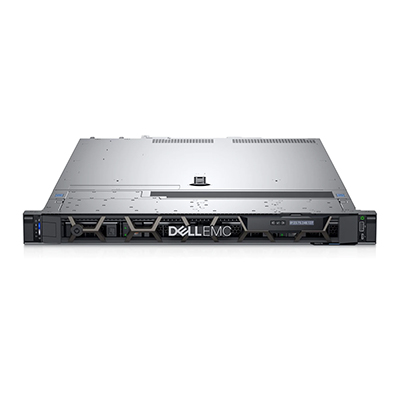

Máy chủ Dell Poweredge R6515 – 4LFF
Form Factor: 1U rackmount
Processor: AMD EPYC Rome 7232P 8C/16T 3.1G 32M
Memory: Dell 16GB RDIMM, 3200MT/s, Dual Rank,CK
Hard Drive: 2TB 7.2K RPM NLSAS 12Gbps 512n 3.5'' Hot-plug Hard Drive
Support Up to 4 x 3.5” HDD: SAS, SATA, nearline SAS SSD: SAS, SATA
Raid Controller: PERC H730P RAID Controller, 2Gb NV Cache, Minicard
PCI-Express Slots: 1 x Gen3 slot (1 x16),1 x Gen4 slot (1 x16)
Network Controller: Broadcom 5720 QP 1Gb Network Daughter Card
Remote management : DRAC X5 Enterprise
Optical Drive: DVD+/-RW
Power Supply: Dual, Hot-plug, Redundant Power Supply (1+1), 550W
Tech Specs & Customization:
Processor One 2nd or 3rd Generation AMD EPYCTM Processor with up to 64 cores
Operating System
Canonical® Ubuntu® Server LTS
Citrix® Hypervisor®
Microsoft® Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®
Memory: DIMM Speed ,Up to 3200MT/s
Memory Type: RDIMM ,LDIMM
Memory Module Slots: 16 DDR4 RDIMM/LRDIMM slots
Maximum RAM: RDIMM 1TB,LRDIMM 2TB
Storage
Front Bays
Up to 4 x 3.5" hot plug SAS/SATA (HDD)
Up to 10 x 2.5" hot plug SAS/SATA/NVMe
Up to 8 x 2.5" hot plug SAS/SATA
Storage Controllers
Internal Controllers: PERC HBA330, H330, H730P, H740P
External Controllers (RAID) H840, 12Gbps SAS HBA
Internal Boot
Boot Optimized Storage Subsystem (BOSS): HWRAID 2 x M.2 SATA SSDs
Internal Dual SD Module
Security
Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown
TPM 1.2/2.0, TCM 2.0 optional
AMD Secure Memory Encryption (SME)
AMD Secure Encrypted Virtualization (SEV)
Management
Embedded / At-the-Server
iDRAC9
iDRAC RESTful API with Redfish
iDRAC Direct
Quick Sync 2 BLE/wireless module
Consoles
OpenManage Enterprise
OpenManage Enterprise Power Manager
Mobility
OpenManage Mobile
Tools
Dell EMC RACADM CLI
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs
iDRAC Service Module
IPMI Tool
OpenManage Server Administrator
OpenManage Storage Services
OpenManage Integrations
BMC Truesight
Microsoft® System Center
RedHat® Ansible® Modules
VMware® vCenter™
OpenManage Connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager I
Nagios® Core
Nagios® XI
Power Supplies: 550W Platinum
Ports:
Network Options
2 x 1GbE
2 x 10GbE BT
2 x 10GbE SFP+
2 x 25GbE SFP28
Front Ports :
1 x Dedicated iDRAC direct micro-USB
1 x USB 2.0
1 x Video
Rear Ports
2 x 1GbE
1 x Dedicated iDRAC network port
1 x Serial
2 x USB 3.0
1 x Video
Slots
PCIe Up to 2: 1 x Gen3 slot (1 x16) ; 1 x Gen4 slot (1 x16)
Bezel Optional LCD bezel or security bezel
Form Factor 1U Rack Server
Dimensions & Weight
Height 42.8mm (1.68")
Width 434.0mm (17.09")
Depth 657.25mm (25.88")
Weight 16.75 kg (36.93lb)
Rack Support : ReadyRails™ sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks)
Intel Xeon Silver 4410Y 2.0Ghz 12C/24T 30M Cache
Dell 32Gb 4800 DDR5 ECC RDIMM
Dell 1.2TB 10K RPM SAS 12Gbps 512n 2.5 in Hot-plug
1 CPU, Up to 2 PCIe slots
Dual Port 1GbE LOM, Broadcom 5720 Quad Port 1GbE , OCP
PERC H755 8Gb NV Cache
DVD Ext
Dual, Hot-plug, Redundant Power Supply (1+1), 800W
