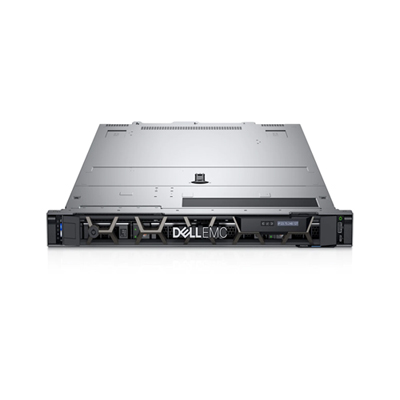

Máy chủ Dell EMC Poweredge R6525 4x3.5in
Form Factor: 2U rackmount
Processor: AMD EPYC Rome 7282 16C/32T 2.8G 64M
Memory: Dell 16GB RDIMM 3200MT/s, Dual Rank,CK
Hard Drive: 2TB 7.2K RPM NLSAS 12Gbps 512n 3.5'' Hot-plug Hard Drive
Raid Controller: PERC H755
PCI-Express Slots: 3 x Gen4 slots (x16) at 16GT/s
Network Controller: OCP x16 Mezz 3.0 + 2 x 1GE LOM
Remote management : iDRAC X5 Enterprise
Optical Drive: No DVD
Power Supply: Dual, Hot-plug, Redundant Power Supply (1+1), 800W
Tech Specs & Customization
Processor: Up to two 2nd or 3rd Generation AMD EPYCTM Processors with up to 64 cores per processor
Operating System
Canonical® Ubuntu® Server LTS
Citrix® Hypervisor®
Microsoft® Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®
Accelerators: Up to 2 single-wide GPUs
Memory: DIMM Speed ; Up to 3200MT/s
Memory Type: RDIMM ; LRDIMM
Memory Module Slots: 32 DDR4 RDIMM slots
Maximum RAM: RDIMM 2 TB; LRDIMM 4 TB
Storage
Front Bays
Up to 4 x 3.5” hot plug SAS/SATA (HDD)
Up to 8 x 2.5” hot plug SAS/SATA (HDD)
Up to 12 x 2.5” (10 Front + 2 Rear) hot plug SAS/SATA/NVMe
Storage Controllers:
PERC 10.5 – HBA345, H345, H745, H840, 12G SAS HBA PERC 11
H755, H755N Chipset SATA/SW RAID (S150): Yes
External Controllers (RAID): H840, 12Gbps SAS HBA
Internal Boot
Boot Optimized Storage Subsystem (BOSS): HWRAID 2 x M.2 SSDs
Internal Dual SD Module
Security
Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown
TPM 1.2/2.0, TCM 2.0 optional
AMD Secure Memory Encryption (SME)
AMD Secure Encrypted Virtualization (SEV)
Management
Embedded / At-the-Server
iDRAC9
iDRAC RESTful API with Redfish
iDRAC Direct
Quick Sync 2 BLE/wireless module
Consoles
OpenManage Enterprise
OpenManage Enterprise Power Manager
Mobility
OpenManage Mobile
Tools
Dell EMC RACADM CLI
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs
iDRAC Service Module
IPMI Tool
OpenManage Server Administrator
OpenManage Storage Services
OpenManage Integrations
BMC Truesight
Microsoft® System Center
RedHat® Ansible® Modules
VMware® vCenter™
OpenManage Connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager I
Nagios® Core
Nagios® XI
Power Supplies: 800W Platinum; 1400W Platinum; 1100W Titanium
Ports
Network Options: 2 x 1GE LOM + OCP x16 Mezz 3.0
Front Ports: 1 x Dedicated iDRAC direct micro-USB; 1 x USB 2.0; 1 x VGA
Rear Ports
1 x Dedicated iDRAC network port
1 x Serial (optional)
1 x USB 3.0
1 x VGA
1 x USB 2.0
Internal Ports: 1 x USB 3.0 (optional)
Slots
PCIe: 3 x Gen4 slots (x16) at 16GT/s
Bezel: Optional LCD bezel or security bezel
Form Factor: 1U Rack Server
Dimensions & Weight
Height: 44.45mm (1.75")
Width: 434.0mm (17.1")
Depth: 736.54mm (29")
Weight: 21.5kg (47.39lbs)
Rack Support
ReadyRails™ sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks).
Recommended Support
Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.
Intel® Xeon® Silver 4410Y 2G, 12C/24T, 16GT/s, 30M Cache, Turbo, HT (150W)
DDR5 32GB RDIMM, 4800MT/s Dual Rank
Options
Broadcom 57414 Dual Port 10GbE BASE-T Adapter, OCP NIC 3.0. Broadcom 5720 Dual Port 1GbE Optional LOM
PERC H755 with rear load Brackets
2x 1100W (100-240Vac) Hot-Plug Power Supply
