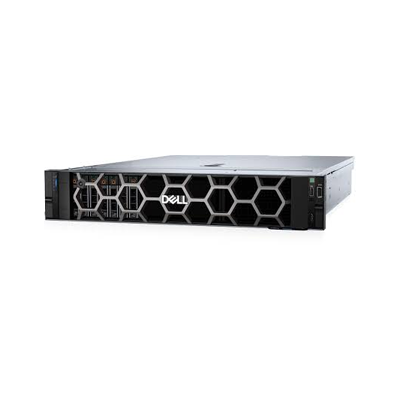

Dell Poweredge R760xs Silver 4510

98,000,000 đ
    Mã sản phẩm: Dell 4TB SAS 8 x 3,5 inch H755

    Bảo hành: 36 Tháng

  • CPU: Intel Xeon Silver 4510 2.4Ghz 12C/24T 30M Cache
  • RAM: Dell 16Gb 4800 DDR5 ECC RDIMM
  • HDD/SSD: Dell 4TB 7.2K RPM NLSAS 12Gbps 512n 3.5in Hot-plug
  • RAID: PERC H755 8Gb NV Cache
  • PCIe: 1 CPU Configuration: Up to 4 PCIe slots
  • Network: Broadcom 5720 Dual 1GbE LOM, Broadcom 57414 Dual Port 10/25GbE SFP28
  • Optical Drive: DVD Ext
  • Power Supply: Dual, Hot-plug, Redundant Power Supply (1+1), 800W
  • Lượt xem: 903
Số lượng

Máy chủ Dell Poweredge R760xs (8x3.5in)

- Form Factor: 2U Rackmount

- Processor: Intel Xeon Silver 4510  2.4Ghz 12C/24T 30M Cache

- Memory: Dell 16Gb 4800 DDR5 ECC RDIMM

- Hard Drive: Dell 4TB 7.2K RPM NLSAS 12Gbps 512n 3.5in Hot-plug

- Raid Controller: PERC H755 8Gb NV Cache

- Network Controller: Broadcom 5720 Dual 1GbE LOM, Broadcom 57414 Dual Port 10/25GbE SFP28

- Management : iDRAC9 Enterprise

- Optical Drive: DVD Ext

- Power Supply: Dual, Hot-plug, Redundant Power Supply (1+1), 800W

Bộ vi xử lý CPU / PROCESSOR:

    x

đồng ý chọn cấu hình

Feature

Technical Specifications



Processor

Up to two 4th Generation Intel Xeon Scalable processor with up to 32 cores per processor

Memory

• 16 DDR5 DIMM slots, supports RDIMM 1 TB max, speeds up to 4800 MT/s, supports registered ECC DDR5 DIMMs only

Storage controllers

• Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i

• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs or USB

• External HBA (non-RAID): HBA355e; Software RAID: S160

GPU Options

2 x 75 W SW, LP

Drive Bays

Front bays:

• 0 drive bay

• Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 160 TB

• Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB

• Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB

• Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 121.6 TB

• Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/ SSD) max 244.48 TB

Rear bays:

• Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB (supported only with 12 x 3.5-inch SAS/SATA HDD/SSD configuration)

Hot swap Redundant Power Supplies

• 1800 W Titanium 200—240 VAC or 240 HVDC

• 1400 W Platinum 100—240 VAC or 240 HVDC

• 1100 W Titanium 100—240 VAC or 240 HVDC

• 1100 W LVDC -48 — (-60) VDC

• 800 W Platinum 100—240 VAC or 240 HVDC,

• 700 W Titanium 200—240 VAC or 240 HVDC

• 600 W Platinum 100—240 VAC or 240 HVDC

Cooling Options

• Air cooling

Fans

• Standard (STD) fans/High performance Silver (HPR) fans/ High performance Gold (VHP) fans, Up to 6 hot swappable fans

Dimensions and Weight

• Height – 86.8 mm (3.41 inches)

• Width – 482 mm (18.97 inches)

• Depth – 707.78 mm (27.85 inches) – without bezel

721.62 mm (28.4 inches) – with bezel

• Weight – Max 28.6 kg (63.0 lbs.)

Form Factor

2U rack server

Embedded Management

• iDRAC9

• iDRAC Direct

• iDRAC RESTful API with Redfish

• iDRAC Service Module

• Quick Sync 2 wireless module

Bezel

Optional LCD bezel or security bezel

OpenManage Software

• CloudIQ for PowerEdge plug in

• OpenManage Enterprise

• OpenManage Enterprise Integration for VMware vCenter

• OpenManage Integration for Microsoft System Center

• OpenManage Integration with Windows Admin Center

• OpenManage Power Manager plugin

• OpenManage Service plugin

• OpenManage Update Manager plugin

Mobility

OpenManage Mobile

OpenManage Integrations

• BMC Truesight

• Microsoft System Center

• OpenManage Integration with ServiceNow

• Red Hat Ansible Modules

• Terraform Providers

• VMware vCenter and vRealize Operations Manager

Security

• Cryptographically signed firmware

• Data at Rest Encryption (SEDs with local or external key mgmt)

• Secure Boot

• Secure Erase

• Secured Component Verification (Hardware integrity check)

• Silicon Root of Trust

• System Lockdown (requires iDRAC9 Enterprise or Datacenter)

• TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Embedded NIC

2 x 1 GbE LOM

Network options

1 x OCP card 3.0 (optional)

Ports

Front Ports:

• 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA Internal Ports: 1 x USB 3.0 (optional)

Rear Ports

• 1 x Dedicated iDRAC Ethernet port, 1 x USB 2.0, 1 x USB 3.0, 1 x VGA, 1 x Serial (optional)

PCIe

• 1 CPU Configuration: Up to 4 PCIe slots (2 x8 Gen5, 1 x16 Gen4, 1 x8 Gen4)

• 2 CPU configuration: Up to 6 PCIe slots (2 x16 Gen5, 3 x16 Gen4, 1 x8 Gen4)

Operating System and Hypervisors

• Microsoft Windows Server with Hyper-V

• Red Hat Enterprise Linux

• SUSE Linux Enterprise Server

• VMware ESXi

• Canonical Ubuntu Server LTS

For specifications and interoperability details, see Dell.com/OSsupport.

OEM-ready

version available

From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information, visit Dell.com ->

Solutions -> OEM Solutions.
