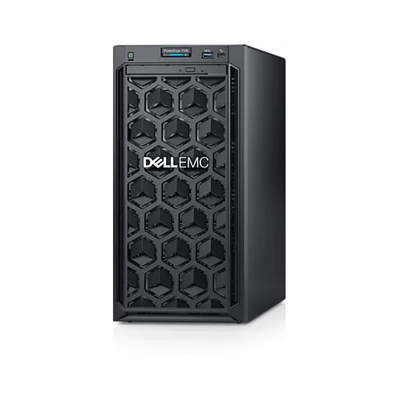

Máy chủ Dell Poweredge T140
Form Factor: Tower
Processor: Intel® Xeon® E-2234 3.6GHz, 8M cache, 4C/8T, turbo (71W)
Memory: Dell 8GB 3200 DDR4 Ecc Unbuffered DIMMs
Hard Drive:1TB 7.2K RPM SATA 6Gbps 3.5in Hard Drive
Support 4 x 3.5" cabled HDD
Raid Controller: PERC S140
PCI-Express Slots: 4 PCIe Slots
Network Controller: On-Board Dual Port 1Gb LOM
Remote management : iDRAC9 Basic
Optical Drive: DVD+/-RW
Power Supply: Single Cabled 365W PSU
Tech Specs & Customization
Processor
Up to one Intel® Xeon® E-2200 product family processor with up to 6 cores per processor
Up to one Intel® Pentium® G5420 processor up to 2 cores per processor
Up to one Intel® Core i3® 9100 processor up to 4 cores per processor
Up to one Intel® Celeron® G4930 processor up to 2 cores per processor
Operating System
Canonical® Ubuntu® Server LTS
Citrix® Hypervisor ®
Microsoft® Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®
Chipset: Intel C246
Memory: DIMM Speed up to 2666MT/s I Memory Type: UDIMM
Memory Module Slots: 4 I Maximum RAM : DIMM 64G
Storage: Front Bays I Up to 4 x 3.5" SAS/SATA (HDD), max 16TB
Storage Controllers: Internal Controllers PERC H330, H730p, HBA330
External Controllers (non-RAID): 12 Gbps SAS HBA
Software RAID: S140
Internal BOOT :Boot Optimized Storage Subsystem (BOSS):
2 x M.2 240GB (RAID 1 or No RAID)
1 x M.2 240GB (No RAID only)
Security
Cryptographically signed firmware
Silicon Root of Trust
Secure Boot
Secure Erase
System Lockdown (requires OpenManage Enterprise)
TPM 1.2/2.0, TCM 2.0 optional
Management
Embedded / At-the-Server
iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
Consoles
OpenManage Enterprise
OpenManage Power Center
Mobility:OpenManage Mobile
Tools: Dell EMC RACADM CLI
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs
iDRAC Service Module
IPMI Tool
OpenManage Server Administrator
OpenManage Storage Services
OpenManage Integrations
BMC Truesight
Microsoft® System Center
RedHat® Ansible® Modules
VMware® vCenter
OpenManage Connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager I
Nagios® Core
Nagios® XI
Power Supplies: 365W Gold
Ports
Front panel: 1x USB 3.0, 1x iDRAC micro USB 2.0 management port
Back panel: 2x USB 3.0, 4x USB 2.0, VGA, serial connector
Internal USB: 1x internal USB 3.0
Slots: PCIe 1 x Gen3 slot (x16) I 2 x Gen3 slots (x8) I 1 x Gen3 slot (x1)
Video Card: 1 x VGA
Chassis: Tower server
Form Factor: Tower Server
Dimensions & Weight
Height: 360.0mm (14.2")
Width: 175.0mm (6.9")
Depth: 454.0mm (17.9")
Weight : 11.8kg (26.1lbs.)
Intel Xeon Silver 4410Y 2.0Ghz 12C/24T 30M Cache
Dell 16GB 4800 DDR5 ECC RDIMM
Dell 2TB 7.2K RPM NLSAS 12Gbps 512n 3.5 Hot-plug
six PCIe slots; iDRAC9 Ent
Dual 1GbE LOM
PERC H755
Options
Redundant Power Supply (1+1), 1400W
