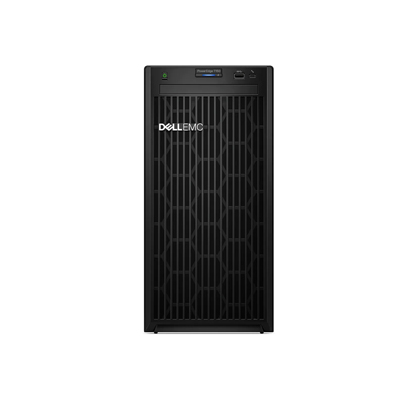

Dell Poweredge T150 E-2334

Feature Technical Specifications
Processor One Intel Xeon E-2300 series processor with up to 8 cores or one Intel Pentium processor with up to 2 cores
Memory:

• Four DDR4 DIMM slots, supports UDIMM 128 GB max, speeds up to 3200 MT/s
• Supports unregistered ECC DDR4 DIMMs only
NOTE: For Pentium processor, maximum memory speed supported is 2666 MT/s

Storage controllers

• Internal controllers (RAID): PERC H755, PERC H345, HBA355i, S150
• Internal Boot: USB, Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs
• External HBAs (non-RAID): HBA355e
Drive bays 4 x 3.5-inch cabled SAS/SATA (HDD/SSDs) max 30.72 TB

Power supplies

• 300W Bronze 100-240 VAC, cabled
• 400W Platinum 100-240 VAC, cabled (available only from Dec’21)
Fans One cabled fan

Dimensions

• Height: 360 mm (14.17 inches)
• Width: 175 mm (6.88 inches)
• Depth: 453.75 mm (17.86 inches) with bezel
Form Factor 4U mini tower server

Embedded management

• iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish
• iDRAC Service Module
Bezel Security bezel

OpenManage Software

• OpenManage Enterprise
• OpenManage Power Manager plugin
• OpenManage SupportAssist plugin
• OpenManage Update Manager plugin
Mobility OpenManage Mobile
Integrations and Connections OpenManage Integrations OpenManage Connections
• BMC Truesight
• Microsoft System Center
• Red Hat Ansible Modules
• VMware vCenter and vRealize Operations Manager
• IBM Tivoli Netcool/OMNIbus
• IBM Tivoli Network Manager IP Edition
• Micro Focus Operations Manager
• Nagios Core
• Nagios XI

Security

• Cryptographically signed firmware
• Secure Boot
• Secure Erase
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC 2 x 1 GbE LOM
Ports Front Ports
• 1 x iDRAC Direct (Micro-AB USB) port
• 1 x USB 3.0
Rear Ports
• 5 x USB 2.0
• 1 x iDRAC ethernet port
• 1 x USB 3.0
• 1 x Serial port
• 1 x VGA
Internal Ports
• 1 x USB 3.0 (optional)
PCIe 4 PCIe slots:
• 1x16 Gen4 (x16 connector) full height, half length
• 1x4 Gen4 (x8 connector) full height, half length
• 1x4 Gen3 (x8 connector) full height, half length
• 1x1 Gen3 (x1 connector) full height, half length

Operating System and Hypervisors

• Canonical Ubuntu Server LTS
• Citrix Hypervisor
• Microsoft Windows Server with Hyper-V
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi
