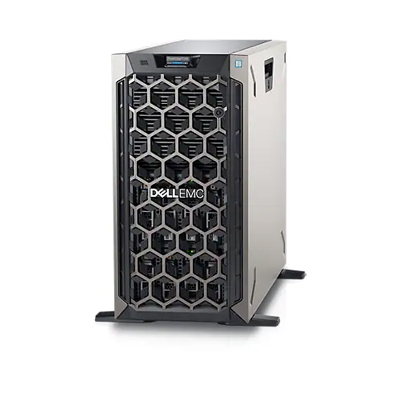

Máy chủ Dell EMC Poweredge T340
Form Factor: Tower
Processor: Intel® Xeon® E-2246G 3.6GHz, 12M cache, 6C/12T, turbo (80W)
Memory: Dell 8GB 2666 DDR4 Ecc Unbuffered DIMMs
Hard Drive: 2TB 7.2K RPM NLSAS 12Gbps 512n 3.5in Hot-Plug Hard Drive
Up to 8 x 3.5" hot-pluggable bays (also supports 2.5” HDD in 3.5” hybrid drive carrier)
Raid Controller: Dell Perc H330 SAS 12Gbp/s Adapter PCI-Express
PCI-Express Slots: 4 PCIe Slots
Network Controller: On-Board Broadcom 5720 Dual Port 1Gb LOM
Remote management : iDRAC9 Basic
Optical Drive: DVD+/-RW, SATA, Internal
Power Supply: Single, Hot-plug Power Supply 1+0, 495W
Tech Specs & Customization
Processor
Up to one Intel® Xeon® E-2200 product family processor with up to 8 cores per processor
Up to one Intel® Pentium® G5420 processor up to 2 cores per processor
Up to one Intel® Core i3® 9100 processor up to 4 cores per processor
Up to one Intel® Celeron® G4930 processor up to 2 cores per processor
Operating System
Canonical® Ubuntu® LTS
Citrix® Hypervisor®
Microsoft® Windows Server® LTSC with Hyper-V (2016 and 2019)
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®
Memory:
DIMM Speed I Up to 2666MT/s
Memory Type: UDIMM
Memory Module Slots
4 x DDR4 DIMM slots
Supports registered ECC DDR4 DIMMs only
Maximum RAM: UDIMM 64GB
Storage
Front Bays
Up to 8 x 3.5" SAS/SATA (HDD/SSD), max 112TB
(Also supports up to 8 x 2.5" SAS/SATA (HDD) in 3.5" hybrid drive carrier)
Storage Controllers: Internal Controllers PERC H330, H730p, HBA330
External Controllers (non-RAID): 12 Gbps SAS HBA
Software RAID: S140
Internal BOOT
Boot Optimized Storage Subsystem (BOSS):
2 x M.2 240GB (RAID 1 or No RAID)
1 x M.2 240GB (No RAID only)
Internal Dual SD Module
Security
Cryptographically signed firmware
Silicon Root of Trust
Secure Boot
Secure Erase
System Lockdown (requires OpenManage Enterprise)
TPM 1.2/2.0, TCM 2.0 optional
Management
Embedded / At-the-Server
iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
Consoles
OpenManage Enterprise
OpenManage Power Center
Mobility OpenManage Mobile
Tools
Dell EMC RACADM CLI
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs
iDRAC Service Module
IPMI Tool
OpenManage Server Administrator
OpenManage Storage Services
OpenManage Integrations
BM Truesight
Microsoft® System Center
RedHat® Ansible® Modules
VMware® vCenter
OpenManage Connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager I
Nagios® Core
Nagios® XI
Power Supplies
495W Platinum (Hot plug redundant)
350W Bronze (Cable)
Hot plug power supplies with full redundancy option
Ports
Network options :2 X 1GbE
Front ports :1 x Dedicated iDRAC micro-USB,1 x USB 3.0
Rear ports: 1 x Serial, 4 x USB 2.0, 2 x USB 3.0, 1 x VGA
Internal Ports: 1 x USB 3.0
Slots
PCIe: 1 x Gen3 slot (x16), 2 x Gen3 slots (x8), 1 x Gen3 slot (x1)
Video Card: 1 x VGA
Bezel: Optional LCD or security bezel
Form Factor: Tower Server
Dimensions & Weight
Height : 430.3mm (16.9")
Width: 218.0mm (8.6")
Depth: 603.0mm (23.7")
Weight: 26kg (55.67lbs.)
Intel Xeon Silver 4410Y 2.0Ghz 12C/24T 30M Cache
Dell 16GB 4800 DDR5 ECC RDIMM
Dell 2TB 7.2K RPM NLSAS 12Gbps 512n 3.5 Hot-plug
six PCIe slots; iDRAC9 Ent
Dual 1GbE LOM
PERC H755
Options
Redundant Power Supply (1+1), 1400W
