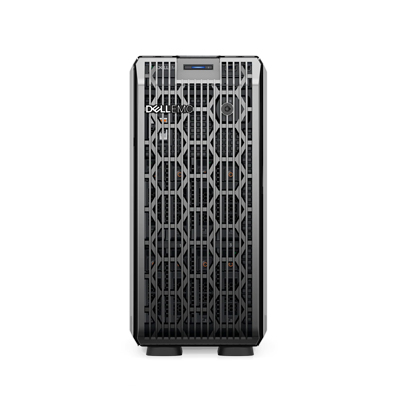

Dell Poweredge T350 E-2324G

Technical Specifications
Processor One Intel Xeon E-2300 Series processor with up to 8 cores or one Intel Pentium processor with up to 2 cores
Memory • 4 DDR4 DIMM slots, supports UDIMM 128 GB max, speeds up to 3200 MT/s
• Supports unregistered ECC DDR4 DIMMs only
Note: For Pentium processor, maximum memory speed supported is 2666 MT/s
Storage controllers • Internal Controllers (RAID): PERC H755, PERC H345, HBA355i, S150
• Internal Boot: Internal Dual SD Module, internal USB 3.0, or Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x
M.2 SSDs
• External HBAs (non-RAID): HBA355e
Drive Bays Front bays:
• Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB
• Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB
Note: Supports 2.5-inch drive in 3.5-inch hybrid drive carrier.
Power Supplies • 450W Bronze 100-240 VAC, cabled
• 600W Platinum 100-240 VAC or 240 HVDC, hot swap redundant
Cooling Options Air cooling
Fans • One cabled fan
Dimensions • Height – 382.5 mm (15.06 inches)
• Width – 175 mm (6.89 inches)
• Depth – 581.12 mm (22.88 inches) with bezel
Form Factor 4.5U tower server
Embedded Management • iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish
• iDRAC Service Manual
Bezel Optional security bezel
OpenManage Software • OpenManage Enterprise
• OpenManage Power Manager plugin
• OpenManage SupportAssist plugin
• OpenManage Update Manager plugin
Mobility OpenManage Mobile
Integrations and Connections OpenManage Integrations
• BMC Truesight
• Microsoft System Center
• Red Hat Ansible Modules
• VMware vCenter and vRealize Operations Manager
OpenManage Connections
• IBM Tivoli Netcool/OMNIbus
• IBM Tivoli Network Manager IP Edition
• Micro Focus Operations Manager
• Nagios Core
• Nagios XI
Security • Cryptographically signed firmware
• Secure Boot
• Secure Erase
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC 2 x 1 GbE LOM
GPU Options Not supported
Ports Front Ports
• 1 x iDRAC Direct (Micro-AB USB) port
• 1 x USB 3.0
Rear Ports
• 5 x USB 2.0
• 1 x iDRAC ethernet port
• 1 x USB 3.0
• 1 x VGA
• 1 x Serial
Internal Ports
• 1 x USB 3.0 (optional)
PCIe 4 PCIe slots
• 1 x16 Gen4 (x16 connector) full height, full length
• 1 x4 Gen4 (x8 connector) full height, half length
• 1 x4 Gen3 (x8 connector) full height, half length
• 1 x1 Gen3 (x1 connector) full height, half length
Operating System and Hypervisors • Canonical Ubuntu Server LTS
• Citrix Hypervisor
• Microsoft Windows Server with Hyper-V
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi (support only from Dec’21)
