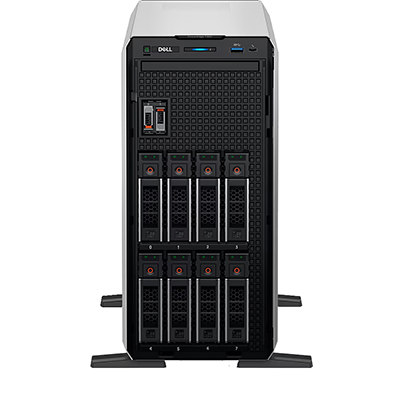

Dell Poweredge T360 E-2434

Feature

Technical Specifications

Processor

One Intel® Xeon® 6300 series or one Intel® Xeon® E-2400 series processor with up to eight cores or

One Intel® Pentium® G7400/ G7400T processor with up to two cores

Memory

• 4 DDR5 DIMM slots, supports UDIMM up to 32 GB per DIMM, speeds up to 4400 MT/s

• Supports unregistered ECC DDR5 DIMMs only

Storage controllers

• Internal: HBA355i Adapter, PERC H355 Adapter, PERC H755 Adapter

• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs drives, or USB

• External HBA (non-RAID): HBA355e Adpt

• Software RAID: S160

Drive Bays

Front bays:

• Up to 4 x 3.5-inch SATA HDD/SSD, max 64 TB

• Up to 8 x 3.5-inch SAS/SATA HDD/SSD, max 128 TB

• Up to 8 x 2.5-inch SAS/SATA HDD/SSD with 3.5-inch to 2.5-inch adapter, max 61.44 TB

Power Supplies

• 450 W Platinum 100-240 V AC, cabled

• 600 W Platinum 100-240 V AC or 600 W 240 V DC, hot swap redundant

• 700 W Titanium 200-240 V AC or 700 W 240 V DC, hot swap redundant

Cooling Options

Air cooling

Fans

• One Standard (STD) fan and one optional High performance (HPR) fan

• Up to two cabled fans

Dimensions

• Height – 382.5 mm (15.06 inches)

• Width – 175 mm (6.89 inches)

• Depth – 579.72 mm (22.82 inches) with bezel

Form Factor

4.5U tower server

Embedded Management

• iDRAC9

• iDRAC Direct

• iDRAC RESTful API with Redfish

• iDRAC Service Manual

Bezel

Security bezel or Optional Filter bezel

OpenManage Software

• OpenManage Enterprise

• OpenManage Power Manager plugin

• OpenManage Service plugin

• OpenManage Update Manager plugin

• CloudIQ for PowerEdge plugin

• OpenManage Enterprise Integration for VMware vCenter

• OpenManage Integration for Microsoft System Center

• OpenManage Integration with Windows Admin Center

Mobility

OpenManage Mobile

OpenManage Integrations

• BMC Truesight

• Microsoft System Center

• OpenManage Integration with ServiceNow

• Red Hat Ansible Modules

• Terraform Providers

• VMware vCenter and vRealize Operations Manager

Security

• Cryptographically signed firmware

• Data at Rest Encryption (SEDs with local or external key mgmt)

• Secure Boot

• Secured Component Verification (Hardware integrity check)

• Secure Erase

• Secured-core server

• Silicon Root of Trust

• System Lockdown (requires iDRAC9 Enterprise or Datacenter)

• TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Embedded NIC

2 x 1 GbE LOM

GPU Options

1 x 60 W SW GPU

Ports

Front Ports

• 1 x iDRAC Direct (Micro-AB USB) port

• 1 x USB 3.2 Gen1

Rear Ports

• 3 x USB 2.0

• 3 x USB 3.2 Gen1

• 1 x Dedicated iDRAC Ethernet port

• 1 x Serial

• 1 x VGA

• 2 x Ethernet ports

Internal Ports

• 1 x USB 3.2 Gen1

PCIe

Up to four PCIe slots

• Slot 1: x8 Gen4 Full height, half length

• Slot 2: x16 Gen5 Full height, half length

• Slot 3: x1 Gen4 Full height, half length

• Slot 4: x8 Gen4 Full height, half length

Operating System and Hypervisors

• Canonical Ubuntu Server LTS

• Microsoft Windows Server with Hyper-V

• Red Hat Enterprise Linux

• SUSE Linux Enterprise Server

• VMware ESXi

For specifications and interoperability details, see Dell.com/OSsupport.

OEM-ready version available

From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information, visit Dell.com -> Solutions -> OEM Solutions
