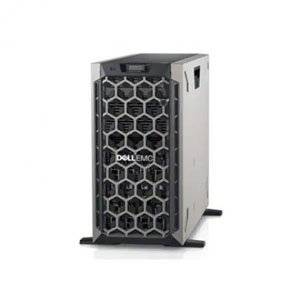

Máy chủ Dell EMC Poweredge T440 – 8x3,5 inch LFF
Form Factor: Tower
Processor: Intel Xeon Silver 4210R Processor (10C/20T 13.75M Cache, 2.40 GHz)
Memory: 16GB RDIMM 3200MT/s Dual Rank CK
Hard Drive: 2TB 7.2K RPM NLSAS 12Gbps 512n 3.5'' Hot-plug Hard Drive
Support Up to 8 x 3.5” HDD: SAS, SATA, nearline SAS SSD: SAS, SATA
Raid Controller: PERC H330 Mini/Adapter RAID Controllers
PCI-Express Slots: Up to 5 PCIe Gen3 slots
Network Controller: On-Board Broadcom 5720 Dual Port 1Gb LOM
Remote management : iDRAC9 Basic
Optical Drive: DVD+/-RW, SATA, Internal
Power Supply: Single, Hot-plug, Redundant Power Supply (0+1), 495W
Overview Services Tech Specs ( Thông số kỹ thuật )
Processor:Up to two 2nd Generation Intel® Xeon® Scalable processors, up to 28 cores per processor
Operating System
Canonical® Ubuntu® Server LTS
Citrix® Hypervisor ®
Microsoft® Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®
Accelerators: Up to one NVIDIA Quadro P4000 (APOS/Customer kit only)
Memory: DIMM Speed,Up to 2666 MT/s
Memory Type: RDIMM,LRDIMM
Memory Module Slots: 16 DDR4 DIMM slots
Supports registered ECC DDR4 DIMMs only
Maximum RAM: RDIMM 512GB, LRDIMM 1TB5
Storage: Front Bays
Up to 8 x 3.5" SAS/SATA (HDD/SSD) max 112TB
Up to 16 x 2.5" SAS/SATA (HDD/SSD) max 123TB
Storage Controllers: Internal Controllers PERC H330, H730P, H740P, HBA330
External Controllers RAID: H840, 12Gbps SAS HBA
Software RAID: S140
Internal Boot: Boot Optimized Storage Subsystem (BOSS):
HW RAID 2 x M.2 SSDs 240GB or 480GB
Internal Dual SD Module
Management: Embedded / At-the-Server,iDRAC9,iDRAC Direct,iDRAC RESTful API with Redfish
Consoles: OpenManage Enterprise,OpenManage Power Center
Mobility: OpenManage Mobile
Tools
Dell EMC RACADM CLI
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs
iDRAC Service Module
IPMI Tool: OpenManage Server Administrator,OpenManage Storage Services
OpenManage Integrations
BMC® Truesight
Microsoft® System Center
RedHat® Ansible® Modules
VMware® vCenter
OpenManage Connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network manager IP Edition
Micro Focus® Operations Manager I
Nagios® Core
Nagios® XI
Power Supplies : 450W Gold,495W Platinum,750W Platinum,1100W Platinum
Up to 2 hot plugs fans with full redundancy
Ports:
Network Options:2 x 1GbE LOM (optional) LOM Riser 2 x 1GbE, or 2 x 10GbE SFP, or 2 x 10GbE BaseT
Front Ports
1 x Dedicated iDRAC direct USB
1 x USB 2.0
1 x USB 3.0 (optional)
1 x Video
Rear Ports
1 x Dedicated iDRAC network port
1 x Serial
2 x USB 3.0
1 x Video
Slots: PCIe: 2 x Gen3 slots (x 4),2 x Gen3 slots (x 8),1 x Gen3 slot (x16),Bezel Optional LCD bezel or security bezel
Form Factor : 5U Tower or Rack Server
Dimensions & Weight
Width: 218.0mm (8.6") (base width), 304.5mm (12.0”) (with foot)
Depth : 594.82mm (23.4"), Weight 29.3Kg (64.6lbs.) 8-drive bay chassis
Intel Xeon Silver 4410Y 2.0Ghz 12C/24T 30M Cache
Dell 16GB 4800 DDR5 ECC RDIMM
Dell 2TB 7.2K RPM NLSAS 12Gbps 512n 3.5 Hot-plug
six PCIe slots; iDRAC9 Ent
Dual 1GbE LOM
PERC H755
Options
Redundant Power Supply (1+1), 1400W
