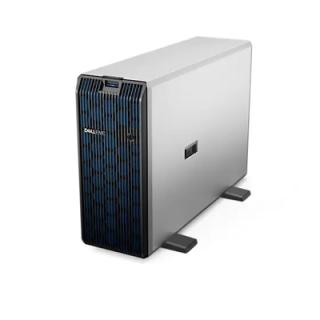

Dell Poweredge T550 Silver 4310

Liên hệ đ
    Mã sản phẩm: 1.2TB 10K 16x2,5 inch H755

    Bảo hành: 36 Tháng

  • CPU: Intel Xeon Silver 4310 2.1Ghz 12C/24T 18M Cache Turbo HT (120W)
  • RAM: 16GB RDIMM 3200MT/s Dual Rank
  • HDD/SSD: 1.2TB 10K RPM SAS 12Gbps 512n 2.5in Hot-plug
  • RAID: PERC H755
  • PCIe: 5 x PCIe Gen4 slots + 1 x PCIe Gen3 slot
  • Network: 2 x 1 GbE LOM
  • Optical Drive: DVD+/-RW
  • Power Supply: Redundant Power Supply (0+1), 1100W
  • Lượt xem: 2600
Số lượng

Máy chủ Dell EMC Poweredege T550

Processor: Intel Xeon Silver 4310 2.1Ghz 12C/24T 18M Cache Turbo HT (120W)

Memory: 16GB RDIMM 3200MT/s Dual Rank

Hard Drive: 1.2TB 10K RPM SAS 12Gbps 512n 2.5in Hot-plug

Support 16 x 2.5" HotPlug

Raid Controller: PERC H755

PCI-Express Slots: 5 x PCIe Gen4 slots + 1 x PCIe Gen3 slot

Network Controller: 2 x 1 GbE LOM

Remote management: iDRAC9 Ent

Optical Drive: DVD+/-RW

Power Supply: Redundant Power Supply (0+1), 1100W

Bộ vi xử lý CPU / PROCESSOR:

    x

Bộ nhớ RAM / MEMORY:

    x

Ổ đĩa cứng SAS:

x Tray khi chọn option sas
    x

Tech Specs & Customization
Processor:
Up to two 3rd Generation Intel® Xeon® Scalable processors with up to 32 cores per processor

Operating System:
Canonical® Ubuntu® Server LTS
Citrix® Hypervisor®
Microsoft® Windows Server® with Hyper-V
RedHat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®

Chipset: Intel C620 series chipset

Accelerators: Up to two double wide 300 W NVIDIA A40 or five single wide 70 W NVIDIA T4 accelerators

Memory DIMM Speed Up to 3200 MT/s

Memory Type RDIMM

Memory Module Slots 16 DDR4 DIMM slots ; Maximum RAM RDIMM 1 TB

Storage:
Front Bays
Up to 8 x 2.5-inch SAS/SATA (HDD) max 120 TB
Up to 16 x 2.5-inch SAS/SATA (HDD) max 240 TB
Up to 24 x 2.5-inch SAS/SATA (HDD) max 360 TB
Up to 8 x 3.5-inch SAS/SATA (HDD/SAS) max 120 TB
Up to 8 x 3.5-inch SAS/SATA (HDD) + 8 x 2.5-inch NVMe (SSD) max 240 TB

Storage Controllers
Internal Controllers : PERC H345, PERC H755, PERC H755N, HBA355i
External Controllers : PERC H840, HBA355e

Software RAID: S150

Internal Boot
Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB
Internal Dual SD Module or Internal USB

Security:
Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Management:
Embedded / At-the-Server
iDRAC9
iDRAC Service Module
iDRAC Direct
Quick Sync 2 wireless module

Consoles:
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage SupportAssist plugin
OpenManage Update Manager plugin

Mobility: OpenManage Mobile

Tools
iDRAC RESTful API with Redfish
IPMI
RACADM CLI
System Update Utility
Update Catalogs

OpenManage Integrations
BMC® Truesight
Microsoft® System Center
RedHat® Ansible® Modules
VMware® vCenter and vRealize Operations Manager

OpenManage connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager
Nagios® Core
Nagios® XI

Power Supplies:
600W Platinum 100–240 VAC or 240 HVDC, hot swap redundant
800W Platinum 100–240 VAC or 240 HVDC, hot swap redundant
1100W Titanium 100–240 VAC or 240 HVDC or -48 V, hot swap redundant
1400W Platinum 100–240 VAC or 240 HVDC, hot swap redundant
2400W Platinum 100–240 VAC or 240 HVDC, hot swap redundant
Hot swap power supplies with full redundancy option
Up to 8 fans with full redundancy

Ports
Network Options: 2 x 1GbE LOM and OCP x16 Mezz 3.0 (optional)

Front Ports
1 x Dedicated iDRAC Direct micro-USB (optional)
1 x USB 2.0
1 x USB 3.0

Rear Ports
1 x USB 2.0
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 3.0
1 x Serial (optional)
2 x Ethernet
1 x VGA

Internal Ports : 1 x USB 3.0 (optional)

Slots:
PCIe
5 x PCIe Gen4 slots + 1 x PCIe Gen3 slot
3 x 16 Gen4 (x16 connector) full height, half length
1 x 4 Gen3 (x8 connector) full height, half length
2 x 16 Gen4 (x16 connector) full height, full length (optional)

Video Card: 1 x VGA

Chassis: Up to 8 fans with full redundancy

Bezel: Optional LCD bezel or security bezel

Form Factor: 5U Tower server

Dimensions & Weight
Height: 459.00 mm (18.07 in.)

Width: 200.00 mm (7.87 in.)

Depth
680.50 mm (26.79 in.) with bezel
663.50 mm (26.12 in.) without bezel

Weight: Max 44.48 kg (98.06 lbs.)i

Rack Support: System is optimized to fit into EIA-310 spec Racks. Dell does not offer specific rails for this platform.
