Dell Poweredge T560 4410Y

0 đ
    Mã sản phẩm: 16Gb 2TB SAS H755

    Bảo hành: 36 tháng

  • CPU: Intel Xeon Silver 4410Y 2.0Ghz 12C/24T 30M Cache
  • RAM: Dell 16GB 4800 DDR5 ECC RDIMM
  • HDD/SSD: Dell 2TB 7.2K RPM NLSAS 12Gbps 512n 3.5 Hot-plug
  • RAID: PERC H755
  • PCIe: six PCIe slots; iDRAC9 Ent
  • Network: Dual 1GbE LOM
  • Optical Drive: Options
  • Power Supply: Redundant Power Supply (1+1), 1400W
  • Lượt xem: 1269
Số lượng

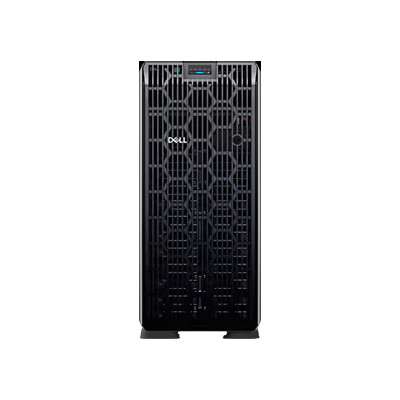

Máy chủ Dell Poweredge T560

Form Factor: Tower

Processor: Intel Xeon Silver 4410Y 2.0Ghz 12C/24T 30M Cache

Memory: Dell 16GB 4800 DDR5 ECC RDIMM

Hard Drive: Dell 2TB 7.2K RPM NLSAS 12Gbps 512n 3.5'' Hot-plug

Raid Controller: PERC H755

Network Controller: Dual 1GbE LOM, 1 x OCP x8 card 3.0

Remote management : iDRAC9 Ent

Optical Drive: none

Power Supply: Redundant Power Supply (1+1), 1400W

Bộ vi xử lý CPU / PROCESSOR:

Bộ nhớ RAM / MEMORY:

RAID CONTROLLER:

Ổ đĩa SSD / Solid State Drive:

x Tray khi chọn option ssd

Ổ đĩa cứng SAS:

x Tray khi chọn option sas

Ổ đĩa cứng SATA:

x Tray khi chọn option hdd

Ổ đĩa quang / Optical Drive:

Card mạng Network Adapter / HBA:

Card màn hình / Graphics Card:

DVD:

Phụ kiện / Accessories:

Màn hình / Monitor / KVM:

Bộ lưu điện / UPS:

Hệ điều hành / Operating System / Software:

đồng ý chọn cấu hình

Dell EMC PowerEdge T560 Tower Server - Specifications

PROCESSOR - 2 SOCKETS

  • Up to two 4th Generation Intel Xeon Scalable processor, with up to 32 cores per processor and optional Intel QuickAssist Technology

MEMORY

  • 16x DDR4 DIMM slots
  • Supports RDIMM 1TB max
  • Speed: Up to 4800MT/s

STORAGE

Front bays:

  • Up to 12 x 3.5-inch SAS/SATA HDD drives
  • Up to 8 x 3.5-inch SAS/SATA HDD drives
  • Up to 8 x 3.5-inch SAS/ SATA HDD + 8 x 2.5-inch NVMe SSD drives
  • Up to 8 x 2.5-inch SAS/SATA HDD drives
  • Up to 16 x 2.5-inch SAS/SATA HDD drives
  • Up to 24 x 2.5-inch SAS/SATA HDD drives

EXPANSION SLOTS

Up to six PCIe slots:

  • Slot 1: x16 Gen5 Full height, Full length
  • Slot 2: x16 Gen5 Full height, Full length
  • Slot 3: x16 Gen4 Full height, Half length
  • Slot 4: x16 Gen4 Full height, Half length
  • Slot 5: x16 (x8 lanes) Gen4 Full height, Half length
  • Slot 6: x16 Gen4 Full height, Half length

CONTROLLERS

  • Internal PERC: fPERC H965i, fPERC H755N, fPERC H755, fPERC H355, fPERC HBA355i
  • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSD drives, or USB
  • External HBA (non-RAID): PERC HBA355e
  • Software RAID: S160 (for NVMe drives only)

PORTS

Front Ports

  • 1 x USB 2.0
  • 1 x USB 3.0
  • 1 x iDRAC Direct (Micro-AB USB) port

Rear Ports

  • 1 x Dedicated iDRAC (RJ45) port
  • 2 x Ethernet ports
  • 1 x Serial port (optional)
  • 1 x VGA port
  • 1 x USB 2.0
  • 1 x USB 3.0

OS COMPATIBILITY

  • Canonical Ubuntu Server LTS
  • Microsoft Windows Server with Hyper-V
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise Server
  • VMware ESXi

POWER SUPPLY

  • 2400 W Platinum 100—240 VAC or 2400 W 240 VDC, hot swap redundant
  • 1800 W Titanium 200—240 VAC or 1800 W 240 VDC, hot swap redundant
  • 1400 W Platinum 100—240 VAC or 1400 W 240 VDC, hot swap redundant
  • 1100 W Titanium 100—240 VAC or 1100 W 240 VDC, hot swap redundant
  • 1100 LVDC -48 — (-60) VDC, hot swap redundant
  • 800 W Platinum 100—240 VAC or 800 W 240 VDC, hot swap redundant
  • 700 W Titanium 200—240 VAC or 700 W 240 VDC, hot swap redundant
  • 600 W Platinum 100—240 VAC or 600 W 240 VDC, hot swap redundant

COOLING OPTIONS

  • Up to 8x Standard (STD) fans or High performance (HPR) fans
  • Air cooling

MANAGEMENT

  • iDRAC9
  • iDRAC Direct
  • iDRAC RESTful API with Redfish
  • iDRAC Service Module
  • Quick Sync 2 Wireless module

SECURITY

  • Cryptographically signed firmware
  • Data at Rest Encryption (SEDs with local or external key mgmt)
  • Secured Component Verification (Hardware integrity check)
  • Secure Boot
  • Secure Erase
  • Silicon Root of Trust
  • System Lockdown (requires iDRAC9 Enterprise or Datacenter)
  • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

CHASSIS

  • Height — 464.0 mm (18.26 inches) (with feet)
  • Height — 508.8 mm (20.03 inches) (with caster wheels)
  • Height — 446.0 mm (17.60 inches) (without feet)
  • Width — 200.0 mm (7.87 inches)
  • Depth — 678.2 mm (26.70 inches) (with bezel)
  • Depth — 660.6 mm (26 inches) (without bezel)
