Dell Poweredge T640 Silver 4210R
0 đ
-
Mã sản phẩm: 1.2TB H750 8x3,5 inch LFF
- CPU: Intel Xeon Silver 4210R 13.75M Cache 2.40 GHz
- RAM: 16GB RDIMM 3200MT/s Dual Rank CK
- HDD/SSD: 1.2TB 10K SAS hotplug HYB 3.5"
- RAID: PERC H750
- PCIe: 8xGen 3 slots (4x8),8xGen 3 slots (4x16),iDRAC9
- Network: 2 x 10GbE
- Optical Drive: DVD+/-RW
- Power Supply: 2 x 750W
- Lượt xem: 1580
Bảo hành: 48 Tháng

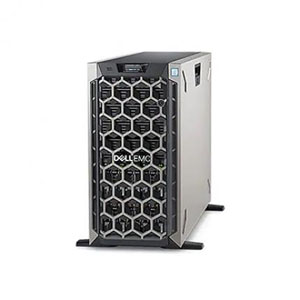

Máy Chủ Dell Poweredge T640
Form Factor: Tower or rack, 5U
Processor: Intel Xeon Silver 4210R 2.4GHz Processor, 10C/20T, 9.6GT/s, 13.75M Cache
Memory: Dell 16GB RDIMM, 3200MT/s, Dual Rank,CK
Hard Drive: 1.2TB 10K SAS hotplug HYB 3.5"
Support Up to 8 x 3.5” HDD: SAS, SATA, nearline SAS SSD: SAS, SATA
Raid Controller: PERC H750
PCI-Express Slots: Up to 8 PCIe Gen3 slots
Network Controller: On-Board Dual-Port 10GbE LOM
Remote management : iDRAC9 Enterprise with Lifecycle Controller
Optical Drive: DVD+/-RW, SATA, Internal
Power Supply: Dual, Hot-plug, Redundant Power Supply (1+1), 750W
Tech Specs & Customization ( Thông số kỹ thuật )
Processor:Up to two 2nd Generation Intel® Xeon® Scalable processors, up to 28 cores per processor
Operating System
Canonical® Ubuntu® Server LTS
Citrix® Hypervisor ®
Microsoft® Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®
Accelerators Up to four 300W and eight 150W GPUs
NVIDIA Tesla P100, P40, K80M, M60, M10, AMD S7150, S7150X2
Memory: DIMM Speed,Up to 2993 MT/s
Memory Type:RDIMM,LRDIMM,NVDIMM
Memory Module Slots:24 DDR4 DIMM slots (12 NVDIMM only)
Supports registered ECC DDR4 DIMMs only
Maximum RAM: RDIMM 3TB,LRDIMM 3TB,NVDIMM 192GB
Storage
Front Bays:
Up to 8 or 18 x 3.5" SAS/SATA (HDD/SSD), max 216TB
Up to 16 x 2.5" SAS/SATA (HDD/SSD), max 61TB
Up to 32 x 2.5” SAS/SATA (HDD/SDD), max 122TB
Up to 16 x 2.5” with up to 8 NVMe, SAS/SSD/NVMe (HDD/SDD), max 112TB
Storage Controllers: Internal Controllers PERC H330, H730P, H740P, HBA330
External Controller (RAID) H840, 12Gbps SAS HBA
Software RAID S140
Internal Boot: Boot Optimized Storage Subsystem (BOSS):HWRAID 2 x M.2 SSDs 240GB, 480 GB
Internal Dual SD Module
Management: Embedded / At-the-Server
iDRAC9,iDRAC RESTful API with Redfish,iDRAC Direct,Quick Sync 2 BLE/wireless module
Consoles: OpenManage Enterprise,OpenManage Power Center
Mobility: OpenManage Mobile
Tools
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs
iDRAC Service Module
IPMI Tool
OpenManage Server Administrator
OpenManage Storage Services
OpenManage Integrations
BMC® Truesight
Microsoft® System Center
Redhat® Ansible® Modules
VMware® vCenter
OpenManage Connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager I
Nagios® Core
Nagios® XI
Power Supplies:
1100W 48VDC, 1100W 380HVDC, 750W 240HVDC, 495W, 750W, 1100W, 1600W, 2000W, 2400W, Platinum,750W, Titanium
Hot plug power supplies with full redundancy option
Up to 8 hot plug fans with full redundancy
Ports: Network Options 2 x 10GbE
Front Ports: 1 x Dedicated iDRAC micro-USB,1 x USB 2.0,1 x USB 3.0,6 x USB 2.0/3.0
Slots
PCIe: 8 x Gen 3 slots (4 x 8),8 x Gen 3 slots (4 x 16)
Video Card 1 x VGA
Bezel Optional LCD bezel or security bezel
Form Factor 5U Tower or Rack Server
Dimensions & Weight
Height 434.5mm (17.1") (base height), 443.5mm (17.5”) (with foot)
Width 217.9mm (8.6") (base width), 304.5mm (12.0”) (with foot)
Depth 692.8mm (27.3")
Weight
42.36kg (93.4lbs.) (Maximum with all drives 32 x 2.5 inch)
49.7kg (109.5) (Maximum with all drives 18 x 3.5 inch)
Rack Support: ReadyRails™ sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks).
