Dell Poweredge T640 Silver 4210R

Liên hệ đ
    Mã sản phẩm: 2TB NLSAS 8x3,5 inch LFF

    Bảo hành: 48 Tháng

  • CPU: Intel Xeon Silver 4210R 13.75M Cache 2.40 GHz
  • RAM: 16GB RDIMM 3200MT/s Dual Rank CK
  • HDD/SSD: 4TB 7.2K RPM NLSAS 12Gbps 3.5in Hotplug
  • RAID: PERC H730P
  • PCIe: 8xGen 3 slots (4x8),8xGen 3 slots (4x16),iDRAC9
  • Network: 2 x 10GbE
  • Optical Drive: DVD+/-RW
  • Power Supply: 2 x 750W
  • Lượt xem: 2966
Số lượng

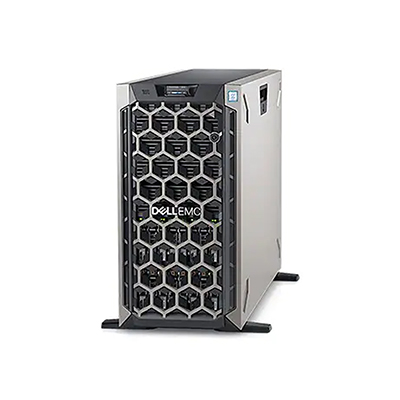

Máy Chủ Dell Poweredge T640

Form Factor: Tower or rack, 5U

Processor: Intel Xeon Silver 4210R 2.4GHz Processor, 10C/20T, 9.6GT/s, 13.75M Cache

Memory: Dell 16GB RDIMM, 3200MT/s, Dual Rank,CK

Hard Drive: Dell 2TB 7.2K RPM NLSAS 12Gbps 3.5in Hot-plug Hard Drive

Support Up to 8 x 3.5” HDD: SAS, SATA, nearline SAS SSD: SAS, SATA

Raid Controller: PERC H730P RAID Controller, 2Gb NV Cache, Minicard

PCI-Express Slots: Up to 8 PCIe Gen3 slots

Network Controller: On-Board Dual-Port 10GbE LOM

Remote management : iDRAC9 Enterprise with Lifecycle Controller

Optical Drive: DVD+/-RW, SATA, Internal

Power Supply: Dual, Hot-plug, Redundant Power Supply (1+1), 750W

Bộ vi xử lý CPU / PROCESSOR:


Bộ nhớ RAM / MEMORY:


Ổ đĩa cứng SAS:

x Tray khi chọn option sas

Tech Specs & Customization ( Thông số kỹ thuật )

Processor:Up to two 2nd Generation Intel® Xeon® Scalable processors, up to 28 cores per processor

Operating System

Canonical® Ubuntu® Server LTS

Citrix® Hypervisor ®

Microsoft® Windows Server® with Hyper-V

Red Hat® Enterprise Linux

SUSE® Linux Enterprise Server

VMware® ESXi®

Accelerators Up to four 300W and eight 150W GPUs

NVIDIA Tesla P100, P40, K80M, M60, M10, AMD S7150, S7150X2

Memory: DIMM Speed,Up to 2993 MT/s


Memory Module Slots:24 DDR4 DIMM slots (12 NVDIMM only)

Supports registered ECC DDR4 DIMMs only



Front Bays:

Up to 8 or 18 x 3.5" SAS/SATA (HDD/SSD), max 216TB

Up to 16 x 2.5" SAS/SATA (HDD/SSD), max 61TB

Up to 32 x 2.5” SAS/SATA (HDD/SDD), max 122TB

Up to 16 x 2.5” with up to 8 NVMe, SAS/SSD/NVMe (HDD/SDD), max 112TB

Storage Controllers: Internal Controllers PERC H330, H730P, H740P, HBA330

External Controller (RAID) H840, 12Gbps SAS HBA

Software RAID S140

Internal Boot: Boot Optimized Storage Subsystem (BOSS):HWRAID 2 x M.2 SSDs 240GB, 480 GB

Internal Dual SD Module

Management: Embedded / At-the-Server

iDRAC9,iDRAC RESTful API with Redfish,iDRAC Direct,Quick Sync 2 BLE/wireless module

Consoles: OpenManage Enterprise,OpenManage Power Center

Mobility: OpenManage Mobile


Dell EMC Repository Manager

Dell EMC System Update

Dell EMC Server Update Utility

Dell EMC Update Catalogs

iDRAC Service Module


OpenManage Server Administrator

OpenManage Storage Services

OpenManage Integrations

BMC® Truesight

Microsoft® System Center

Redhat® Ansible® Modules

VMware® vCenter

OpenManage Connections

IBM Tivoli® Netcool/OMNIbus

IBM Tivoli® Network Manager IP Edition

Micro Focus® Operations Manager I

Nagios® Core

Nagios® XI

Power Supplies:

1100W 48VDC, 1100W 380HVDC, 750W 240HVDC, 495W, 750W, 1100W, 1600W, 2000W, 2400W, Platinum,750W, Titanium

Hot plug power supplies with full redundancy option

Up to 8 hot plug fans with full redundancy

Ports: Network Options 2 x 10GbE

Front Ports: 1 x Dedicated iDRAC micro-USB,1 x USB 2.0,1 x USB 3.0,6 x USB 2.0/3.0


PCIe: 8 x Gen 3 slots (4 x 8),8 x Gen 3 slots (4 x 16)

Video Card 1 x VGA

Bezel Optional LCD bezel or security bezel

Form Factor 5U Tower or Rack Server

Dimensions & Weight

Height 434.5mm (17.1") (base height), 443.5mm (17.5”) (with foot)

Width 217.9mm (8.6") (base width), 304.5mm (12.0”) (with foot)

Depth 692.8mm (27.3")


42.36kg (93.4lbs.) (Maximum with all drives 32 x 2.5 inch)

49.7kg (109.5) (Maximum with all drives 18 x 3.5 inch)

Rack Support: ReadyRails™ sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks).
