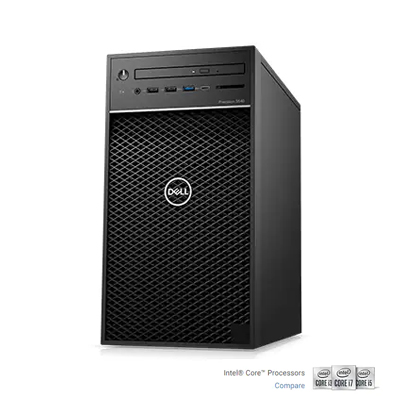

Dell Precision 3640 W-1250P

Feature Precision 3640 Tower Technical Specifications

Processor Options 10th Generation Intel® Core™ i9-10900K, 20 MB Cache, 10 Core, 3.7 GHz to 5.3 GHz - DDR4 2933

10th Generation Intel® Core™ i9-10900, 20 MB Cache, 10 Core, 2.8 GHz to 5.2 GHz - DDR4 2933

10th Generation Intel® Core™ i7-10700K, 16 MB Cache, 8 Core, 3.8 GHz to 5.0 GHz - DDR4 2933

10th Generation Intel® Core™ i7-10700, 16 MB Cache, 8 Core, 2.9 GHz to 4.7 GHz - DDR4 2933

10th Generation Intel® Core™ i5-10600K, 12 MB Cache, 6 Core, 4.1 GHz to 4.8 GHz - DDR4 2666

10th Generation Intel® Core™ i5-10600, 12 MB Cache, 6 Core, 3.3 GHz to 4.8 GHz - DDR4 2666

10th Generation Intel® Core™ i5-10500, 12 MB Cache, 6 Core, 3.1 GHz to 4.5 GHz - DDR4 2666

10th Generation Intel® Core™ i3-10100, 6 MB Cache, 4 Core, 3.6 GHz to 4.3 GHz - DDR4 2666

10th Generation Intel® Xeon® W-1290P, 20 MB Cache, 10 Core, 3.7 GHz to 5.3 GHz - DDR4 2666

10th Generation Intel® Xeon® W-1290, 20 MB Cache, 10 Core, 3.2 GHz to 5.2 GHz - DDR4 2666

10th Generation Intel® Xeon® W-1270P, 16 MB Cache, 8 Core, 3.8 GHz to 5.1 GHz, DDR4 2666

10th Generation Intel® Xeon® W-1270, 16 MB Cache, 8 Core, 3.4 GHz to 4.9 GHz - DDR4 2666

10th Generation Intel® Xeon® W-1250P, 12 MB Cache, 6 Core, 4.1 GHz to 4.8 GHz - DDR4 2666

10th Generation Intel® Xeon® W-1250, 12 MB Cache, 6 Core, 3.3 GHz to 4.7 GHz - DDR4 2666

Operating System Options:

Windows® 10 Professional (64 bit)

Windows® 10 Pro for Workstations (64 bit) w/ Intel Xeon® processors

Windows® 10 Home (64 bit)

Red Hat® Enterprise Linux® 8.2 (coming soon)

Ubuntu® 18.04 SP1

NeoKylin 7.0 (China only)

Chipset Intel® W480 chipset

Memory Options: 4 Dimm Slots; Up to 128GB 2666MHz or 2933MHz (2933MHz requires Intel Core i7 or above)

Non-ECC & ECC DDR4 Memory

Graphics Options: One PCI Express® x16 Gen 3 slot supporting graphics card up to 300W

(Total power available for discrete graphics cards).

(Some cards are available in Dual Config as well)

High End cards: NVIDIA Quadro® RTX5000,AMD Radeon Pro™ W5700

Mid-range 3D cards:

NVIDIA Quadro® RTX4000

NVIDIA Quadro® P2200

AMD Radeon Pro™ W5500

Entry 3D cards: (all single or dual)

NVIDIA Quadro® P1000

AMD Radeon Pro™ WX3200

NVIDIA Quadro® P620

NVIDIA Quadro® P400

Storage Options4 Support for up to (2) M.2 PCIe SSD on motherboard slot and up to (3) 3.5” SATA® or (4) 2.5” SATA®.

Support for Intel® Ready Mode™ technology

Support for up to (1) additional PCIe SSD on Dell Precision Ultra-Speed drive (x8) with active cooling

M.2 PCIe NVMe™ SSD: up to (2) 2TB (max 4TB) on M/B

Up to (1) 2TB on Dell Precision Ultra-Speed drive

SATA® 2.5” 7200 RPM: Up to (4) 2TB 7200 RPM

SATA® 3.5” : Up to (3) 8TB 7200 RPM

Self Encrypting Drives

512GB M.2 NVMe™ SSD Class 40 SED

256 GB M.2 NVMe™ Class 40 SED

1 TB M.2 NVMe™ Class 40 SED

500 GB 2.5-inch OPAL SATA SED FIPS HDD

Storage Controller Integrated: Intel® Rapid Storage Controller 12.0 supporting SATA 6Gb/s and host based RAID 0/1/5/10

Speakers Internal Speaker; Optional Dell 2.0 stereo speaker systems available and Dell sound bar for select

Power Supply:

300W 85% efficient PSU (80PLUS Bronze Certified);

300W 90% efficient PSU (80PLUS Gold Certified Certified) Energy Star compliant;

460W 90% efficient PSU (80PLUS Gold Certified Certified) Energy Star compliant;

550W 90% efficient PSU (80PLUS Gold Certified) Energy Star compliant;

1000W 90% efficient PSU (80 PLUS Gold Certified) Energy Star compliant

(300W Bronze and 1000W Gold PSU not available in certain regions.
