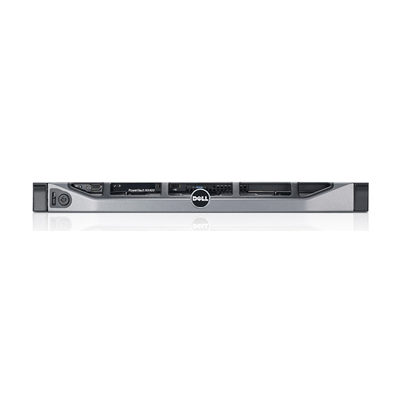

Dell Storage NX430

Features Dell Storage NX430

Operating system Microsoft 2016 (Standard Edition and Workgroup Edition)

File access protocols CIFS, NFS, FTP, SMB3.0, SMB Direct (RDMA)

Block access protocols Leverages shared storage back end for block access; Microsoft iSCSI Target

Form factor 1U rack-mount system

Processors Intel® Xeon® processor E3-1220 v5 (8M Cache, 3.00 GHz)

Memory 8GB or 16GB DDR4

Internal storage Always 4 x 3.5” internal drives that must be identical in capacity and type (NL-SAS or SATA)

Maximum internal capacity 40TB raw capacity with 10TB NL-SAS

Drives SATA (7.2K): 1TB, 2TB 4TB, 6TB, 8TB

NL-SAS (7.2K): 1TB, 2TB, 4TB, 6TB, 8TB, 10TB

Slots 2 PCIe slots:

One x8 PCIe slot with x4 bandwidth, half-length, half-height

One x16 PCIe slot with x16 bandwidth, half-length, full-height

RAID factory options RAID 5

RAID custom options 0, 1, 5, 6 and 10 with the PowerEdge Raid Controller (PERC) H730

RAID controller PERC H730 (internal drives) or H830 (optional for external drives)

Availability Hot-plug hard drives, hot-plug power

Rack support ReadyRails™ sliding rails with optional:

cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks)

Power Redundant: 350W
