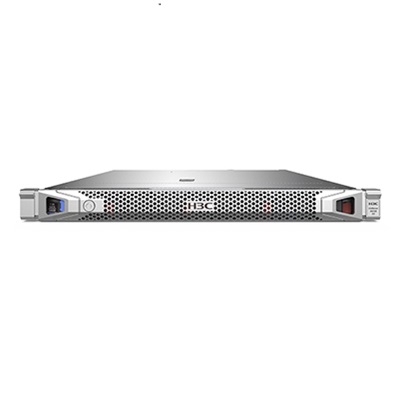

H3C UniServer R4700 G3 Server

Computing

2 × Intel® Xeon® Scalable processors

(Up to 28 cores and maximum 205 W power consumption)

Memory

3.0 TB (maximum)

24 × DDR4 DIMMs

(Up to 2933 MT/s data transfer rate and support for both RDIMM and LRDIMM)

(Up to 12 Intel ® Optane™ DC Persistent Memory Module.(DCPMM)

Storage controller

Embedded RAID controller (SATA RAID 0, 1, 5, and 10)

Mezzanine HBA card (SATA/SAS RAID 0, 1, and 10) (Optional)

Mezzanine storage controller (RAID 0, 1, 5, 6, 10, 50, 60, and 1E) (Optional)

Standard PCIe HBA cards and storage controllers (Optional)

FBWC

4 GB DDR4-2133MHz

Storage

Front 4LFF + rear 2SFF or front 10SFF + rear 2SFF (supports SAS/SATA HDD/SSD and up to 8 front NVMe drives)

480 GB SATA M.2 SSDs

Network

1 × onboard 1 Gbps management network port

1 × mLOM Ethernet adapter that provides 4 × 1GE copper ports or 2 × 10GE copper/fiber ports (Optional)

1 × PCIe Ethernet adapters (Optional)

PCIe slots

5 × PCIe 3.0 slots (two standard slots, one for Mezzanine storage controller, and one for Ethernet adapter)

Ports

Front VGA connector (Optional)

Rear VGA connector and serial port

4 × USB 3.0 connectors (two at the rear and two in the server)

2 × MicroSD slots (Optional)

GPU

2 × single-slot wide GPU modules

Optical drive

External optical drive

Only the 4LFF and 8SFF drive models support built-in optical drives

Management

HDM (with dedicated management port) and H3C FIST

Power supply and ventilation

Platinum 550W/800W/850W or 800W –48V DC power supplies (1+1 redundancy)

Hot swappable fans (supports redundancy)

Standards

CE，UL , FCC，VCCI，EAC, etc.

Operating temperature

5°C to 45°C (41°F to 113°F)

The maximum operating temperature varies by server configuration. For more information, see the technical documentation for the device.

Dimensions (H × W × D)

Without a security bezel: 42.88 × 434.59 × 768.3 mm (1.69 × 17.11 × 30.25 in)

With a security bezel: 42.88 × 434.59 × 780.02 mm (1.69 × 17.11 × 30.71 in)
