Bảo hành: 36 tháng

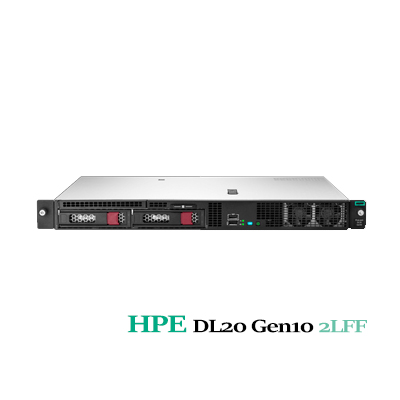

Máy chủ HPE ProLiant DL20 Gen10 16GB S100i 2 x 3,5 inch LFF
Processor: HPE DL20 Gen10 Intel Xeon E-2224 (3.4GHz/4-core/71W) FIO Processor Kit
Memory: HPE 16GB (1x16GB) Dual Rank x8 DDR4-2666 CAS-19-19-19 Unbuffered
Hard Drive: Option
Internal Storage: 2 LFF HDD Bays (Hot Plug)
Raid Controller: Embedded S100i SW RAID with 4 SATA ports
(Support RAID 0, 1, 5, and 10)
PCI-Express Slots: 2 PCIe 3.0 Slots
Network Controller: HPE embedded 1Gb 2-port 332i network Adapter
Optical Drive: None ship as standard
Power Supply: (1) 290W Non Hot Plug Power Supply
Fans: 3 non hot plug, non-redundant
Specifications ( Thông số kỹ thuật )
Processor Type Intel® Xeon
Processor Family Intel® Xeon® E-2100/2200 series, Intel® Core™ i3, Intel® Pentium®
Processor Core Available 8 or 6 or 4 or 2, Processor Cache Installed Up to 16 MB L3
Maximum Memory 64 GB,Memory Slots 4 DIMM slots, maximum
Memory Type HPE Standard Memory,Memory Protection Features ECC
Drive Supported 2 Non-hot plug LFF or 2 Hot plug LFF or 4+2 Hot plug SFF
Network Controller 1 GB 361i Ethernet adapter 2 ports (or) 1 Gb 332i Ethernet adapter 2 ports
Remote Management Software HPE iLO5
System Fan Features Non-hot plug non-redundant
Power Supply Type 290W entry-level power supply or 500W Flex Slot redundant power supply or 800W 48VDC Flex Slot redundant power supply
Expansion Slots Two maximum, for detail descriptions reference the QuickSpecs
Storage Controller HPE S100i, HPE Smart Array E208i-a or HPE Smart Array P408i-a
Processor Number 1 CPU
Processor Speed Up to 4.0 GHz
Form Factor 1U
Weight (imperial) 13.18 lb minimum 20.81 lb maximum
Weight (metric) 6 kg minimum 9.46 kg maximum
Product Dimensions (imperial) 1.70 x 17.11 x 15.05 in (HxWxD)
Product Dimensions (metric) 4.32 x 43.46 x 38.22 cm (HxWxD)
Intel, Intel Core, Intel Xeon, and Pentium are trademarks of Intel Corporation in the U.S. and other countries. All other third-party marks are property of their respective owners.
MSP: HPE-ProLiant-DL360-Gen11
Liên hệ
Intel® Xeon® Silver 4410Y 2G, 12C/24T, 16GT/s, 30M Cache, Turbo, HT (150W)
DDR5 32GB RDIMM, 4800MT/s Dual Rank
Options
Broadcom BCM5720 Ethernet 1Gb 2-port BASE-T Adapter
MegaRAID MR408i-o OCP SPDM Storage Controller
1x PSU 800W Hot Swap
MSP: HPE-ProLiant-DL320-Gen11
Liên hệIntel® Xeon® Silver 4410Y 2G, 12C/24T, 16GT/s, 30M Cache, Turbo, HT (150W)
DDR5 32GB RDIMM, 4800MT/s Dual Rank
Options
Broadcom BCM5720 Ethernet 1Gb 2-port BASE-T Adapter
MegaRAID MR408i-o OCP SPDM Storage Controller
1x PSU 500W Hot Swap
MSP: P55242-B21
Liên hệIntel Xeon Silver 4314 2.40Ghz 16C/32T 24M Cache
HPE 32GB 3200 DDR4 Registered Smart Memory Kit
None
2 PCIe Gen4: 1 x16 FH, 1 x16 LP
Ethernet 10Gb 2-port BASE-T OCP3
MR416i-p/4GB with Smart Storage Battery
Optional DVD
HPE 800W Flex Slot Platinum Hot Plug
MSP: P55241-B21
Liên hệIntel Xeon Silver 4310 2.1Ghz 12C/24T 18M Cache
HPE 32GB 3200 DDR4 Registered Smart Memory Kit
None
2 PCIe Gen4: 1 x16 FH, 1 x16 LP
Ethernet 10Gb 2-port BASE-T OCP3
MR416i-p/4GB with Smart Storage Battery
Optional DVD
HPE 800W Flex Slot Platinum Hot Plug
MSP: 16Gb 8 x 2.5 SFF
Liên hệIntel Xeon Silver 4208 2.10Ghz 8C/16T 11MB Cache
HPE 16GB DDR4 Registered
Option
2 PCIe 3.0
1x1GbE 4p FLR-T I350
HPE Smart Array P408i-a SR
Option
HPE 500W power supply
MSP: 16Gb 8 x 2.5 SFF
Liên hệIntel Xeon Scalable 4210R (10 core, 2.4 GHz, 100W)
HPE 16GB DDR4 Registered
Option, 8 SFF SAS/SATA drives supported
2 PCIe Gen4
1Gb 4-port 366FLR Adapter, Software HPE iLO Standard
HPE Smart Array P408i-a SR (8 Internal Lanes/2GB Cache) 12G SAS
-
HPE 500W power supply
MSP: 32Gb 8 x 2.5 SFF
Liên hệIntel Xeon Silver 4314 (16 core, 2.4 GHz, 135W)
HPE 32GB DDR4 Registered
Option, 8 SFF SAS/SATA drives supported
2 PCIe Gen4
Broadcom BCM57416 10Gb 2-port,Software HPE iLO Standard
HPE Smart Array P408i-a SR (8 Internal Lanes/2GB Cache) 12G SAS
-
HPE 800W power supply
MSP: 32Gb 8 x 2.5 SFF
Liên hệIntel Xeon Silver 4310 (12 core, 2.1 GHz, 120W)
HPE 32GB DDR4 Registered
Option, 8 SFF SAS/SATA drives supported
2 PCIe Gen4
Broadcom BCM57416 10Gb 2-port,Software HPE iLO Standard
HPE Smart Array P408i-a SR (8 Internal Lanes/2GB Cache) 12G SAS
-
HPE 800W power supply
