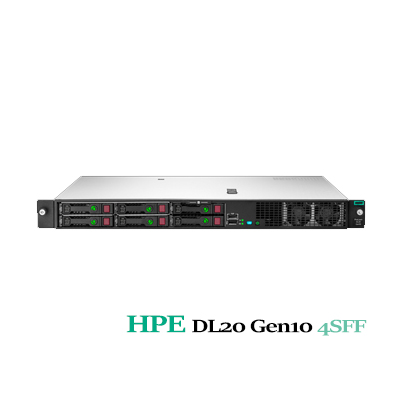

HPE ProLiant DL20 Gen10 E-2224
0 đ
-
Mã sản phẩm: 16GB S100i 4 x 2,5 inch SFF
- CPU: Intel Xeon E-2224 Processor (8M Cache, 3.40 GHz)
- RAM: 16GB 2666 DDR4 Ecc Unbuffered DIMMs
- HDD/SSD: Option
- RAID: HPE S100i
- PCIe: 2 PCIe 3.0 Slots,HPE iLO5
- Network: 1Gb 2-port 332i
- Optical Drive: -
- Power Supply: 290W
- Lượt xem: 2095
Bảo hành: 36 tháng
Máy chủ HPE ProLiant DL20 Gen10 16GB S100i 4 x 2,5 inch SFF
Processor: HPE DL20 Gen10 Intel Xeon E-2224 (3.4GHz/4-core/71W) FIO Processor Kit
Memory: HPE 16GB (1x16GB) Dual Rank x8 DDR4-2666 CAS-19-19-19 Unbuffered Standard Memory Kit (879507-B21)
Raid Controller: Embedded S100i SW RAID with 4 SATA ports
(Support RAID 0, 1, 5, and 10)
Hard Drive: Option
Internal Storage: 4 SFF HDD Bays (Hot Plug)
PCI-Express Slots: 2 PCIe 3.0 Slots
Network Controller: HPE embedded 1Gb 2-port 332i network Adapter
Optical Drive: None ship as standard
Power Supply: 290W Non Hot Plug
Fans: 3 non hot plug, non-redundant
Specifications ( Thông số kỹ thuật )
Processor Type Intel® Xeon
Processor Family Intel® Xeon® E-2100/2200 series, Intel® Core™ i3, Intel® Pentium®
Processor Core Available 8 or 6 or 4 or 2, Processor Cache Installed Up to 16 MB L3
Maximum Memory 64 GB,Memory Slots 4 DIMM slots, maximum
Memory Type HPE Standard Memory,Memory Protection Features ECC
Drive Supported 2 Non-hot plug LFF or 2 Hot plug LFF or 4+2 Hot plug SFF
Network Controller 1 GB 361i Ethernet adapter 2 ports (or) 1 Gb 332i Ethernet adapter 2 ports
Remote Management Software HPE iLO5
System Fan Features Non-hot plug non-redundant
Power Supply Type 290W entry-level power supply or 500W Flex Slot redundant power supply or 800W 48VDC Flex Slot redundant power supply
Expansion Slots Two maximum, for detail descriptions reference the QuickSpecs
Storage Controller HPE S100i, HPE Smart Array E208i-a or HPE Smart Array P408i-a
Processor Number 1 CPU
Processor Speed Up to 4.0 GHz
Form Factor 1U
Weight (imperial) 13.18 lb minimum 20.81 lb maximum
Weight (metric) 6 kg minimum 9.46 kg maximum
Product Dimensions (imperial) 1.70 x 17.11 x 15.05 in (HxWxD)
Product Dimensions (metric) 4.32 x 43.46 x 38.22 cm (HxWxD)
Intel, Intel Core, Intel Xeon, and Pentium are trademarks of Intel Corporation in the U.S. and other countries. All other third-party marks are property of their respective owners.
