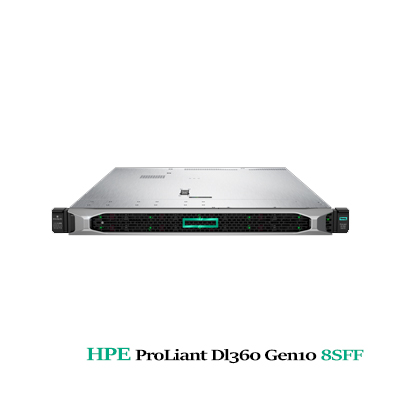

Máy chủ HPE ProLiant DL360 Gen10 16Gb 8 x 2.5 inch SFF
Form Factor: Rack (1U)
Processor: HPE DL360 Gen10 Intel Xeon-Silver 4210 (2.2GHz/10-core/85W) FIO Processor Kit
Memory: 1 x HPE 16GB (1x16GB) Single Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit
Hard Drive: None ship as standard
Internal Storage: 8 SFF SAS/SATA(Optional: up to 2 NVMe or 2 Dual uFF (4x M.2 cartridges)
Raid Controller: HPE Smart Array P408i-a SR Gen10 (8 Internal Lanes/2GB Cache) 12G SAS Modular Controller
PCI-Express Slots: 2 PCIe slots (1 x16 FH / 1 x8 LP) Optional: 1 x16 FH or LP
Network Controller: Embedded 4x 1GbE with optional HPE Flexible LOM and/or standup cards
Optical Drive : None included
Power Supply: 1x HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
Fans: 1 CPU – 5 Standard Fans / 2 CPU – 7 Standard Fans
Rail Kit : SFF Easy Install w/o CMA
Specifications Thông số kỹ thuật
Processor Type Intel Xeon
Processor Family Intel® Xeon® Scalable 8100/8200 series - Intel® Xeon® Scalable 3100/3200 series
Processor Core Available 4 to 28 core, depending on model
Processor Cache Installed 8.25 - 38.50 MB L3, depending on processor
Maximum Memory 3.0 TB with 128 GB DDR4; 6.0 TB with HPE 512GB 2666 Persistent Memory Kit
Memory Slots 24 DIMM slots
Memory Type HPE DDR4 SmartMemory and HPE Persistent Memory, depending on model
NVDIMM Type HPE NVDIMM-N
Only available on 1st Generation Intel® Xeon® Scalable Processors
NVDIMM RankSingle rank,NVDIMM Capacity16 GB
Drive Supported 4 LFF SAS/SATA, 8 SFF SAS/SATA + 2 NVMe, 10 SFF SAS/SATA, 10 SFF NVMe, 1 SFF or 1 Dual UFF rear drive optional depending on model
Network Controller Embedded 4 X 1GbE Ethernet Adapter (select models) or HPE FlexibleLOM and optional PCIe stand-up cards, depending on model
Remote Management SoftwareHPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); Optional- HPE iLO Advanced, and HPE OneView Advanced (require licenses)
System Fan FeaturesHot-plug redundant standard
Expansion Slots3, for detailed descriptions refer to the QuickSpecs
Storage ControllerHPE Smart Array S100i and/or HPE Essential or Performance RAID controllers, depending on model
Processor Name Intel ; Processor Number 1 or 2
Processor Speed 3.9 GHz, maximum depending on processor
Standard Memory 3.0 TB (24 X 128 GB) LRDIMM; 6.0 TB (12 X 512 GB) HPE Persistent Memory
SecurityOptional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0
Form Factor 1U: Weight (imperial)28.74 lb minimum, 37 lb maximum
Weight (metric) 13.04 kg minimum, 16.78 kg maximum
Product Dimensions (imperial) SFF Chassis: 1.69 x 17.11 x 27.83 in, LFF Chassis: 1.69 x 17.11 x 29.5 in
Product Dimensions (metric) SFF Chassis: 4.29 x 43.46 x 70.7 cm, LFF Chassis: 4.29 x 43.46 x 74.98 cm
Intel Xeon and Intel are trademarks of Intel Corporation in the U.S. and other countries. ClearOS is either registered trademark or trademark of ClearCenter Corporation in the United States and/or other countries. All other third-party trademark(s) is/are property of their respective owner(s).
Intel® Xeon® Silver 4410Y 2G, 12C/24T, 16GT/s, 30M Cache, Turbo, HT (150W)
DDR5 32GB RDIMM, 4800MT/s Dual Rank
Options
Broadcom BCM5720 Ethernet 1Gb 2-port BASE-T Adapter
MegaRAID MR408i-o OCP SPDM Storage Controller
1x PSU 800W Hot Swap
