HPE ProLiant DL380 Gen10 Silver 4210
-
Mã sản phẩm: 16Gb 8 x 2.5 inch SFF
- CPU: Intel Xeon Silver 4210 Processor (13.75M Cache, 2.20 GHz)
- RAM: 16GB DDR4 2666Mhz ECC Registered DIMM
- HDD/SSD: Option
- RAID: HPE P408i-a
- PCIe: 3-slots (x8, x16, x8)
- Network: HPE 1 Gb 331i Ethernet adapter 4-ports
- Optical Drive: Option
- Power Supply: 500W (0+1)
- Lượt xem: 2356
Bảo hành: 36 tháng

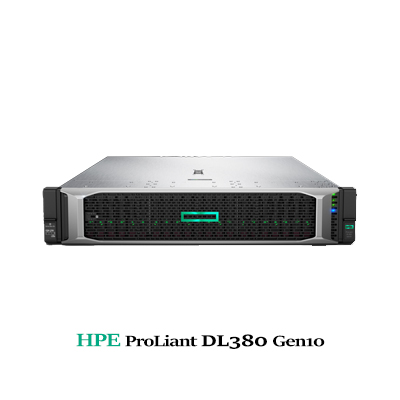

Máy chủ HPE ProLiant DL380 Gen10
Form Factor: Rack (2U)
Processor: 1 x HPE DL380 Gen10 Intel Xeon-Silver 4210 (2.2GHz/10-core/85W) FIO Processor Kit
Memory: 1 x HPE 16GB (1x16GB) Single Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit
Hard Drive: None ship as standard
Internal Storage: 8 SFF Chassis (upgradeable to 24 SFF front)
Raid Controller: HPE Smart Array P408i-a SR Gen10 (8 Internal Lanes/2GB Cache) 12G SAS Modular Controller
PCI-Express Slots: 3-slots (x8, x16, x8) as standard
Network Controller: 4 x 1 Gb ports shipping standard with optional Flexible LOM or stand up card
Optical Drive : None ship as standard
Power Supply: 1x HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
Specifications ( Thông số kỹ thuật )
Processor Type Intel
Processor Family Intel® Xeon® Scalable 8100/8200 series Intel® Xeon® Scalable 6100/6200 series Intel® Xeon® Scalable 5100/5200 series Intel® Xeon® Scalable 4100/4200 series Intel® Xeon® Scalable 3100/3200 series
Processor Core Available 4 to 28 core, depending on model
Processor Cache Installed 8.25 - 38.50 MB L3, depending on processor model
Maximum Memory 3.0 TB with 128 GB DDR4, depending on processor model; 6.0 TB with HPE 512GB 2666 Persistent Memory Kit, depending on processor model
Memory Slots 24 DIMM slots
Memory Type HPE DDR4 Smart Memory with optional Intel Optane Persistent Memory for HPE, depending on processor model selected. Intel Optane Persistent Memory for HPE only supported on select 2nd Generation Intel Scalable Series Processors, to include: 82xx, 62xxR, 62xx, 52xxR, 52xx series processors, and the 4215R and 4215 processors.
NVDIMM Type HPE NVDIMM-N *Only available on 1st Generation Intel® Xeon® Scalable Processors
NVDIMM Rank Single rank, NVDIMM Capacity16 GB
Drive Supported 8 or 12 LFF SAS/SATA/SSD 8, 10, 16, 18 or 24 SFF SAS/SATA/SSD; 2 M.2 SATA SSD standard on primary riser, depending on configuration; 6 SFF rear drive optional or 3 LFF rear drive optional and 2 SFF or 2 Dual UFF rear drive optional; 20 SFF NVMe optional; NVMe support via Express Bay will limit maximum drive capacity
Network Controller HPE 1 Gb 331i Ethernet adapter 4-ports per controller and/or optional HPE FlexibleLOM, depending on model
Remote Management Software HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, and HPE OneView Advanced (optional; requires licenses)
System Fan Features Hot-plug redundant fans, standard
Expansion Slots 8, for detailed descriptions reference the QuickSpecs
Storage Controller 1 HPE Smart Array S100i and/or 1 HPE Smart Array P408i-a and/or 1 HPE Smart Array P816i-a and/or 1 HPE Smart Array E208i-a, depending on model
Warranty Standard Statement 3/3/3 - Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage.
Processor Name Intel, Processor Number1 or 2
Processor Speed 3.9 GHz, maximum depending on processor
Standard Memory 3.0 TB (24 X 128 GB) LRDIMM; 6.0 TB (12 X 512 GB) Persistent Memory
Security Optional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0
Form Factor 2U
Weight (imperial) 32.6 lb,Weight (metric) 14.76 kg
Product Dimensions (imperial) 17.54 x 28.75 x 3.44 in,
Product Dimensions (metric) 44.55 x 73.03 x 8.74 cm
Intel Xeon and Intel are trademarks of Intel Corporation in the U.S. and other countries. Microsoft and Azure are registered trademarks of Microsoft Corporation in the United States and other countries. All other third-party trademark(s) is/are property of their respective owner(s)
