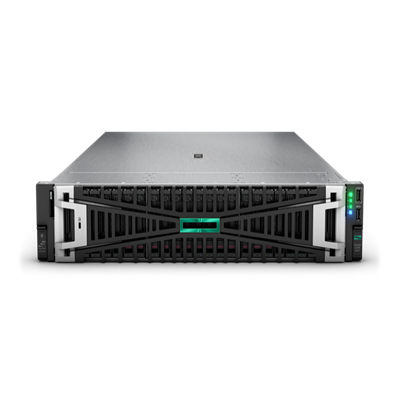

HPE ProLiant DL380 Gen11
0 đ
-
Mã sản phẩm: HPE-ProLiant-DL380-Gen11
- CPU: Intel® Xeon® Gold 6426Y (16 core, 2.50 GHz, 37.5 MB L3, 185W)
- RAM: DDR5 32GB RDIMM, 4800MT/s Dual Rank
- HDD/SSD: Options
- RAID: MegaRAID MR408i-o OCP SPDM Storage Controller
- PCIe:
- Network: Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter
- Optical Drive:
- Power Supply: 1x PSU 800W Hot Swap
- Lượt xem: 1098
Bảo hành: 36 tháng
HPE ProLiant DL380 Gen11
CPU: Intel® Xeon® Gold 6426Y (16 core, 2.50 GHz, 37.5 MB L3, 185W)
RAM: DDR5 32GB RDIMM, 4800MT/s Dual Rank
HDD/SSD: Options
RAID: MegaRAID MR408i-o OCP SPDM Storage Controller
Network: Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter
PSU: 1x 800W Hot Swap
HPE ProLiant DL380 Gen11 Server - Specifications
PROCESSOR - 2 SOCKETS
- 4th Generation Intel Xeon Scalable Processors
MEMORY
Maximum Memory:
- 8TB
Memory Slots:
- 32 x DIMM slots
Memory Type:
- HPE DDR5 SmartMemory
DRIVE BAYS
Front:
- 8 or 12 x LFF SAS/SATA/SSD
- 8, 16, or 24 x SFF SAS/SATA/SSD
Rear:
- 6 x SFF rear drive optional
- 2 x SFF rear-drive optional
- 20 x SFF NVMe optional
INTERFACES
- Serial (Optional, rear)
- 1 x Display Port (Front)
- 1 x VGA Port (Rear)
- 1Gb Dedicated HPE iLO Remote Management Network Port
- 1 x Front iLO Service Port
- 4 x USB 3.2 Gen1 (1x front, 2x rear, 1x internal)
- 1 x USB 2.0 (Internal)
EXPANSION SLOTS
- Up to 8x PCIe Gen5 full-height, full-length slots
POWER SUPPLY
- 2 x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
- 2 x HPE 1600W Flex Slot -48VDC Hot Plug Power Supply Kit
- 2 x HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
SYSTEM FANS
- 6 x Standard Fans
DIMENSIONS
SFF CTO servers:
- 8.75 x 44.8 x 72.7. cm / 3.44 x 17.64 x 28.62 in
LFF CTO servers:
- 8.75 x 44.8 x 73.25 cm / 3.44 x 17.64 x 28.84 in
