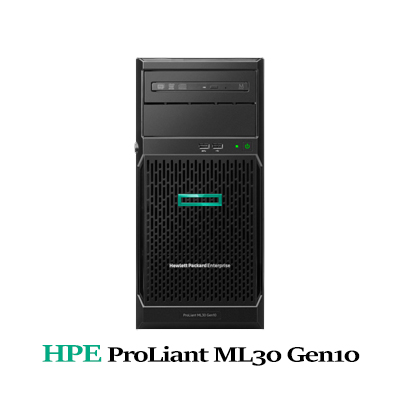

Máy chủ HPE ProLiant ML30 Gen 10
Processor: HPE ML30 Gen10 Intel Xeon E-2234 (3.6GHz/4-core/71W) FIO Processor Kit
Memory: 16GB 2666 DDR4 Ecc Unbuffered DIMMs
Hard Drive: HPE 4TB SATA 6G Midline 7.2K LFF (3.5in) LP
Internal Storage: 4 LFF HDD Bays (Hot Plug) , 1x M.2 PCIe 3.0 x2 slot
Raid Controller: Embedded S100i SW RAID with 4 SATA ports (Support RAID 0, 1, 5, and 10)
PCI-Express Slots: 4 PCIe 3.0 slots
Network Controller: Embedded 2-Port 1GbE HPE Ethernet 332i Adapter
Optical Drive: None ship as standard
Power Supply: 350W ATX Power Supply
Specifications HPE ProLiant ML30 Gen10 server
Processor Type Intel Xeon
Processor Family Intel® Xeon® E-2100/2200 series, Intel® Core™ 8th/9th Gen i3 Processor, Intel® Pentium® Processor
Maximum Memory 64 GB with 16 GB DDR4
Memory Slots 4 Memory Protection FeaturesUnbufferred ECC
Drive Supported 4 NHP LFF SATA HDD
with optional 2 LFF SATA HDD or 4 LFF SAS/SATA HDD/SSD or 8 SFF SAS/SATA HDD/SSD, with 1 M.2 NVMe SSD, depending on model
Processor Core Available 2 to 6 core, depending on processor
Processor Cache Installed 4 to 12 MB L3, depending on processor
Processor Number 1, Processor Speed 4.0 GHz, maximum depending on processor
Memory Type HPE DDR4 Standard Memory
Expansion Slots 4, for detailed descriptions reference the QuickSpecs
Network Controller HPE 1 Gb 332i Ethernet adapter 2-ports per controller or HPE 1 Gb 361i Ethernet adapter 2-ports per controller, depending on model
Storage Controller 1 HPE Smart Array S100i, Form Factor 4U Tower
Warranty Standard StatementServer Warranty includes 3-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part, 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. 3) Non CSR parts must be serviced by a trained authorized service engineer. Additional information regarding worldwide limited warranty and technical support is available at: HP.
NOTE: Warranty does not cover support for ClearOS. Support for ClearOS is provided by ClearCenter.
Weight (imperial) 22.1 lb minimum, 38.7 lb maximum
Weight (metric) 10.1 kg minimum, 17.6 kg maximum
Product Dimensions (imperial) 14.5 x 6.89 x 18.7 in
Product Dimensions (metric) 36.83 x 17.5 x 47.5 cm
Intel, Intel Xeon, and Pentium are trademarks of Intel Corporation in the U.S. and other countries. All other third-party marks are property of their respective owners
Intel® Xeon® Silver 4410Y 2G, 12C/24T, 16GT/s, 30M Cache, Turbo, HT (150W)
16 GB DDR5 RDIMM
Options
Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE
HPE MR408i-o storage controller
2x PSU 800W Hot Swap
