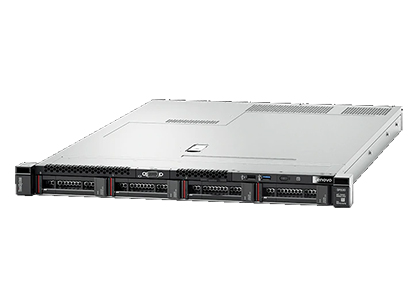

Lenovo ThinkSystem SR530 Silver 4114 - 7X08A02NSG
CPU: Intel Xeon Silver 4116 Processor (16.5M Cache, 2.10 GHz)
RAM: ThinkSystem 8GB TruDDR4 2666 MHz RDIMM
HDD/SSD: Option
RAID: 530i
Khe cắm pci: 3x PCIe 3.0
Network: 2x Integrated 1 GbE RJ-45 ports
DVD: Option
Nguồn: 550W (0+1)
Tech Specs SR530 ( Thông số kỹ thuật )
DESCRIPTION SPECIFICATIONS
Form Factor/Height :1U rack server
Number of Processors: Up to 2x second-generation Intel® Xeon® Platinum processor, up to 125W
Memory: Up to 768GB in 12x slots, using 64GB DIMMs; 2666MHz / 2933MHz TruDDR4
Expansion Slots: Up to 3x PCIe 3.0, via multiple riser options (either all-PCIe, or PCIe and ML2)
Drive Bays: 8x 2.5" hot-swap SAS/SATA; or 4x 3.5" hot-swap SAS/SATA; or 4x 3.5" simple-swap SATA; up to 2x M.2 boot (optional RAID 1)
HBA/RAID Support SW RAID standard; optional HBA or HW RAID with flash cache
Security/Availability: Lenovo ThinkShield, TPM 1.2/2.0; redundant PSUs; front-access diagnostics via dedicated USB port
Network Interface: 2x 1GbE ports + 1x dedicated 1GbE management port (standard); optional modular LOM supports 2x 1GbE Base-T or 2x 10GbE with Base-T or SFP+
Power 2x hot-swap/redundant (Energy Star 2.1): 550W/750W 80 PLUS Platinum; or 750W 80 PLUS Titanium
Systems Management: XClarity Controller, XClarity Administrator, XClarity Integrator plugins, and XClarity Energy Manager
OSes Supported: Microsoft Windows Server, SUSE, Red Hat, VMware vSphere. Visit lenovopress.com/osig for details.
Limited Warranty: 1- and 3-year customer replaceable unit and onsite service, next business day 9x5
Intel Xeon Gold 5115 Processor (16.50M Cache, 2.30 GHz)
ThinkSystem 16GB TruDDR4 2666Mhz RDIMM
Option
4x PCIe 3.0
4x1/10Gb Ethernet ports
930-8i 2GB Flash
Option
750W (0+1)
