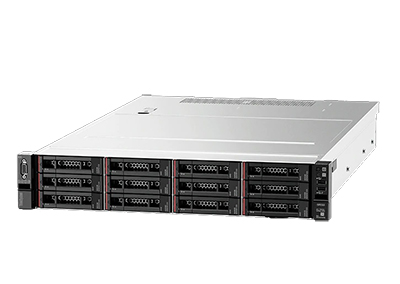

Lenovo ThinkSystem SR550 Silver 4110 16x2,5 inch 7X04A00GSG
Form factor: 2U Rack.: H 87 mm x W 445 mm x D 720 mm
Processor std/max: Intel Xeon Silver 4114 10C 85W 2.2GHz Processor , 1/2
Memory std/max: 16GB 2666 MHz, 2/12 (Max 768 GB)
Bays HDD: Upto 16x 2.5-inch SAS/SATA hot-swaph, max storage internal 122.8 TB
Raid Controller:RAID 530i (cacheless) supports RAID 0, 1, 10, 5, 50
Bus slots: Up to 6 PCIe
Ethernet: 2x 1/10 Gb Ethernet ports
Optical Drive: Support for an external USB DVD RW Optical Disk Drive
Power Supply: 750 W (Up to two redundant hot-swap)
Description Specifications ( Thông số kỹ thuật SR550 )
Form Factor/Height: 2U rack/server
Processors: Up to 2 second-generation Intel® Xeon® Platinum processor, up to 125W
Memory: Up to 768GB in 12x slots, using 64GB DIMMs; 2666MHz / 2933MHz TruDDR4
Expansion Slots: Up to 6x PCIe 3.0 (with 2x processors) via multiple riser options (PCIe-only or PCIe + ML2)
Drive Bays: Up to 16x hot-swap 2.5" or 12x hot-swap 3.5” or 8x simple-swap 3.5"; plus up to 2x mirrored M.2 boot (optional RAID 1)
HBA/RAID Support: Software RAID standard (up to 8 ports); up to 16-port HBAs/or HW RAID with flash cache
Security and Availability Features Lenovo ThinkShield, TPM 1.2/2.0; PFA; Hot-swap/redundant drives and PSUs; front-access diagnostics via dedicated USB port; optional redundant cooling
Network Interface: 2x 1GbE ports + 1x dedicated 1GbE management port (standard); 1x optional 10GbE LOM
Power 2x hot-swap/redundant (Energy Star 2.1): 550W/750W 80 PLUS Platinum; or 750W 80 PLUS Titanium
Systems Management: XClarity Controller, XClarity Administrator, XClarity Integrator plugins, and XClarity Energy Manager
OSes Supported: Microsoft, SUSE, Red Hat, VMware. Visit lenovopress.com/osig for details.
Limited Warranty: 1-year and 3-year customer replaceable unit and onsite service, next business day 9x5
Intel Xeon Gold 5120 Processor (19.25M Cache, 2.20 GHz)
ThinkSystem 16GB TruDDR4 2666 MHz RDIMM
Option
7x PCIe 3.0
4x1/10Gb Ethernet ports
530i (cacheless) supports RAID 0, 1, 10, 5, 50
Option
750W (0+1)
