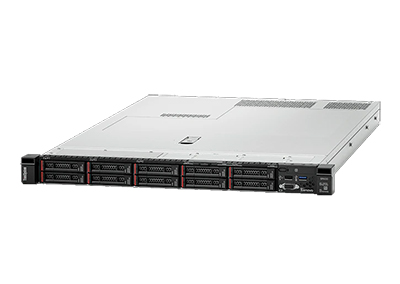

Lenovo ThinkSystem SR630 Gold 5118

DESCRIPTION SPECIFICATIONS ( Thông Số Kỹ Thuật SR630 )

Form Factor/Height : 1U rack server

Processor (max)/Cache (max) : Up to 2 second-generation Intel® Xeon® Platinum processor, up to 205W

Memory : Up to 7.5TB in 24x slots, using 128GB DIMMs; 2666MHz / 2933MHz TruDDR4 : Expansion Slots,Up to 4x PCIe 3.0 slots (with two CPUs), including 1x dedicated PCIe for RAID adapter

Drive Bays : Up to 12 bays (includes 4x AnyBay): 3.5": 4x hot-swap SAS/SATA; 2.5": 4x hot-swap AnyBay + 6x hotswap SAS/SATA + 2x rear; or 8x hot-swap SAS/SATA; or 10x hot-swap U.2; plus up to 2x mirrored M.2 boot

HBA/RAID Support : HW RAID (up to 16 ports) with flash cache; up to 16-port HBAs

Security and Availability : TPM 1.2/2.0; PFA; hot-swap/redundant drives, fans, and PSUs; 45°C continuous operation; light path diagnostic LEDs; front-access diagnostics via dedicated USB port

Network Interface : 2/4-port 1GbE LOM; 2/4-port 10GbE LOM with Base-T or SFP+; 1x dedicated 1GbE management port

Power 2x hot-swap/redundant: 550W/750W/1100W AC 80 PLUS Platinum; or 750W 80 AC PLUS Titanium

Systems Management : XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management

Operating Systems Supported : Microsoft, SUSE, Red Hat, VMware vSphere. Visit lenovopress.com/osig for more information.

Limited Warranty : 1- and 3-year customer replaceable unit and onsite service, next business day 9x5, optional service upgrades
