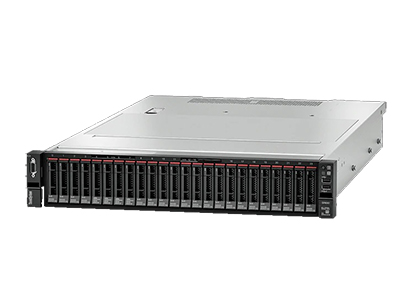

Lenovo ThinkSystem SR650 Gold 5115 24x2,5 inch 7X06A03FSG
Form factor: 2U Rack.: H 87 mm x W 445 mm x D 720 mm
Processor std/max: Intel Xeon Gold 5115 10Core 85W 2.4GHz Processor (1/2)
Memory std/max: 16GB 2666 MHz, 1/24 (Max 3TB)
Bays HDD: Up to 24x2.5-inch SAS/SATA hot-swap, max storage internal 392TB
Raid Controller:RAID 530i (cacheless) supports RAID 0, 1, 10, 5, 50
Bus slots: Up to 7 PCIe
Ethernet: 4x1/10Gb Ethernet ports
Systems management: XClarity Controller (XCC) Standard
Optical Drive: Support for an external USB DVD RW Optical Disk Drive
Power Supply: 750 W (Up to two redundant hot-swap
Description Specifications ( Thông số kỹ thuật SR650 )
Form Factor/Height: 2U rack server
Processors: Up to 2 second-generation Intel® Xeon® Platinum processor, up to 205W
Memory: Up to 7.5TB in 24x DIMM slots using 128GB DIMMs and Intel® Optane™ DC Persistent Memory; 2666MHz / 2933MHz TruDDR4
Expansion Slots: Up to 7x PCIe 3.0 via multiple riser options including 1x dedicated PCIe slot for RAID adapter
Drive Bays: Up to 14x 3.5” or up to 24. 2.5” hot-swap bays (up to 12 AnyBay bays or up to 24 NVMe bays); up to 2x M.2 boot drives (RAID 1)
HBA/RAID Support: HW RAID (up to 24 ports) with flash cache; up to 16-port HBAs
Security and Availability Features TPM 1.2/2.0; PFA; hot-swap/redundant drives, fans, and PSUs; 45°C continuous operation; light path diagnostic LEDs; front-access diagnostics via dedicated USB port
Network Interface: 2/4-port 1GbE LOM; 2/4-port 10GbE LOM (Base-T or SFP+); 1x dedicated 1GbE management port
Power (Energy Star 2.0 compliant): 2x hot swap/redundant: 550W/750W/1100W/1600W 80 PLUS Platinum; or 750W 80 PLUS Titanium; or -48V DC 80 PLUS Platinum
Systems Management: XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management
Operating Systems Supported: Microsoft, Red Hat, SUSE, VMware. Visit lenovopress.com/osig for details.
Limited Warranty: 1- and 3-year customer replaceable unit and onsite service, next business day 9x5, optional service upgrades
Intel Xeon Gold 5120 Processor (19.25M Cache, 2.20 GHz)
ThinkSystem 16GB TruDDR4 2666 MHz RDIMM
Option
7x PCIe 3.0
4x1/10Gb Ethernet ports
530i (cacheless) supports RAID 0, 1, 10, 5, 50
Option
750W (0+1)
