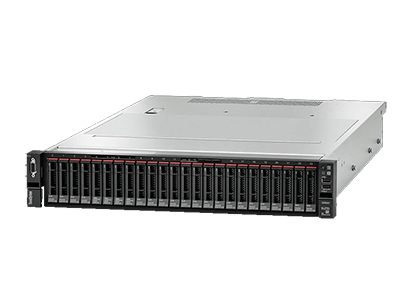

Lenovo ThinkSystem SR650 Gold 5118
0 đ
-
Mã sản phẩm: 24x2,5 inch 7X06A03JSG
- CPU: Intel Xeon Gold 5118 Processor (16.50M Cache, 2.30 GHz)
- RAM: ThinkSystem 16GB TruDDR4 2666 MHz RDIMM
- HDD/SSD: Option
- RAID: 530i (cacheless) supports RAID 0, 1, 10, 5, 50
- PCIe: 7x PCIe 3.0
- Network: 4x1/10Gb Ethernet ports
- Optical Drive: Option
- Power Supply: 750W (0+1)
- Lượt xem: 2471
Bảo hành: 36 Tháng
Lenovo ThinkSystem SR650 Gold 5118 24x2,5 inch 7X06A03JSG
Form factor: 2U Rack.: H 87 mm x W 445 mm x D 720 mm
Processor std/max: Intel Xeon Gold 5118 12Core 105W 2.3GHz Processor (1/2)
Memory std/max: 16GB 2666 MHz, 1/24 (Max 3TB)
Bays HDD: Up to 24x2.5-inch SAS/SATA hot-swap, max storage internal 392TB
Raid Controller:RAID 530i (cacheless) supports RAID 0, 1, 10, 5, 50
Bus slots: Up to 7 PCIe
Ethernet: 4x1/10Gb Ethernet ports
Systems management: XClarity Controller (XCC) Standard
Optical Drive: Support for an external USB DVD RW Optical Disk Drive
Power Supply: 750 W (Up to two redundant hot-swap)
Description Specifications ( Thông số kỹ thuật SR650 )
Form Factor/Height: 2U rack server
Processors: Up to 2 second-generation Intel® Xeon® Platinum processor, up to 205W
Memory: Up to 7.5TB in 24x DIMM slots using 128GB DIMMs and Intel® Optane™ DC Persistent Memory; 2666MHz / 2933MHz TruDDR4
Expansion Slots: Up to 7x PCIe 3.0 via multiple riser options including 1x dedicated PCIe slot for RAID adapter
Drive Bays: Up to 14x 3.5” or up to 24. 2.5” hot-swap bays (up to 12 AnyBay bays or up to 24 NVMe bays); up to 2x M.2 boot drives (RAID 1)
HBA/RAID Support: HW RAID (up to 24 ports) with flash cache; up to 16-port HBAs
Security and Availability Features TPM 1.2/2.0; PFA; hot-swap/redundant drives, fans, and PSUs; 45°C continuous operation; light path diagnostic LEDs; front-access diagnostics via dedicated USB port
Network Interface: 2/4-port 1GbE LOM; 2/4-port 10GbE LOM (Base-T or SFP+); 1x dedicated 1GbE management port
Power (Energy Star 2.0 compliant): 2x hot swap/redundant: 550W/750W/1100W/1600W 80 PLUS Platinum; or 750W 80 PLUS Titanium; or -48V DC 80 PLUS Platinum
Systems Management: XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management
Operating Systems Supported: Microsoft, Red Hat, SUSE, VMware. Visit lenovopress.com/osig for details.
Limited Warranty: 1- and 3-year customer replaceable unit and onsite service, next business day 9x5, optional service upgrades
