Load Balancer Enterprise 40G

Technical Specifications

Product overview

The most complete high performance solution for object storage with high scale and high capacity workloads.

Hardware platform

• Standard Network Adapters:

  • 2 x 1GbE

  • 2 x 40GbE QSFP+ on Mellanox MCX314A-BCCT

• 480GB SSD storage

• 16GB DDR RAM

• Hexa Core Intel Xeon E-2286G 4.0GHz, 12M cache, 6C/12T, turbo (95W)

• Local console access via VGA, USB, Serial

• Remote console access via SSH

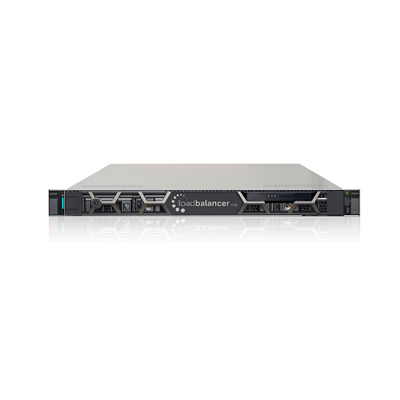

• Dell R340 server based

• CE/FCC Certified, UL Listed, RoHS Compliant

Standard Features

• Server Load Balancing (SLB) for any TCP or UDP based protocol

• SSL Acceleration/Offload

• Layer 7 Content Switching

• No bandwidth, performance or feature limitations

• High performance Direct Routing, TUN, NAT and SNAT

• Schedulers: Round Robin, Least Connection, Weighted Least Connection, Weighted Round Robin

• Dynamic Schedulers: Windows and Linux feedback agents, Custom HTTP feedback option

• Load balance almost ANY protocol i.e. HTTP, HTTPS, SMTP, POP3, IMAP, Terminal Server, etc.

• Support for Direct Server Return (DSR) configurations

• Configurable S-NAT support

• Link aggregation (802.3ad)

• VLAN Tagging (802.1Q)

• GSLB

SSL

• PCI-ready SSL Implementation

• Unlimited support for SSL Certificates

• Support for Third Party Certificates

• Automated SSL Certificate Chaining

• SSL Certificate Signing Request (CSR) Generation

• PFX upload and conversion

• Proxy protocol support

Performance

• Up to 48Gbps Throughput

• SSL Acceleration/Offload up to 19,584 TPS

• Maximum 1,234,455 HTTP RPS

• 31,200,000 Concurrent sessions

L4/L7 sticky persistence

• Connection persistence based on

  • Source IP address

  • SSL Session ID

  • Passive Cookie

  • Active Cookie (Insert)

  • RDP Cookie/Session Broker

  • X-forwarded for header

• Port following (Persistence on multiple combined ports)

• Multiple fallback options i.e. use source IP if no cookie found

Security functionality

• Fully integrated WAF (Web Application Firewall)

• OWASP top 10 protection

• Persistent Access Control List system

• Firewall filtering (full iptables scripting support)

• Firewall lock down wizard

• DDOS mitigation both at layer 4 and 7

• Virtual patching

• HTTP and SYN Flood protection

• Block SQL Injection Attacks

• Prevent Cross Site Scripting (XSS)

• FIPS 140-2 Compliant

• PCI DSS Ready

• Reverse proxy

Health checking and high availability

• Application health checking for DNS, FTP, HTTP, HTTPS, IMAP, NNTP and many more

• ICMP health checking of server farm machines

• External Health Check scripts can be edited and managed using WebUI across L4/L7 and GSLB

• Automatic reconfiguration for defective real server machines

• Automatically remove a failed server from the load balancing pool

• Automatic replication of static and dynamic configuration from master to slave load balancer

• Stateful Failover (persistence table replication)

• One click secure clustered pair configuration

Scheduling and balancing methods

• Round Robin

• Weighted Round Robin

• Least Connection

• Weighted Least Connection

• Agent-based Adaptive (Windows and Linux Agents)

• Layer 7 Content Switching

• Destination Hash for transparent proxy

Administration

• Secure, SSH, HTTP and HTTPS for remote access administration

• Fully configurable using Web User Interface (WUI)

• Easy start configuration and maintenance wizards

• Extensive ACL Traffic Rules configurable using WebUI

• WebUI-based Help Assistant

• Online chat support integrated in WebUI

• Virtual Service Configurations can be edited and tuned on-the-fly

• Real time performance and availability displays

• Optionally configure console port for local administration

• Remotely scriptable Command Line Interface (LBCLI) Option

• SOAP interface to the LBCLI API

• Local and Remote syslogd support

• Selective restore of physical and Virtual Service data

• Support for Connection Draining or halting with or without persistence

• Software and Security updates available on and off-line

• WebUI Log Reporting with Tabbed Browser Support

• SNMP support for performance metrics

• Full root access to with a multitude of diagnostic tools tcpdump etc.

Warranty and support services

• Hardware Warranty:

  • 3 Years Next Business Day On-site Engineer included as standard

• Global Support Options:

  • Standard support – Unlimited 24/7 access to our Technical Support Engineers

  • Basic support – Unlimited support during business hours (9am to 5pm)
