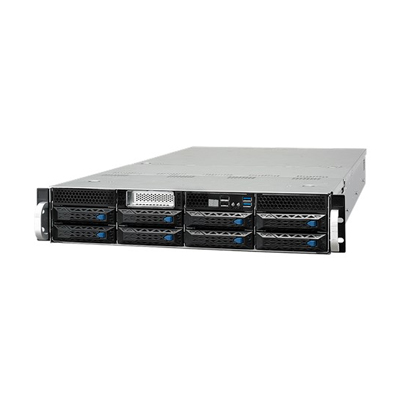

Máy chủ Asus ESC4000 G4
0 đ
-
Mã sản phẩm: 8x3.5 inch 4 GPU
- CPU: Gen Intel® Xeon® Processor Scalable Family
- RAM: 16 (6-channel per CPU, 8 DIMM per CPU)
- HDD/SSD: 8 x SATA 3 6Gb/s ports + 1 x M.2 connector
- RAID: ASUS PIKE II 3008 8-port SAS HBA card
- PCIe: 8 x PCI-E 3.0 x16
- Network: 1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN
- Optical Drive: Options
- Power Supply: 1+1 Redundant 1600W 80 PLUS Platinum Power Supply
- Lượt xem: 3666
Bảo hành: 36 Tháng
Máy chủ Asus ESC4000 G4
CPU: 2 x Socket Intel Xeon (LGA 3647)
1st Gen Intel® Xeon® Processor Scalable Family (150W)
2nd Gen Intel® Xeon® Processor Scalable Family (150W)
RAM: 16 (6-channel per CPU, 8 DIMM per CPU)
HDD/SSD: 8 x Hot-swap 3.5" HDD Bays
RAID: Intel® Rapid Storage Technology Enterprise(RSTe)
(For Linux/Windows) (Support Software RAID 0, 1, 5, 10)
Khe cắm pci: 8 x PCI-E 3.0 x16 (4 at x16 Link or 8 at x8 Link)
Network: Dual Port Intel I350-AM2 Gigabit LAN controller
Management: On-Board ASMB9-iKVM for KVM-over-IP
DVD: Options
Nguồn: 1600W (1+1)
Specifications
Processor / System Bus
2 x Socket P (LGA 3647)
1st and 2nd Gen Xeon® Scalable Processor Family (150W)
Core Logic Intel® Lewisburg PCH C621
Memory Total Slots : 16 (6-channel per CPU, 8 DIMM per CPU) ; Capacity : Maximum up to 2048GB LRDIMM
Memory Type :
DDR4 2933/2666/2400 /2133 RDIMM
DDR4 2933/2666/2400 /2133 LRDIMM
DDR4 2933/2666/2400 /2133 LR-DIMM 3DS
DDR4 Intel® Optane™ DC Persistent Memory
Memory Size :
64GB, 32GB, 16GB RDIMM
128GB, 64GB, 32GB LRDIMM
128GB, 64GB LR-DIMM 3DS
Expansion Slots Total: 8 + 3
Full-length/Full-height 8 * PCIe 3.0 x16 (4 at x16 Link or 8 at x8 Link)
(2 from CPU1 and 2 from CPU2 or 4 from CPU1 and 4 from CPU2)
Half-length/Low-profile
Rear: 1 * PCIe 3.0 x24 (support with riser card)
(1 * PCIe x16 (x16 Gen3 Link) from CPU1 and 1 * PCIe x8 (x8 Gen3 Link) from CPU2)
Front: 1 * PCIe x8 (internal HBA/RAID card)
(from CPU2, Bandwidth is shared between PCIe x8 and 2 x NVMe drives)
Storage SATA Controller : Intel® C621 8 x SATA3 6Gb/s ports + 1 x M.2 connector (SATA 6Gb/s & PCIe® Gen3 x4 link /2280/2260)
Or 6 x SATA3 6Gb/s ports + 2 x NVMe drives + 1 x M.2 connector (SATA 6Gb/s & PCI-E Gen3 x4 link /2280/2260)
Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
(Support Software RAID 0, 1, 5, 10 )
Intel®VROC (For Linux/Windows)
(Support Software RAID 0/1 )
SAS Controller :
ASUS PIKE II 3008 8-port SAS HBA card
ASUS PIKE II 3108 8-port SAS HW RAID card
12G SAS Support
Drive Bays 8 x Hot-swap 3.5" HDD Bays
Networking 1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN
Graphic Aspeed AST2500 with 64MB VRAM
