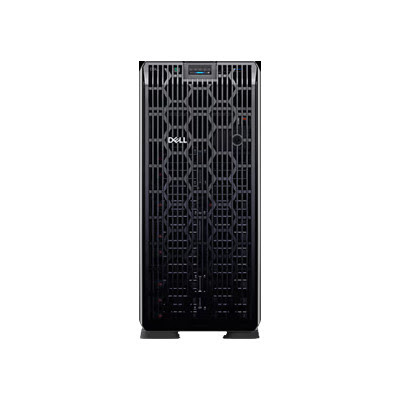

PowerEdge T560 Silver 4510

Processor:
Up to two 4th Generation Intel® Xeon Scalable processor, with up to 32 cores per processor
Up to two 5th Generation Intel® Xeon Scalable processor, with up to 28 cores per processor
Memory:
• 16 DDR5 DIMM slots, supports RDIMM 1.5 TB max
• Speeds up to 4800 MT/s on the 4th Generation Intel® Xeon Scalable processor
• Speeds up to 5200 MT/s on the 5th Generation Intel® Xeon Scalable processor
• Supports registered ECC DDR5 DIMMs only
Storage controllers:
• Internal PERC: fPERC H965i, fPERC H755N, fPERC H755, fPERC H355, fPERC HBA355i, HBA465i fPERC
• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSD drives, or USB
• External HBA (non-RAID): PERC HBA355e
• Software RAID: S160 (for NVMe drives only)
Drive Bays (Front bays):
• Up to 12 x 3.5-inch SAS/SATA HDD drives, max 180 TB
• Up to 8 x 3.5-inch SAS/SATA HDD drives, max 120 TB
• Up to 8 x 3.5-inch SAS/ SATA HDD + 8 x 2.5-inch NVMe SSD drives, max 240 TB
• Up to 8 x 2.5-inch SAS/SATA HDD drives, max 120 TB
• Up to 16 x 2.5-inch SAS/SATA HDD drives, max 240 TB
• Up to 24 x 2.5-inch SAS/SATA HDD drives, max 360 TB
Power Supplies:
• 600 W Platinum 100-240 VAC/240 VDC
• 700 W Titanium 200-240 VAC/240 VDC
• 800 W Platinum 100-240 VAC/240 VDC
• 1100 W Titanium 100-240 VAC/240 VDC
• 1100 W DC/-48-(-60) V
• 1400 W Platinum 100-240 VAC/240 VDC
• 1400 W Titanium 100-240 VAC/240 VDC
• 1400 W Titanium 277 VAC/336 VDC
• 1800 W Titanium 200-240 VAC/240 VDC
• 2400 W Platinum 100-240 VAC/240 VDC
• 2800 W Titanium 200-240 VAC/240 VDC
Dimensions:
• Height — 464.0 mm (18.26 inches) (with feet)
508.8 mm (20.03 inches) (with caster wheels)
446.0 mm (17.60 inches) (without feet)
• Width — 200.0 mm (7.87 inches)
• Depth — 678.2 mm (26.70 inches) (with bezel)
660.6 mm (26 inches) (without bezel)
Embedded Management:
• iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish
• iDRAC Service Module
• Quick Sync 2 wireless module
OpenManage Software:
• OpenManage Enterprise
• OpenManage Power Manager plugin
• OpenManage Service plugin
• OpenManage Update Manager plugin
• CloudIQ for PowerEdge plug in
• OpenManage Enterprise Integration for VMware vCenter
• OpenManage Integration for Microsoft System Center
• OpenManage Integration with Windows Admin Center
Security:
• Cryptographically signed firmware
• Data at Rest Encryption (SEDs with local or external key mgmt)
• Secure Boot
• Secure Erase
• Secured Component Verification (Hardware integrity check)
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC 2 x 1GbE LOM on Planar
Network Options:
1 x OCP x8 card 3.0
Note: The system allows both LOM on planar and OCP card to be installed on the system.
GPU Options Up to 2 x 300 W DW or 6 x 75 W SW
Ports:
Front Ports
• 1 x USB 2.0
• 1 x USB 3.0
• 1 x iDRAC Direct (Micro-AB USB) port
Rear Ports
• 1 x USB 2.0
• 1 x USB 3.0
• 1 x Serial port (optional)
• 1 x Dedicated iDRAC (RJ45) port
• 1 x VGA port
• 2 x Ethernet ports
Internal Ports
• 1 x USB 3.0 (optional)
PCIe:
Up to six PCIe slots:
• Slot 1: x16 Gen5 Full height, Full length
• Slot 2: x16 Gen5 Full height, Full length
• Slot 3: x16 Gen4 Full height, Half length
• Slot 4: x16 Gen4 Full height, Half length
• Slot 5: x16 (x8 lanes) Gen4 Full height, Half length
• Slot 6: x16 Gen4 Full height, Half length
Operating System and Hypervisors:
 Canonical Ubuntu Server LTS
• Microsoft Windows Server with Hyper-V
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi
For specifications and interoperability details, see Dell.com/OSsupport.
OEM-ready version available:
From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information,
visit Dell.com -> Solutions -> OEM Solutions
