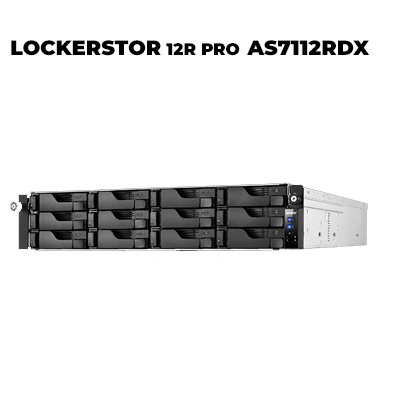

Asustor LOCKERSTOR 12R Pro AS7112RDX
CPU: Intel Xeon E-2224
RAM: 8GB SO-DIMM DDR4, 8GB eMMC
HDD: 12 x SATA3 6Gb/s; 3.5" HDD
M.2 Drive Slots: 2x M.2 PCIe (NVMe) / SATA
External port: USB 3.2 Gen 1 x4
Network: Front USB 3.2 Gen 2 x 4 Type-A ; USB 3.2 Gen 2 x 2 Type-C
HDMI Output : N/A
PCIe Expansion Slots: 2 x Gen3 x4 slots (x4 link) ;1 x Gen3 x8 slots (x8 link)
for optional 10/25/40/50 GbE card and SAS card
Power Supply Unit / Adapter : 550W x2
Hardware Specifications
CPU Model Intel Xeon E-2224
CPU Architecture x64 64-bit
CPU Frequency Quad-Core 3.4GHz up to 4.6GHz
Memory 8GB DDR4 ECC UDIMM
Memory Module Pre-installed 8GB (1 x 8GB)
Total Memory Slots 4
Memory Expandable up to 128GB (4 x 32GB)
Support mixed capacity
Flash Memory 8GB USB DOM
Storage HDD 12 x SATA3 6Gb/s; 3.5"/2.5" HDD/SSD
M.2 Drive Slots 2x M.2 PCIe (NVMe) / SATA;M.2 22110, 2280, 2260, 2242.
Maximum Internal Raw Capacity 216TB
(18 TB HDD X 12, Capacity may vary by RAID types)
Maximum Drive Bays with Expansion Unit 36
Maximum Raw Capacity with Expansion Units 360TB (18 TB HDD X 20, Capacity may vary by RAID & M.2 types)
Expansion USB 3.2 Gen 2 x 4 Type-A ; USB 3.2 Gen 2 x 2 Type-C
Network Gigabit Ethernet x 4 (1G/100M)
PCIe Expansion:: 2 x Gen3 x4 slots (x4 link) ; 1 x Gen3 x8 slots (x8 link) for optional 10/25/40/50 GbE card and SAS card
HDMI Output N/A
Power Supply Unit / Adapter 550W x2
