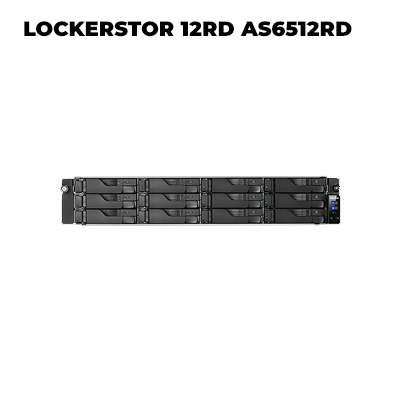

Asustor LOCKERSTOR 12RD AS6512RD
CPU: Intel ATOM C3538
RAM: 8GB SO-DIMM DDR4
HDD: 12 x SATA3 6Gb/s; 3.5" HDD
External port: USB 3.2 Gen 1 x4
Network: Gigabit Ethernet (1G/100M) x 2
2.5 Gigabit Ethernet (2.5G/1G/100M) x 2
HDMI Output : N/A
PCIe Expansion Slots: PCIe 3.0 x8 slot (black, x4 link)
Power Supply Unit / Adapter 350W x2
Hardware Specifications
CPU Model Intel ATOM C3538
CPU Architecture x64 64-bit
CPU Frequency Quad-Core 2.1GHz
Memory 8GB SO-DIMM DDR4
Memory Module Pre-installed 8GB (1 x 8GB)
Total Memory Slots 4 Memory Expandable up to 128GB (4x 32GB)
Support mixed capacity Flash Memory 8GB eMMC
Storage HDD 12 x SATA3 6Gb/s 3.5"/2.5" HDD/SSD
Maximum Internal Raw Capacity 216 TB
(18 TB HDD X 12, Capacity may vary by RAID types)
Maximum Drive Bays with Expansion Unit 24
Maximum Raw Capacity with Expansion Units 432 TB
(18 TB HDD X 24, Capacity may vary by RAID types)
External Ports Expansion USB 3.2 Gen 1 x4
Network Gigabit Ethernet (1G/100M) x 2; 2.5 Gigabit Ethernet (2.5G/1G/100M) x 2
PCIe Expansion Slots PCIe Expansion Slots: PCIe 3.0 x8 slot (black, x4 link)
HDMI Output N/A
Power Supply Unit / Adapter 350W x2
MSP: 16 x 3,5 inch 8GB
MSP: 12 x 3,5 inch 8GB
MSP: 10 x 3,5 inch 8GB
MSP: AS6504RS AS6504RD
MSP: 10 x 3,5 inch 8GB
MSP: 8 x 3,5 inch 8GB
MSP: 4 x 3,5 inch 4GB
MSP: 2 x 3,5 inch 4GB
