Dell Poweredge R540 Silver 4210R

priceValidUntil
64,500,000 đ
    Mã sản phẩm: 2TB NLSAS 12 x 3,5 inch

    Bảo hành: 48 Tháng

  • CPU: Intel Xeon Silver 4210R 13.75M Cache 2.40 GHz
  • RAM: 16GB RDIMM 3200MT/s Dual Rank CK
  • HDD/SSD: 2TB 7.2K RPM NLSAS 12Gbps 3.5in Hotplug
  • RAID: PERC H730P
  • Khe cắm pci: 1 x FH/FL + 1 x HH/HL (2U Right riser) slots + 3HH/HL slots,iDRAC9
  • Network: On-Board Broadcom 5720 Dual Port 1Gb LOM
  • DVD: DVD+/-RW
  • Nguồn: 750W (1+1)
Số lượng

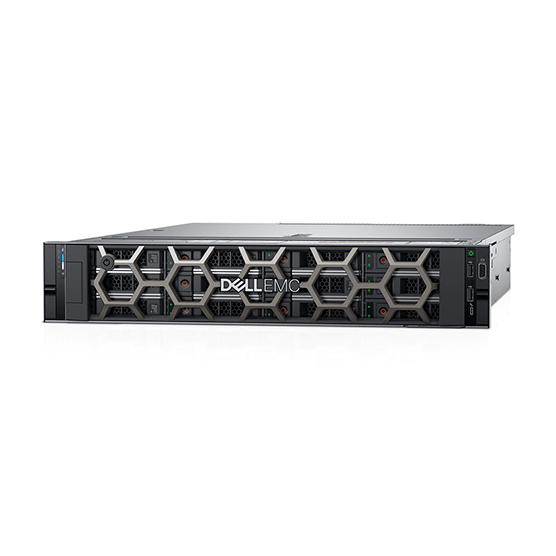

Máy chủ Dell EMC Poweredge R540

Form Factor: 2U rackmount

Processor: Intel Xeon Silver 4210R 2.4GHz Processor, 10C/20T, 9.6GT/s, 13.75M Cache

Memory: Dell 16GB RDIMM, 3200MT/s, Dual Rank,CK

Hard Drive: Dell 2TB 7.2K RPM NLSAS 12Gbps 3.5in Hot-plug Hard Drive

Support Up to 12 x 3.5” HDD: SAS, SATA, nearline SAS SSD: SAS, SATA

Raid Controller: PERC H730P  PCIe SAS 12Gb/s RAID Controller, 2Gb NV Cache

PCI-Express Slots: 1 x FH/FL + 1 x HH/HL (2U Right riser) slots + 3HH/HL slots

Network Controller: On-Board Broadcom 5720 Dual Port 1Gb LOM

Remote management : iDRAC9 Enterprise with Lifecycle Controller

Optical Drive: DVD+/-RW, SATA, Internal

Power Supply: Single, Hot-plug, Redundant Power Supply (1+1), 750W

Bộ vi xử lý CPU / PROCESSOR:

    x
    x
    x

Bộ nhớ RAM / MEMORY:

    x

Ổ đĩa cứng SAS:

x Tray khi chọn option sas
    x

Tech Specs & Customization ( Thông số kỹ thuật )

Processor Up to two 2nd Generation Intel® Xeon® Scalable processors with up to 20 cores per processor

Operating System

Canonical® Ubuntu® Server LTS
Citrix® Hypervisor ®
Microsoft® Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®

Memory DIMM Speed Up to 2666MT/s

Memory Type RDIMM,LRDIMM

Memory Module Slots 16 DDR4 DIMM slots
Supports registered ECC DDR4 DIMMs only

Maximum RAM RDIMM 512GB,LRDIMM 1TB

Storage

Front Bays
Up to 12 x 3.5” SAS/SATA HDD max 168TB
DVD-ROM, DVD+RW (optional)

Rear Bays
Up to 2 x 3.5” SAS/SATA HDD max 28TB

Storage Controllers

Internal Controllers PERC H330, H730P, H740P, HBA330

External Controllers H840, 12 Gbps SAS HBA

Software RAID S140

Internal Boot Boot Optimized Storage Subsystem (BOSS):
HWRAID 2 x M.2 SSDs 240GB, 480 GB

Internal Dual SD Module

Management

Embedded / At-the-Server
iDRAC9
iDRAC RESTful API with Redfish
iDRAC Direct
Quick Sync 2 BLE/wireless module
Consoles
OpenManage Enterprise
OpenManage Power Center
Mobility OpenManage Mobile
Tools
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs
iDRAC Service Module
OpenManage Server Administrator
OpenManage Storage Services
OpenManage Integrations
BMC Truesight
Microsoft® System Center
RedHat® Ansible® Modules
VMware® vCenter
OpenManage Connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager I
Nagios® Core
Nagios® XI

Power Supplies

495W Platinum
750W Platinum
750W 240HVDC Platinumi
1100W Platinum
1100W 380V HDC Platinumi
Hot plug power supplies with full redundancy option

Ports

Network Options
2 x 1GbE LOM +
(optional) LOM Riser 2 x 1GbE, or
2 x 10GE SFP+, or
2 x 10GE BaseT
 Front Ports
1 x Dedicated iDRAC direct USB
1 x USB 2.0
1 x Video
Rear Ports
1 x Dedicated iDRAC network port
1 x Serial
2 x USB 3.0
1 x Video

Slots

Pcle Non-rear storage config
1 x full height/full length
1 x half height/half length (2U Right riser) slots
3 x half height/half length slots
Rear storage config
1 x half height/half length (1U left riser)
1 x half height/half length or 1full height/half length (1U right riser)

Bezel Optional LCD bezel or security bezel

Form Factor 2U Rack Server

Dimensions & Weight

Height 86.8mm (3.41")
Width 434mm (17.08'')
Depth 703.76mm (27.71”)
Weight 29.68kg (65.43lbs.)

Rack Support

ReadyRails™ sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks).

Recommended Support

Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region
