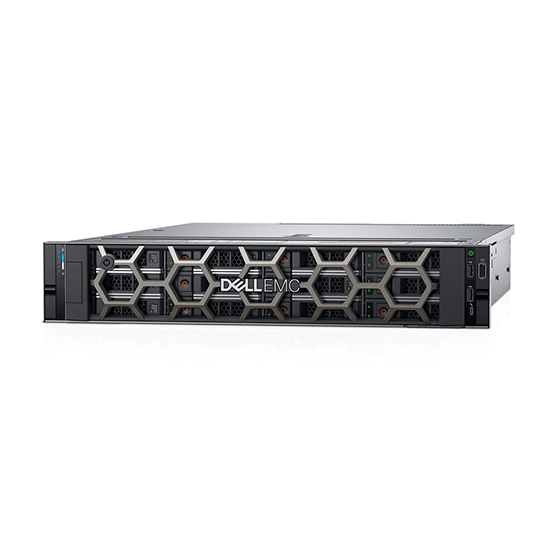

Máy chủ Dell EMC Poweredge R540
Form Factor: 2U rackmount
Processor: Intel Xeon Silver 4210R 2.4GHz Processor, 10C/20T, 9.6GT/s, 13.75M Cache
Memory: Dell 16GB RDIMM, 3200MT/s, Dual Rank,CK
Hard Drive: Dell 2TB 7.2K RPM NLSAS 12Gbps 3.5in Hot-plug Hard Drive
Support Up to 8 x 3.5” HDD: SAS, SATA, nearline SAS SSD: SAS, SATA
Raid Controller: PERC H730P PCIe SAS 12Gb/s RAID Controller, 2Gb NV Cache
Network Controller: On-Board Broadcom 5720 Dual Port 1Gb LOM
PCI-Express Slots: 1 x FH/FL + 1 x HH/HL (2U Right riser) slots + 3HH/HL slots
Remote management : iDRAC9 Enterprise with Lifecycle Controller
Optical Drive: DVD+/-RW, SATA, Internal
Power Supply: Single, Hot-plug, Redundant Power Supply (0+1), 750W
Tech Specs & Customization ( Thông số kỹ thuật )
Processor Up to two 2nd Generation Intel® Xeon® Scalable processors with up to 20 cores per processor
Operating System
Canonical® Ubuntu® Server LTS
Citrix® Hypervisor ®
Microsoft® Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®
Memory DIMM Speed Up to 2666MT/s
Memory Type RDIMM,LRDIMM
Memory Module Slots 16 DDR4 DIMM slots
Supports registered ECC DDR4 DIMMs only
Maximum RAM RDIMM 512GB,LRDIMM 1TB
Storage
Front Bays
Up to 12 x 3.5” SAS/SATA HDD max 168TB
DVD-ROM, DVD+RW (optional)
Rear Bays
Up to 2 x 3.5” SAS/SATA HDD max 28TB
Storage Controllers
Internal Controllers PERC H330, H730P, H740P, HBA330
External Controllers H840, 12 Gbps SAS HBA
Software RAID S140
Internal Boot Boot Optimized Storage Subsystem (BOSS):
HWRAID 2 x M.2 SSDs 240GB, 480 GB
Internal Dual SD Module
Management
Embedded / At-the-Server
iDRAC9
iDRAC RESTful API with Redfish
iDRAC Direct
Quick Sync 2 BLE/wireless module
Consoles
OpenManage Enterprise
OpenManage Power Center
Mobility OpenManage Mobile
Tools
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs
iDRAC Service Module
OpenManage Server Administrator
OpenManage Storage Services
OpenManage Integrations
BMC Truesight
Microsoft® System Center
RedHat® Ansible® Modules
VMware® vCenter
OpenManage Connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager I
Nagios® Core
Nagios® XI
Power Supplies
495W Platinum
750W Platinum
750W 240HVDC Platinumi
1100W Platinum
1100W 380V HDC Platinumi
Hot plug power supplies with full redundancy option
Ports
Network Options
2 x 1GbE LOM +
(optional) LOM Riser 2 x 1GbE, or
2 x 10GE SFP+, or
2 x 10GE BaseT
Front Ports
1 x Dedicated iDRAC direct USB
1 x USB 2.0
1 x Video
Rear Ports
1 x Dedicated iDRAC network port
1 x Serial
2 x USB 3.0
1 x Video
Slots
Pcle Non-rear storage config
1 x full height/full length
1 x half height/half length (2U Right riser) slots
3 x half height/half length slots
Rear storage config
1 x half height/half length (1U left riser)
1 x half height/half length or 1full height/half length (1U right riser)
Bezel Optional LCD bezel or security bezel
Form Factor 2U Rack Server
Dimensions & Weight
Height 86.8mm (3.41")
Width 434mm (17.08'')
Depth 703.76mm (27.71”)
Weight 29.68kg (65.43lbs.)
Rack Support
ReadyRails™ sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks).
