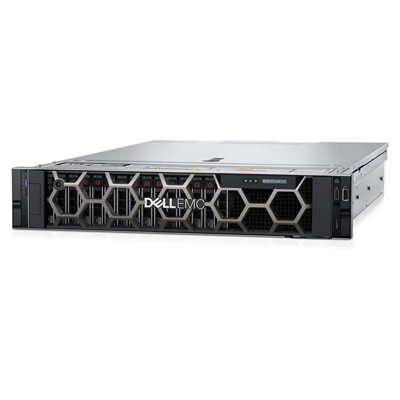

Dell Poweredge R550 Silver 4310

85,000,000 đ
    Mã sản phẩm: 1.2TB 10K 8 x 2,5 inch H755

    Bảo hành: 36 Tháng

  • CPU: Intel Xeon Silver 4310 2.1Ghz 12C/24T 18M Cache Turbo HT (120W)
  • RAM: Dell 16GB RDIMM 3200MT/s, Dual Rank,CK
  • HDD/SSD: 1.2TB 10K RPM SAS 12Gbps 512n 2.5in Hot-plug
  • RAID: PERC H755
  • PCIe: 3x Gen 4 PCIe slots and 1x Gen 3 PCIe slot
  • Network: 2 x 1 GbE LOM,iDRAC9Ent
  • Optical Drive: DVD Ext
  • Power Supply: Single, Hot-Plug, Power Supply (1+0), 600W
  • Lượt xem: 3803
Số lượng

Máy chủ Dell EMC Poweredge R550 8x2.5"

Form Factor: 2U rackmount

Processor: Intel Xeon Silver 4310 2.1Ghz 12C/24T 18M Cache Turbo HT (120W)

Memory: Dell 16GB RDIMM 3200MT/s, Dual Rank,CK

Hard Drive: 1.2TB 10K RPM SAS 12Gbps 512n 2.5in Hot-plug

Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 7.68 TB

Raid Controller: PERC H755

PCI-Express Slots: 3x Gen 4 PCIe slots and 1x Gen 3 PCIe slot

Network Controller: 2 x 1 GbE LOM

Remote management : iDRAC9Ent

Optical Drive: DVD Ext

Power Supply: Single, Hot-Plug, Power Supply (1+0), 600W

Bộ vi xử lý CPU / PROCESSOR:

    x

Bộ nhớ RAM / MEMORY:

    x

Ổ đĩa cứng SAS:

x Tray khi chọn option sas
    x

Tech Specs & Customization:
Processor:
Up to two 3rd Generation Intel® Xeon® Scalable processors with up to 24 cores per processor

Operating System
Canonical® Ubuntu® Server LTS
Citrix® Hypervisor®
Microsoft® Windows Server® with Hyper-V
RedHat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®

Chipset: Intel® C620A chipset

Memory: DIMM ; Speed Up to 2933 MT/s

Memory Type: RDIMM

Memory Module Slots 16 DDR4 DIMM slots

Maximum RAM RDIMM 1 TB

Storage
Front Bays
Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 7.68 TB
Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 7.68 TB
Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 16 TB

Storage Controllers
Internal Controllers: PERC H345, PERC H745, PERC H755, HBA355i

External Controllers PERC H840, HBA355e

Software RAID S150

Internal Boot
Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB
Internal Dual SD Module
USB 3.0

Security
Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Management
Embedded / At-the-Server
iDRAC9
iDRAC Service Module
iDRAC Direct
Quick Sync 2 wireless module

Consoles
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage SupportAssist plugin
OpenManage Update Manager plugin

Mobility OpenManage Mobile

Tools
iDRAC RESTful API with Redfish
IPMI
RACADM CLI
System Update Utility
Update Catalogs

OpenManage Integrations
BMC® Truesight
Microsoft® System Center
RedHat® Ansible® Modules
VMware® vCenter and vRealize Operations Manager

OpenManage connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager
Nagios® Core
Nagios® XI

Power Supplies
1100 W DC/-48–(-60) V
800 W Platinum AC/240 HVDC
600 W Platinum AC/240 HVDC
Hot plug power supplies with full redundancy option
Up to 5 cold swap fans

Ports
Network Options: 2 x 1 GbE LOM and 1 x OCP 3.0 (x8 PCIe lanes) (optional)

Front Ports
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0
1 x VGA

Rear Ports
1 x USB 2.0
1 x USB 3.0
1 x Serial (optional)
1 x Ethernet
1 x VGA

Internal Ports 1 x USB 3.0 (optional)

Slots 3 x Gen 4 PCIe slots, 1 x Gen3 PCIe slot

Video Card 1 x VGA

Bezel Optional LCD bezel or security bezel

Form Factor 2U rack server

Dimensions & Weight
Height 86.8 mm (3.41 inches)

Width
434.0 mm (17.08 inches) — without bezel
482.0 mm (18.97 inches) — with bezel

Depth 721.69 mm (28.72 inches)

Weight 24.80 kg (54.67 lbs.)
