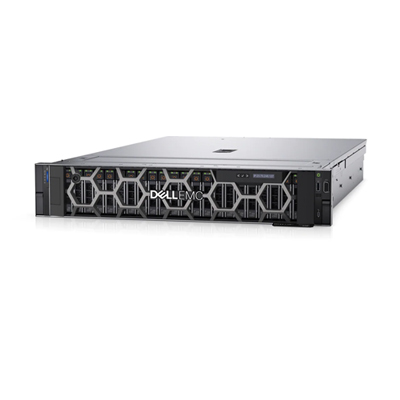

Dell Poweredge R750 Silver 4310

124,500,000 đ
    Mã sản phẩm: 12x3.5in + 4x2.5in H755

    Bảo hành: 36 Tháng

  • CPU: Intel Xeon Silver 4310 2.1Ghz 12C/24T 18M Cache Turbo HT (120W)
  • RAM: Dell 16GB RDIMM 3200MT/s, Dual Rank,CK
  • HDD/SSD: 2TB 7.2K RPM NLSAS, 1.2TB 10k RPM SAS Hot-plug
  • RAID: PERC H755
  • PCIe: Up to 8 x PCIe Gen4 slots (up to 6 x16)
  • Network: 2 x 1 GbE LOM and 1 x OCP 3.0 (x8 PCIe lanes)
  • Optical Drive: DVD Ext
  • Power Supply: Dual, Hot-plug, Redundant Power Supply (1+1), 1100W
  • Lượt xem: 2849
Số lượng

Máy chủ Dell EMC Poweredge R750 12x3.5" + 4x3.5"

Form Factor: 2U rackmount

Processor: Intel Xeon Silver 4310 2.1Ghz 12C/24T 18M Cache Turbo HT (120W)

Memory: Dell 16GB RDIMM 3200MT/s, Dual Rank,CK

Hard Drive: 2TB 7.2K RPM NLSAS 12Gbps 512n 3.5'' Hot-plug

Hard Drive: 1.2TB 10k RPM SAS 12Gbps 2.5" FlexBay Hotplug

Raid Controller: PERC H755

PCI-Express Slots: Up to 8 x PCIe Gen4

Network Controller: DP 1GbE LOM + BC5720QP OCP

Remote management : iDRAC9Ent

Optical Drive: DVD Ext

Power Supply: Dual, Hot-plug, Redundant Power Supply (1+1), 1100W

Bộ vi xử lý CPU / PROCESSOR:

    x

Bộ nhớ RAM / MEMORY:

    x

Ổ đĩa cứng SAS:

x Tray khi chọn option sas
    x
    x

đồng ý chọn cấu hình

Tech Specs & Customization
Processor
Up to two 3rd Generation Intel® Xeon® Scalable processors, with up to 40 cores per processor
Direct Contact Liquid Cooling (DCLC) option: Yes

Operating System
Canonical® Ubuntu® Server LTS
Citrix® Hypervisor®
Microsoft® Windows Server® with Hyper-V
RedHat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®

Chipset
Intel® C620 series chipset

Accelerators
Up to two double-width 300 W, or four single-width 150 W, or six single-width 75 W accelerators

Memory
DIMM Speed
Up to 3200 MT/s

Memory Type
RDIMM
LRDIMM
NVDIMM
Intel® Persistent Memory 200 series (BPS)

Memory Module Slots
32 DDR4 DIMM slots

Maximum RAM RDIMM
RDIMM 2 TB
LRDIMM 8 TB
NVDIMM 128 TB
Intel Persistent Memory 200 series (BPS) 8 TB

Storage
Front Bays
Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB
Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB
Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB
Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB

Rear Bays
Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB

Storage Controllers
Internal Controllers: PERC H745, HBA355I, PERC H345, PERC H755, PERC H755N

External Controllers: PERC H840, HBA355E

Software RAID: S150

Internal Boot
Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB
Boot Optimized Storage Subsystem (BOSS-S1):HWRAID 2 x M.2 SSDs 240 GB or 480
Internal Dual SD Module or USB

Security
Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Management
Embedded / At-the-Server
iDRAC9
iDRAC Service Module
iDRAC Direct
Quick Sync 2 wireless module

Consoles
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage SupportAssist plugin
OpenManage Update Manager plugin

Mobility: OpenManage Mobile

Tools
RACADM CLI
iDRAC RESTful API with Redfish
IPMI
System Update Utility
Update Catalogs

OpenManage Integrations
BMC® Truesight
Microsoft® System Center
RedHat® Ansible® Modules
VMware® vCenter and vRealize Operations Manager

OpenManage connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager
Nagios® Core
Nagios® XI

Power Supplies
800 W Platinum AC/240 VMixed Mode
1100 W Titanium /240 V Mixed Mode
1100 W DC -48 - -60 V
1400 W Platinum AC/240 V Mixed Mode
2400 W Platinum AC/240 V Mixed Mode
Hot plug power supplies with full redundancy option

Ports
Network Options 2 x 1 GbE LOM and 1 x OCP 3.0 (x8 PCIe lanes) (optional)

Front Ports
1 x Dedicated iDRAC Direct micro-USB
1 x USB 2.0
1 x VGA

Rear Ports
1 x USB 2.0
1 x USB 3.0
1 x Serial (optional)
2 x RJ-45
1 x VGA (optional for liquid cooling configuration)

Internal Ports 1 x USB 3.0

Slots: PCIe Up to 8 x PCIe Gen4 slots (up to 6 x16) with support for SNAP I/O modules

Video Card: 1 x VGA (optional for liquid cooling configuration)

Bezel: Optional LCD bezel or security bezel

Form Factor: 2U rack server

Dimensions & Weight
Height 86.8 mm (3.41 inches)

Width 482.0 mm (18.97 inches)

Depth 758.29 mm (29.85 inches) – without bezel ; 772.13 mm (30.39 inches) – with bezel

Weight 31.8 kg (70.10 lbs)

Rack Support
ReadyRails™ II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks.Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks.
ReadyRails static rails for 4-post and 2-post racks.

Recommended Support
Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your. PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region
