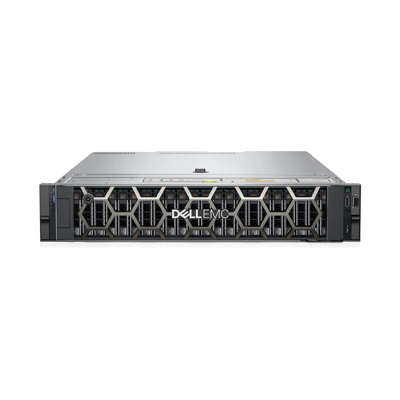

Máy chủ Dell EMC Poweredge R750xs 8x3.5"
Form Factor: 2U rackmount
Processor: Intel Xeon Silver 4310 2.1Ghz 12C/24T 18M Cache Turbo HT (120W)
Memory: Dell 16GB RDIMM 3200MT/s, Dual Rank,CK
Hard Drive: 2TB 7.2K RPM NLSAS 12Gbps 512n 3.5'' Hot-plug Hard Drive
Raid Controller: PERC H755
PCI-Express Slots: Up to 5 x PCIe Gen4 slots / 1 x PCie Gen3 slots
Network Controller: DP 1GbE LOM + BC5720QP OCP
Remote management : iDRAC9Ent
Optical Drive: DVD
Power Supply: Dual, Hot-plug, Redundant Power Supply (1+1), 800W
Feature Technical Specifications
Processor Up to two 3rd Generation Intel Xeon Scalable processors with up to 32 cores
Memory:16 DDR4 DIMM slots, supports RDIMM 1 TB max, speeds up to 3200 MT/s
• Supports registered ECC DDR4 DIMMs only
Storage controllers: Internal controllers: PERC H345, PERC H745, PERC H755, PERC H755N, HBA355i, S150
• Internal Boot: Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSSS1): HWRAID 2 x M.2 SSDs, USB
• External PERC (RAID): PERC H840, HBA355e
Drive Bays Front bays:
• 0 drive bay
• Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB
• Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB
• Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
• Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB
• Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/SSD) max 184.32 TB
Rear bays:
• Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.36 TB
Power Supplies: 600 W DC/240 V
• 600 W Platinum AC/100 - 240 V
• 800 W DC/240 V
• 800 W Platinum AC/100 - 240 V
• 1100 W DC/-48–(-60) V
• 1100 W DC/240 V
• 1100 W Titanium AC/100 - 240 V
• 1400 W DC/240 V
• 1400 W Platinum AC/100 - 240 V
Cooling options Air cooling
Fans • Standard fans/High performance Silver fans/High performance Gold fans
• Up to six hot swap fans
Dimensions • Height – 86.8 mm (3.41 inches)
• Width – 482.0 mm (18.97 inches)
• Depth – 707.78 mm (27.85 inches) – without bezel
721.62 mm (28.4 inches) – with bezel
Form Factor 2U rack server
Embedded Management • iDRAC9
• iDRAC Service Module
• iDRAC Direct
• Quick Sync 2 wireless module
Bezel Optional LCD bezel or security bezel
OpenManage Software: OpenManage Enterprise
• OpenManage Power Manager plugin
• OpenManage SupportAssist plugin
• OpenManage Update Manager plugin
Mobility OpenManage Mobile
Integrations and Connections: BMC Truesight
• Microsoft System Center
• OpenManage Integrations
• Red Hat Ansible Modules
• VMware vCenter and vRealize Operations Manager
• IBM Tivoli Netcool/OMNIbus
• IBM Tivoli Network Manager IP Edition
• Micro Focus Operations Manager
• OpenManage Connections
• Nagios Core
• Nagios XI
Security: Cryptographically signed firmware
• Secure Boot
• Secure Erase
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC 2 x 1 GbE LOM
Network Options: 1 x OCP 3.0
GPU Options Not supported
Ports Front Ports
• 1 x iDRAC Direct (Micro-AB USB) port
• 1 x USB 2.0
• 1 x VGA
Rear Ports
• 1 x USB 2.0
• 1 x Serial (optional)
• 1 x USB 3.0
• 2 x Ethernet
• 1 x VGA
Internal Ports
• 1 x USB 3.0 (optional)
PCIe Up to 5 x PCIe Gen4 slots / 1 x PCie Gen3 slots
Operating System and Hypervisors: Canonical Ubuntu Server LTS
• Citrix Hypervisor
• Microsoft Windows Server with Hyper-V
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi
Intel Xeon Silver 4510 2.4Ghz 12C/24T 30M Cache
Dell 16Gb 4800 DDR5 ECC RDIMM
Dell 4TB 7.2K RPM NLSAS 12Gbps 512n 3.5in Hot-plug
1 CPU Configuration: Up to 4 PCIe slots
Broadcom 5720 Dual 1GbE LOM, Broadcom 57414 Dual Port 10/25GbE SFP28
PERC H755 8Gb NV Cache
DVD Ext
Dual, Hot-plug, Redundant Power Supply (1+1), 800W
