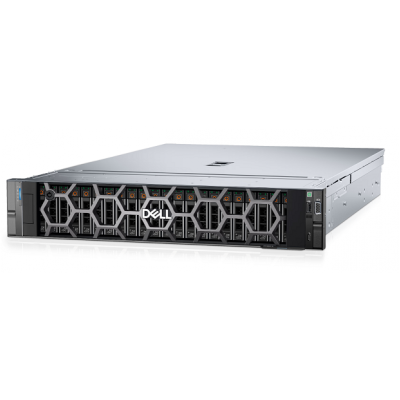

Dell Poweredge R760

Liên hệ đ
    Mã sản phẩm: DELL-R760-Rack Server-2U

    Bảo hành: 36 tháng

  • CPU: Intel® Xeon® Gold 6430 2.1G, 32C/64T, 16GT/s, 60M Cache, Turbo, HT (270W)
  • RAM: DDR5 32GB RDIMM, 4800MT/s Dual Rank
  • HDD/SSD: Options
  • RAID: PERC H755 with rear load Brackets
  • PCIe: Up to 8 PCIe slots
  • Network: Broadcom 57416 Dual Port 10GbE BASE-T Adapter, OCP NIC 3.0. Broadcom 5720 Dual Port 1GbE Optional LOM
  • Optical Drive: External
  • Power Supply: 2x 1400W (100-240Vac) Hot-Plug Power Supply
  • Lượt xem: 788
Số lượng



PowerEdge R660 Server

· 2x Intel® Xeon® Gold 6430 2.1G, 32C/64T, 16GT/s, 60M Cache, Turbo, HT (270W) DDR5-4400

· 2x 32GB RDIMM, 4800MT/s Dual Rank

· PERC H755 with rear load Brackets

· 6x High Performance Fans

· Dual, Fully Redundant(1+1), Hot-Plug Power Supply,1400W MM(100-240Vac) Titanium

· Broadcom 57414 Dual Port 10GbE BASE-T Adapter, OCP NIC 3.0

· Broadcom 5720 Dual Port 1GbE Optional LOM

· iDRAC9, Enterprise 16G

· ProSupport and Next Business Day Onsite Service-ACDTS, 36 Month(s)

Bộ vi xử lý CPU / PROCESSOR:

Bộ nhớ RAM / MEMORY:

RAID CONTROLLER:

Ổ đĩa SSD / Solid State Drive:

x Tray khi chọn option ssd

Ổ đĩa cứng SAS:

x Tray khi chọn option sas

Ổ đĩa cứng SATA:

x Tray khi chọn option hdd

Ổ đĩa quang / Optical Drive:

Card mạng Network Adapter / HBA:

Card màn hình / Graphics Card:

DVD:

Phụ kiện / Accessories:

Màn hình / Monitor / KVM:

Bộ lưu điện / UPS:

Hệ điều hành / Operating System / Software:

đồng ý chọn cấu hình

PROCESSOR - 2 SOCKET

  • Up to two 4th Generation Intel Xeon Scalable processors
  • Up to 56 Cores per CPU
  • Optional Intel QuickAssist Technology

MEMORY

  • 32x DDR5 DIMM slots
  • Supports RDIMM 8TB max
  • Speed: Up to 4800MT/s

STORAGE

Front Bays

  • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB
  • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
  • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB
  • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB

Rear Bays

  • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
  • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB

GPU OPTIONS

  • Up to 2 x 350 W DW and 6 x 75 W SW

EXPANSION SLOTS

  • Up to 8x PCIe Ports:
  • Slot 1: 1 x8 Gen5 or 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length
  • Slot 2: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length or 1 x16 Gen5 Full height, Full length
  • Slot 3: 1 x16 Gen4 Low profile, Half length
  • Slot 4: 1 x8 Gen4 Full height, Half length
  • Slot 5: 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length
  • Slot 6: 1 x16 Gen4 Low profile, Half length
  • Slot 7: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length
  • Slot 7 SNAPI: 1 x16 Gen5 Full height, Half length
  • Slot 8: 1 x8 Gen5 or 1 x8 Gen4 Full height, Half length

CONTROLLERS

  • Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
  • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB
  • External HBA (non-RAID): HBA355e
  • Storage RAID: S160

NETWORK OPTIONS

  • 1 x OCP card 3.0 (optional)
  • *Note: The system allows either LOM card or an OCP card or both to be installed in the system.

PORTS

Internal Ports

  • 1 x USB 3.0 (optional)

Front Ports

  • 1 x iDRAC Direct (Micro-AB USB) port
  • 1 x USB 2.0
  • 1 x VGA

Rear Ports

  • 1 x USB 2.0
  • 1 x USB 3.0
  • 1 x Serial (optional)
  • 1 x Dedicated iDRAC Ethernet port
  • 1 x VGA
  • 1 x VGA (optional for Direct Liquid Cooling configuration)

OS COMPATIBILITY

  • Canonical Ubuntu Server LTS
  • Microsoft Windows Server with Hyper-V
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise Server
  • VMware ESXi

POWER SUPPLY

  • 2800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
  • 2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
  • 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
  • 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
  • 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant
  • 1100 W LVDC -48 — -60 VDC, hot swap redundant
  • 800 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
  • 700 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant

COOLING OPTIONS

  • Air cooling
  • Optional Direct Liquid Cooling (DLC)
  • *Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate

MANAGEMENT

Embedded/At-the-server

  • iDRAC9
  • iDRAC Service Module
  • iDRAC RESTful API with Redfish
  • iDRAC Direct
  • Quick Sync 2 wireless module

OPENMANAGE

Integrations

  • BMC® Truesight
  • Microsoft® System Center
  • OpenManage Integration with ServiceNow
  • Terraform Providers
  • Red Hat® Ansible® Modules
  • VMware® vCenter and vRealize Operations Manager

Software

  • CloudIQ for PowerEdge plug in
  • OpenManage Enterprise
  • OpenManage Enterprise Integration for VMware vCenter
  • OpenManage Integration for Microsoft System Center
  • OpenManage Integration with Windows Admin Center
  • OpenManage Power Manager plugin
  • OpenManage Service plugin
  • OpenManage Update Manager plugin

Mobility

  • OpenManage Mobile

SECURITY

  • Cryptographically signed firmware
  • Data at Rest Encryption (SEDs with local or external key mgmt)
  • Data at Rest Encryption (SEDs with local or external key mgmt)
  • Secure Erase
  • Secured Component Verification (Hardware integrity check)
  • Silicon Root of Trust
  • System Lockdown (requires iDRAC9 Enterprise or Datacenter)
  • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

CHASSIS

  • Height – 86.8 mm (3.41 inches)
  • Width – 482 mm (18.97 inches)
  • Depth – 772.13 mm (30.39 inches) with bezel
  • Depth – 758.29 mm (29.85 inches) without bezel
