· 2x Intel® Xeon® Silver 4410Y 2G, 12C/24T, 16GT/s, 30M Cache, Turbo, HT (150W)
· 2x 16GB RDIMM, 4800MT/s Single Rank
· PERC H755 Adapter LP
· 6x High Performance Fan
· Dual, Fully Redundant(1+1), Hot-Plug Power Supply,1400W MM(100-240Vac) Titanium
· Broadcom 57414 Dual Port 10GbE BASE-T Adapter, OCP NIC 3.0
· Broadcom 5720 Dual Port 1GbE Optional LOM
· iDRAC9, Enterprise 16G
· ProSupport and Next Business Day Onsite Service-ACDTS, 36 Month(s)

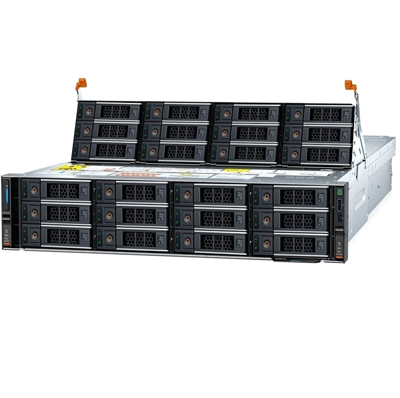

Dell PowerEdge R760xd2 Server - Specifications
PROCESSOR - 2 SOCKETS
- Up to 2x 4th Generation Intel Xeon Scalable processors
- Up to 32 cores per CPU
- Optional Intel QuickAssist Technology
MEMORY
Memory Capacity
- 16x DDR5 DIMM slots
- RDIMM Max: 1TB
- Up to 4800MT/s
GPU OPTIONS
- Up to 2 x 75 W SW, 1 x 75 W SW + 1 x 150 W SW or 1 x 180 W DW
STORAGE CONTROLLERS
- Internal controllers: PERC H755, PERC H965i, HBA355, HBA355i
- Internal boot: USB or Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 SSD drives (hot-swappable), or USB
- External HBAs (non-RAID): HBA355e
DRIVE BAYS
Front Bays:
- Up to 12 x 3.5-inch SAS/SATA max 264 TB
Mid Bays:
- Up to 12 x 3.5-inch SAS/SATA max 264 TB
Rear Bays:
- Up to 4 x 3.5-inch SAS/SATA max 88 TB
- Up to 4 x 2.5-inch NVMe with 3.5-inch carrier max 30.72 TB
- Up to 2 x 2.5-inch NVMe max 15.36 TB
POWER SUPPLIES
- 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
- 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
- 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant
- 1100W LVDC –48 — –60 VDC, hot swap redundant
- 700 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
FANS
- Up to 6x standard (STD) fans, hot swappable
FORM FACTOR
EMBEDDED NIC
NETWORK OPTIONS
- 1 x OCP card 3.0 (optional)
EMBEDDED MANAGEMENT
- iDRAC9
- iDRAC Direct
- iDRAC RESTful API with Redfish
- iDRAC Service Module
OPENMANAGE SOFTWARE
- CloudIQ for PowerEdge plug in
- OpenManage Enterprise
- OpenManage Enterprise Integration for VMware vCenter
- OpenManage Integration for Microsoft System Center
- OpenManage Integration with Windows Admin Center
- OpenManage Power Manager plugin
- OpenManage Service plugin
- OpenManage Update Manager plugin
OPENMANAGE INTEGRATIONS
- BMC Truesight
- Microsoft System Center
- OpenManage Integration with ServiceNow
- Red Hat Ansible Modules
- Terraform Providers
- VMware vCenter and vRealize Operations Manager
PORTS
Front Ports:
- 1 x iDRAC Direct port (Micro-AB USB)
- 1 x USB 2.0
Internal Port:
Rear Port:
- 1 x Dedicated iDRAC Ethernet port
- 1 x USB 2.0
- 1 x USB 3.0
- 1 x VGA
PCIE
- Up to 5x PCIe slots:
- Slot 1: 1 x16 Gen4 Low profile, Half length
- Slot 2: 1 x8 (x16 connector) Gen4 Low profile, Half length or 1 x16 Gen4 Full height, Full length or 1 x16 Gen4 Full height, Half length
- Slot 3: 1 x16 Gen4 Low profile, Half length or 1 x16 Gen4 Full height, Full length or 1 x16 Gen4 Full height, Half length
- Slot 4: 1 x16 Gen4 Low profile, Half length
- Slot 5: 1 x16 Gen4 Low profile, Half length
- *Note: Slot 5 is dedicated for internal PERC card
OPERATING SYSTEM AND HYPERVISORS
- Canonical Ubuntu Server LTS
- Microsoft Windows Server with Hyper-V
- Red Hat Enterprise Linux
- SUSE Linux Enterprise Server
- VMware vSAN/ESXi
CHASSIS
- Enclosure
Height: 86.8 mm (3.41 inches)
Width: 481.6 mm (18.96 inches)
Depth: 837 mm (32.95 inches)
Intel Xeon Silver 4510 2.4Ghz 12C/24T 30M Cache
Dell 16Gb 4800 DDR5 ECC RDIMM
Dell 4TB 7.2K RPM NLSAS 12Gbps 512n 3.5in Hot-plug
1 CPU Configuration: Up to 4 PCIe slots
Broadcom 5720 Dual 1GbE LOM, Broadcom 57414 Dual Port 10/25GbE SFP28
PERC H755 8Gb NV Cache
DVD Ext
Dual, Hot-plug, Redundant Power Supply (1+1), 800W
