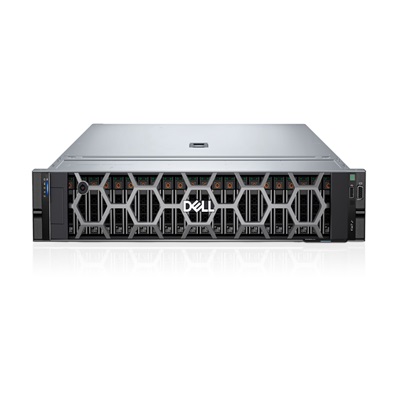

r760xs

Liên hệ đ
    Mã sản phẩm: DELL-R760xs-Rack Server-2U

    Bảo hành: 36 tháng

  • CPU: Intel® Xeon® Gold 6430 2.1G, 32C/64T, 16GT/s, 60M Cache, Turbo, HT (270W)
  • RAM: DDR5 32GB RDIMM, 4800MT/s Dual Rank
  • HDD/SSD: Options
  • RAID: PERC H755 with rear load Brackets
  • PCIe:
  • Network: Broadcom 57414 Dual Port 10GbE BASE-T Adapter, OCP NIC 3.0. Broadcom 5720 Dual Port 1GbE Optional LOM
  • Optical Drive:
  • Power Supply: 2x 1400W (100-240Vac) Hot-Plug Power Supply
  • Lượt xem: 683
Số lượng

PowerEdge R660 Server

· 2x Intel® Xeon® Gold 6430 2.1G, 32C/64T, 16GT/s, 60M Cache, Turbo, HT (270W) DDR5-4400

· 2x 32GB RDIMM, 4800MT/s Dual Rank

· PERC H755 with rear load Brackets

· 5x Standard Fan

· Dual, Fully Redundant(1+1), Hot-Plug Power Supply,1400W MM(100-240Vac) Titanium

· Broadcom 57414 Dual Port 10GbE BASE-T Adapter, OCP NIC 3.0

· Broadcom 5720 Dual Port 1GbE Optional LOM

· iDRAC9, Enterprise 16G

· ProSupport and Next Business Day Onsite Service-ACDTS, 36 Month(s)

Bộ vi xử lý CPU / PROCESSOR:

Bộ nhớ RAM / MEMORY:

RAID CONTROLLER:

Ổ đĩa SSD / Solid State Drive:

x Tray khi chọn option ssd

Ổ đĩa cứng SAS:

x Tray khi chọn option sas

Ổ đĩa cứng SATA:

x Tray khi chọn option hdd

Ổ đĩa quang / Optical Drive:

Card mạng Network Adapter / HBA:

Card màn hình / Graphics Card:

DVD:

Phụ kiện / Accessories:

Màn hình / Monitor / KVM:

Bộ lưu điện / UPS:

Hệ điều hành / Operating System / Software:

đồng ý chọn cấu hình

Dell EMC PowerEdge R760xs Server - Specifications

PROCESSOR - 2 SOCKET

  • Up to two 4th Generation Intel Xeon Scalable processors
  • Up to 32 cores per CPU

MEMORY

  • 16x DDR5 DIMM slots
  • Supports RDIMM 1TB max
  • Speed: Up to 4800MT/s

STORAGE

Front Bays

  • 0 drive bay
  • Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 160 TB
  • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB
  • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
  • Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 121.6 TB
  • Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/ SSD) max 244.48 TB

Rear Bays

  • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
  • *Supported only with 12 x 3.5-inch SAS/SATA HDD/SSD configuration

GPU OPTIONS

  • 2 x 75 W SW, LP

EXPANSION SLOTS

  • 1 CPU Configuration: Up to 4 PCIe slots (2 x8 Gen5, 1 x16 Gen4, 1 x8 Gen4)
  • 22 CPU configuration: Up to 6 PCIe slots (2 x16 Gen5, 3 x16 Gen4, 1 x8 Gen4)

CONTROLLERS

  • Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
  • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs or USB
  • External HBA (non-RAID): HBA355e
  • Software RAID: S160

PORTS

Front Ports

  • 1 x iDRAC Direct (Micro-AB USB) port
  • 1 x USB 2.0
  • 1 x VGA

Internal Ports

  • 1 x USB 3.0 (optional)

Rear Ports

  • 1 x USB 2.0
  • 1 x USB 3.0
  • 1 x Serial (optional)
  • 1 x dedicated iDRAC Ethernet Port
  • 1 x VGA

OS COMPATIBILITY

  • Canonical Ubuntu Server LTS
  • Microsoft Windows Server with Hyper-V
  • Red Hat Enterprise Linux
  • VMware ESXi
  • SUSE Linux Enterprise Server

POWER SUPPLY

  • 1800 W Titanium 200—240 VAC or 240 HVDC
  • 1400 W Platinum 100—240 VAC or 240 HVDC
  • 1100 W Titanium 100—240 VAC or 240 HVDC
  • 1100 W LVDC -48 — (-60) VDC
  • 800 W Platinum 100—240 VAC or 240 HVDC
  • 700 W Titanium 200—240 VAC or 240 HVDC
  • 600 W Platinum 100—240 VAC or 240 HVDC

COOLING OPTIONS

  • Standard (STD) fans/High performance Silver (HPR) fans/ High performance Gold (VHP) fans
  • Up to 6 hot swappable fans
  • Air cooling

MANAGEMENT

  • iDRAC9
  • iDRAC Service Module
  • iDRAC Direct
  • iDRAC RESTful API with Redfish
  • Quick Sync 2 wireless module

OPENMANAGE

  • CloudIQ for PowerEdge plug in
  • OpenManage Enterprise
  • OpenManage Enterprise Integration for VMware vCenter
  • OpenManage Integration for Microsoft System Center
  • OpenManage Integration with Windows Admin Center
  • OpenManage Power Manager Plugin
  • OpenManage Service Plugin
  • OpenManage Update Manager Plugin

SECURITY

  • Cryptographically signed firmware
  • Data at Rest Encryption (SEDs with local or external key mgmt)
  • Secure Boot Secure Erase
  • Secured Component Verification (Hardware integrity check)
  • Silicon Root of Trust
  • System Lockdown(requires iDRAC9 Enterprise or Datacenter)
  • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

CHASSIS

  • Height – 86.8 mm (3.41 inches)
  • Width – 482 mm (18.97 inches)
  • Depth – 721.62 mm (28.4 inches) with bezel
  • Depth – 707.78 mm (27.85 inches) without bezel
