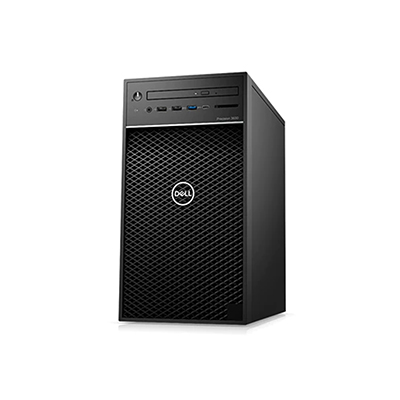

Dell Precision 3630 E-2124G

Feature Precision 3630 Tower Technical Specifications

Processor Options: 9th generation Intel® Core® i9K, i9, i7K, i7;

Intel® Xeon® E Processors, , 8th generation Intel® CoreTM i7, i5 and i3

Intel Turbo Boost Technology and Intel Integrated HD Graphics on select Processors;

optional vPro™ Technology (coming soon)

Operating System Options:

Windows® 10 Professional (64 bit)

Windows® 10 Pro for Workstations (64 bit) w/ Intel Xeon processors

Windows® 10 Home (64 bit)

Red Hat® Enterprise Linux® 7.5

Red Hat® Enterprise Linux® 8.0 (coming soon)

Ubuntu Linux 16.04

NeoKylin 6.0 SP3 (China only)

Chipset Intel: C246 Chipset

Memory Options: 4 Dimm Slots; Up to 128GB 2666Mhz Non-ECC & ECC DDR4 Memory

Graphics Options: One PCI Express® x16 Gen 3 Graphics card up to 265W RTX5000 is the highest single card (Total for Graphics)

(Some cards available in Dual Config)

Mid-range 3D cards:

AMD Radeon Pro WX 7100

AMD Radeon Pro WX 5100 & Dual WX 5100

AMD Radeon Pro WX 4100 & Dual WX 4100

NVIDIA Quadro RTX4000 for both single and dual

NVIDIA Quadro P5000 (RTX 5000 coming soon)

NVIDIA P2200 & Dual P2200

NVIDIA Quadro P2000 & Dual P2000

Entry 3D cards:

AMD Radeon Pro WX 3100 & Dual WX 3100 (WX 3200 coming soon)

AMD Radeon Pro WX 2100 & Dual WX 2100

NVIDIA Quadro P1000 & Dual P1000

NVIDIA Quadro P620 & Dual P620

NVIDIA Quadro P400 & Dual P400

Professional 2D cards: Intel HD Graphics 630

Consumer Graphics: AMD Radeon RX 580

Storage Options4 Support for up to (1) M.2 PCIe SSD on motherboard slot and Up to (3) 3.5” SATA or (4) 2.5” SATA.

Support for Intel Ready Mode technology

Support for up to (1) additional PCIe SSD on Dell Precision Ultra-Speed drive (x8) with active cooling

M.2 PCIe SSD (NVMe)

Up to (1) 2TB on M/B

Up to (1) 2TB on Dell Precision Ultra-Speed drive

2.5” SATA SSD Up to (4) 1TB , 2.5” SATA 7200 RPM

Up to (4) 1TB 7200 RPM

3.5” SATA Up to (3) 4TB 5400 RPM, Up to (3) 8TB 7200 RPM

Self Encrypting Drives

500GB 2.5” 7200 RPM

512GB M.2 NVMe SSD

512 GB 2.5” SSD

Power Supply: 300W 90% efficient PSU (80PLUS Gold Certified Certified) Energy Star compliant;

460W 90% efficient PSU (80PLUS Gold Certified Certified) Energy Star compliant; 850W 90% efficient

PSU (80PLUS Gold Certified)

Storage devices Optional:

1 optical drive: DVD-ROM; DVD+/-RW, Blu Ray Writer

(Note: optical drive not available with Smart Card Reader (CAC/PIV))

SD Card Reader

Warranty & Support

Services: 3-Year Limited Hardware Warranty and 3-year NBD On-Site Service after Remote Diagnosis

Optional: Dell ProSupport is designed to rapidly respond to your business’s needs, help protect your investment

and sensitive data and provide enhanced proactive support services to help reduce risk and complexity within your IT environment
