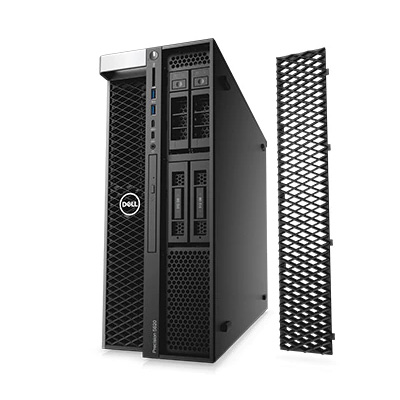

Dell Precision 5820 W-2223

Performance

Chipset Intel X299

CPU Socket LGA 2066 (R4)

CPU 3.6 GHz Intel Xeon W-2123 Quad-Core

Maximum Boost Speed 3.9 GHz

L3 Cache 8.25 MB

Memory Type 2666 MHz DDR4

Total Installed Memory 16 GB

Memory Configuration 2 x 8 GB (User-Replaceable)

Maximum Memory Capacity 256 GB

Memory Slot Type 288-Pin DIMM

Memory Slots 8 (6 Available)

Buffered Memory Yes (RDIMM)

ECC Memory Yes

Graphics Type Dedicated

GPU NVIDIA Quadro P4000 with 8 GB GDDR5 VRAM

Storage and Expansion

Total Installed Capacity 1.512 TB

Solid State Storage 1 x 512 GB 2.5" SATA

Hard Disk Storage 1 x 1 TB 3.5" SATA (7200 rpm)

PCI Expansion 2 x PCIe 3.0 x16 [x16 Mechanical]

1 x PCIe 3.0 x16 [x8 Mechanical]

1 x PCIe 3.0 x16 [x4 Mechanical]

1 x PCIe 3.0 x16 [x1 Mechanical]

1 x PCI

Optical Drive 16x-Speed Tray-Load SuperMulti DVD Burner with Dual Layer Support

I/O Ports 8 x USB Type-A (USB 3.1 / USB 3.2 Gen 1)

2 x PS/2 ,1 x DE-9/DB-9 (Serial)

USB Type-C Ports   2 x USB 3.1 / USB 3.2 Gen 1

Display 4 x DisplayPort 1.4 Output

Audio 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output

1 x 1/8" / 3.5 mm Microphone/Line Input

1 x 1/8" / 3.5 mm Line Output

Built-In Speakers None

Built-In Microphones None

Communications

Ethernet 1 x RJ45 (Gigabit)

Wi-Fi  None

Bluetooth None

Keyboard & Mouse

Keyboard 104-Key USB Full-Size Keyboard with Number Pad

Pointing Device TouchPad

General

Security Accepts 3rd Party Security Lock Devices

Power Supply 950 W

AC Input Power 100 to 240 VAC, 50 / 60 Hz

Operating Temperature 41 to 95°F / 5 to 35°C

Operating Humidity 8 to 85%

Dimensions   19.1 x 16.3 x 6.8" / 485.14 x 414.02 x 172.72 mm

Weight 32 lb / 14.51 kg

Warranty Length Limited 3-Year Warranty

Packaging Info: Package Weight 43.4 lb

Box Dimensions (LxWxH) 26.5 x 24 x 11.5"
