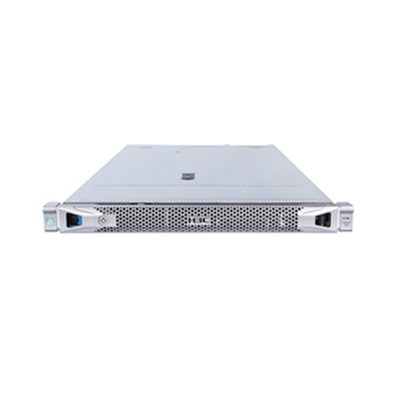

R2700 G3 server is an ideal choice for data center with limitation of space, which balances the workload between performance, effectiveness, and density.
Medium-sized Data Centre–Loading for medium-sized enterprises and cloud service providers data centre
IT Infrastructure – Basic IT applications for SMEs
Distributed Computing - Cloud and big data applications in distributed environment
Virtualized applications - Medium density virtual machine deployment
To support your heterogeneous IT environment, R2700 G3 server supports Microsoft® Windows® and Linux operating systems, as well as VMware and H3C CAS environments.
|
CPU |
Up to 2 Intel® Xeon® Processor Scalable Family, 4/6/8/10/12/14/16/20 Cores, Maximum Support Power of 125W |
|
Memory |
Up to 16 DDR4 memory, Maximum support 2666MT/s, support RDIMM or LRDIMM, maximum capacity of 2TB |
|
Storage Controller |
Standard Array controller support SATA RAID 0/1/10/5 Optional HBA card on Array card Slot, Support SATA/SAS RAID 0/1/10/5 Optional Array cards on Array card-specific slot, Support RAID0/1/10/5/6/50/60/1E Optional standard PCIe 3.0 HBA and Smart Array card |
|
FBWC |
Support up to 2GB 72-bit wide bus DDR3-1600MHz cache |
|
Local Storage |
Maximum support 4LFF front mounted drive and 2SFF rear mounted drive; Maximum support 10 SFF front mounted and 2SFF rear mounted drive; Support SAS/SATA HDD/SSD hard drive Support 4 Front NVMe hard drive Support SATA M.2 options |
|
Network |
Embedded 1Gbps management network port Optional 4 × 1GE electrical ports options through mLOM Optional standard PCIe 3.0 network adapter options |
|
Slot Expansion |
4 PCIe 3.0 slots (2 standard slots, 1 Array card slot, 1 network card slot) |
|
Ports |
Optional front VGA, standard rear VGA, serial port; 4 USB 3.0 (2 Rear, 2 Built-in); optional 2 MicroSD |
|
GPU Support |
Support 2 Single Wide GPU options |
|
CD-ROM Drive |
Support external / Built-in (4 LFF/8 SFF models only) |
|
Management |
HDM agentless management tools (with independent management port) and H3C FIST management software |
|
Power &Cooling |
Optional Platinum Level 550W/800W/1200W 1+1 redundant power supply Optional Titanium Level 800W Optional Platinum Level 800W 336VHDC Support hot-swappable redundant fans |
|
Certification |
Support CCC, CECP, SEPA Certification |
|
Temperature |
5℃～45℃ (Operating temperature is subjected to change with different configuration effects. Please refer to product technical documentation description for more details) |
|
Shape / Chassis Depth |
42.88mm (H) * 434.59mm (W) * 768.3mm (D) (without safety panel) 42.88mm (H) * 434.59mm (W) * 780.02mm (D) (including safety panel) |
|
Warranty |
3 Years Next Business Day Warranty |
