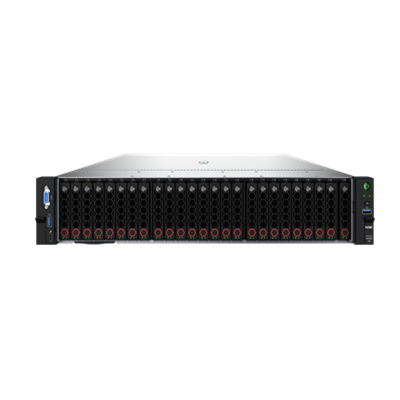

H3C UniServer R4950 G6 Server

CPU

2 AMD EPYC 9004 series processors

96 Cores for each Processor and 400W power consumption

Memory

24 DDR5 RDIMM or 3DS RDIMM Slots, 4800 MT/s Data Rate,3 TB on 2 CPU Configuration

CXL1.1

Raid Controller

Dedicated PCIe HBA Controller or Raid Controller*

Standard PCIe HBA Controller or Raid Controller*

FBWC

8 GB Cache, support Supercapacitor protection*

Storage

41 Drives

SAS/SATA HDD/SSD Drives,28 U.2 NVMe Drives, 28 E3.S Drives,40 E1.S Drives

SATA/NVMe M.2 Kit, 2 DSD Model

Front 12LFF bays, internal 4LFF bays, Rear 4LFF bays*

Front 25SFF bays, internal 8SFF bays, Rear 8SFF bays*

Network

1 Onboard 1Gbps Management Network Port

2 Onboard OCP 3.0 Slots+1 Optional OCP 3.0 Slot for 4 GE or 2 10GE or 2 25GE or 2 100GE NICs

PCIe Standard Slots for 1/10/25/100/200GE Ethernet Adapter

Expansion Slots

10 PCIe5.0 Standard Slots

Ports

Standard:1 VGA Rear Port, 4 USB 3.0 Ports (1 Front, 2 Rear, 1 Internal),1 Management Port

Optional: 1 Rear Management Port, Mounting Bracket Kit with Type-C port, 1 VGA port, 1USB port, 1 Management Port

GPU

10 Single-Slot or 4 Dual-Slot GPU Modules

Optical Drive

External Optical Disk Drive, Optional

Management

HDM Management System (with dedicated management port)

H3C iFIST/FIST, LCD touchable model,64M Video Cache

Security

Intelligent Front Security Bezel *

Chassis Intrusion Detection

TPM2.0

AMD Secure Processor(Root of Trust)

Power supply

Platinum 1300W/1600W/2000W/2400W (1+1 redundancy)

Hot swappable Redundant Fans

Standards

CE，UL , FCC，VCCI，CB, etc.

Operating temperature

5°C to 45°C (41°F to 113°F) *

Dimensions (H × W × D)

2U Height

Without a security bezel: 87.5 x 445.4 x 780 mm (3.44 x 17.54 x 30.7 in)

With a security bezel: 87.5 x 445.4 x 808 mm (3.44 x 17.54 x 31.8 in)
