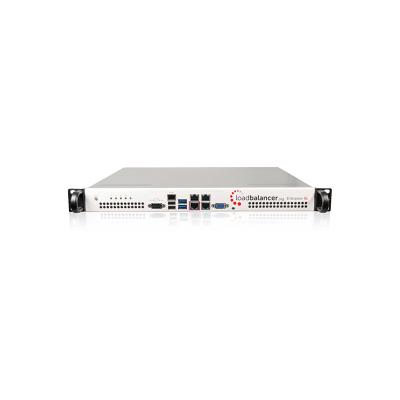

Enterprise 1G
The Load Balancer Enterprise ADC is our entry-level solution delivering exceptional performance across a wide range of critical applications. Fully featured with a WAF and GSLB as standard, the Enterprise 1G is an ideal solution for organizations of all sizes.
Product Overview
The entry-level solution for small application workloads to get you started.
Hardware platform
- 4 x 1Gbps full duplex ethernet ports
- 240GB SSD storage
- 8GB DDR RAM
- Quad Core Intel Xeon E3-1230v6 3.40GHz
- IPMI port as standard (remote boot and console)
- Local console access via VGA,USB, Serial & IPMI
- Remote console access via SSH & IPMI
- CE/FCC Certified, UL Listed, RoHS Compliant
- 200W ATX power supply
- Total BTU Heat Output: 1075
Standard Features
- Server Load Balancing (SLB) for any TCP or UDP based protocol
- SSL Acceleration/Offload
- Layer 7 Content Switching
- No bandwidth, performance or feature limitations
- High performance Direct Routing, TUN, NAT and SNAT
- Schedulers: Round Robin, Least Connection, Weighted Least Connection, Weighted Round Robin
- Dynamic Schedulers: Windows and Linux feedback agents, Custom HTTP feedback option
- Load balance almost ANY protocol i.e. HTTP, HTTPS, SMTP, POP3, IMAP, Terminal Server, etc.
- Support for Direct Server Return (DSR) configurations
- Configurable S-NAT support
- Link aggregation (802.3ad)
- VLAN Tagging (802.1Q)
- GSLB
SSL
- PCI-ready SSL Implementation
- Unlimited support for SSL Certificates
- Support for Third Party Certificates
- Automated SSL Certificate Chaining
- SSL Certificate Signing Request (CSR) Generation
- PFX upload and conversion
- Proxy protocol support
Performance
- Up to 4Gbps Throughput
- SSL Acceleration/Offload up to 10,306 TPS
- 252,684 HTTP RPS
- 15,600,000 Concurrent sessions
L4/L7 sticky persistence
- Connection persistence based on
- Source IP address
- SSL Session ID
- Passive Cookie
- Active Cookie (Insert)
- RDP Cookie/Session Broker
- X-forwarded for header
- Port following (Persistence on multiple combined ports)
- Multiple fallback options i.e. use source IP if no cookie found
Security functionality
- Fully integrated WAF (Web Application Firewall)
- OWASP top 10 protection
- Persistent Access Control List system
- Firewall filtering (full iptables scripting support)
- Firewall lock down wizard
- DDOS mitigation both at layer 4 and 7
- Virtual patching
- HTTP and SYN Flood protection
- Block SQL Injection Attacks
- Prevent Cross Site Scripting (XSS)
- FIPS 140-2 Compliant
- PCI DSS Ready
- Reverse proxy
Health checking and high availability
- Application health checking for DNS, FTP, HTTP, HTTPS, IMAP, NNTP and many more
- ICMP health checking of server farm machines
- External Health Check scripts can be edited and managed using WebUI across L4/L7 and GSLB
- Automatic reconfiguration for defective real server machines
- Automatically remove a failed server from the load balancing pool
- Automatic replication of static and dynamic configuration from master to slave load balancer
- Stateful Failover (persistence table replication)
- One click secure clustered pair configuration
Scheduling and balancing methods
- Round Robin
- Weighted Round Robin
- Least Connection
- Weighted Least Connection
- Agent-based Adaptive (Windows and Linux Agents)
- Layer 7 Content Switching
- Destination Hash for transparent proxy
Administration
- Secure, SSH, HTTP and HTTPS for remote access administration
- Fully configurable using Web User Interface (WUI)
- Easy start configuration and maintenance wizards
- Extensive ACL Traffic Rules configurable using WebUI
- WebUI-based Help Assistant
- Online chat support integrated in WebUI
- Virtual Service Configurations can be edited and tuned on-the-fly
- Real time performance and availability displays
- Optionally configure console port for local administration
- Remotely scriptable Command Line Interface (LBCLI) Option
- SOAP interface to the LBCLI API
- Local and Remote syslogd support
- Selective restore of physical and Virtual Service data
- Support for Connection Draining or halting with or without persistence
- Software and Security updates available on and off-line
- WebUI Log Reporting with Tabbed Browser Support
- SNMP support for performance metrics
- Full root access to with a multitude of diagnostic tools tcpdump etc.
- Hardware Warranty:
- 3 years return-to-base included as standard
- Global Support Options:
- Standard support – Unlimited 24/7 access to our Technical Support Engineers
- Basic support – Unlimited support during business hours (9am to 5pm)
